11mm Precision Potentiometer with Plastic Slotted Flat Shaft Wh124A-1

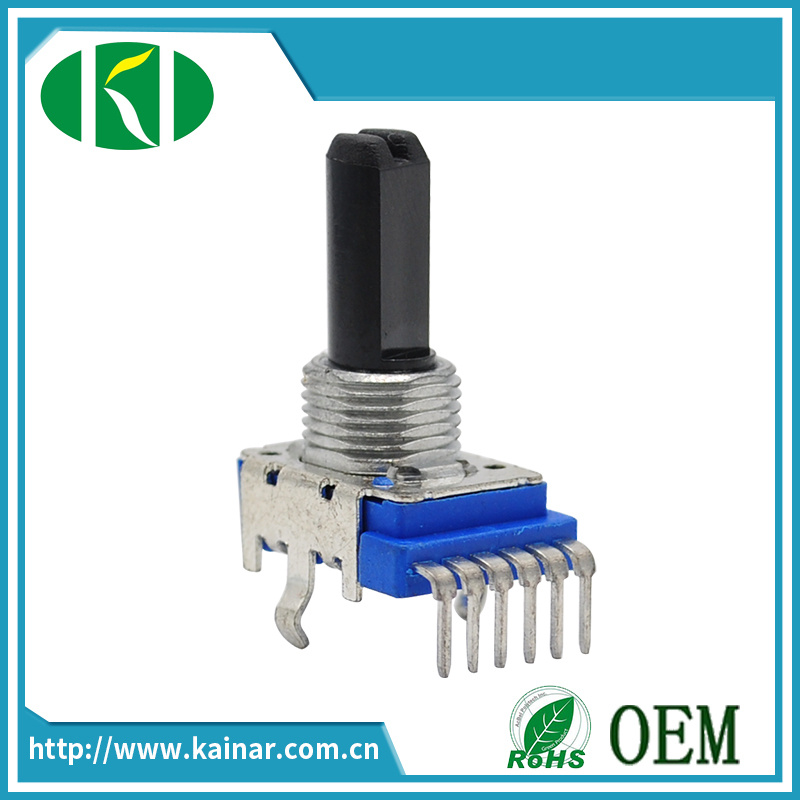

Name: 11mm Precision Potentiometer with Plastic Slotted Flat Shaft Wh124A-1
Brand: all-electronics-online.com
SKU: 816149555
Availability: InStock
Rating: 5 (49 reviews)

Price:	US $ 0.32/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WH124A-1
Tolerance Of Resistance:	±20%
Power Rating:	0.05W
Rated Volatge:	50V AC/ DC 20V
Operating Force:	20-200GF.Cm
Shaft Stop Strength:	4kgf.Cm Min
Mechanical Endurance:	10000turns
Package Type:	Carton
Application:	Other
Brand:	Kainar

Product Description

12mm rotary potentiometer with 6 pin

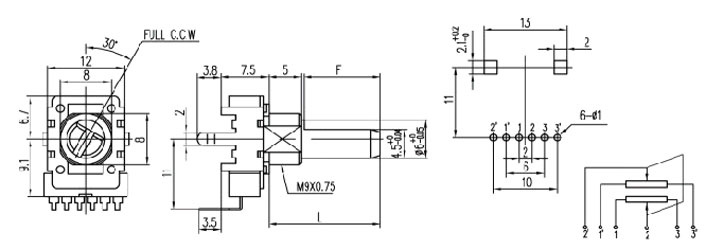

Outline Drawing

Product specifications specifications:

Mechanical specifications:
Total rotation angle:	300°±10°
Rotation torque:	2~15mN.m(20~150gf.cm)
Shaft stop strength:	4Kgf.cm
Push pull strength:	60N
Click position:	0,20 or 40 clicks
Switch operating torque:	50-200gf.cm

Electrical specifications:
Total resistance:	1KΩ~500KΩ
Resistance taper:	A,B,C
Resistance tolerance:	±20% or ±10%
Rotational noise:	≤47mV
Residual resistance:	R≥250KΩ 0.1% max.of totalresistance 250KΩ>R>10KΩ 20Ω max. 10KΩ≥R 10Ω max.
Rotary toque:	20-150gf.cm
Rated wattage:	Curve B:0.08W Other than B:0.04W
Tracking error:	0~-40dB≤±3dB
Dielectric:	AC500V,1 minute
Insulation resistance:	≥50MΩ at DC500V
Operating Temperature:	-10 ~ 60ºC
Durability:
Rotary life:	10,000cycles

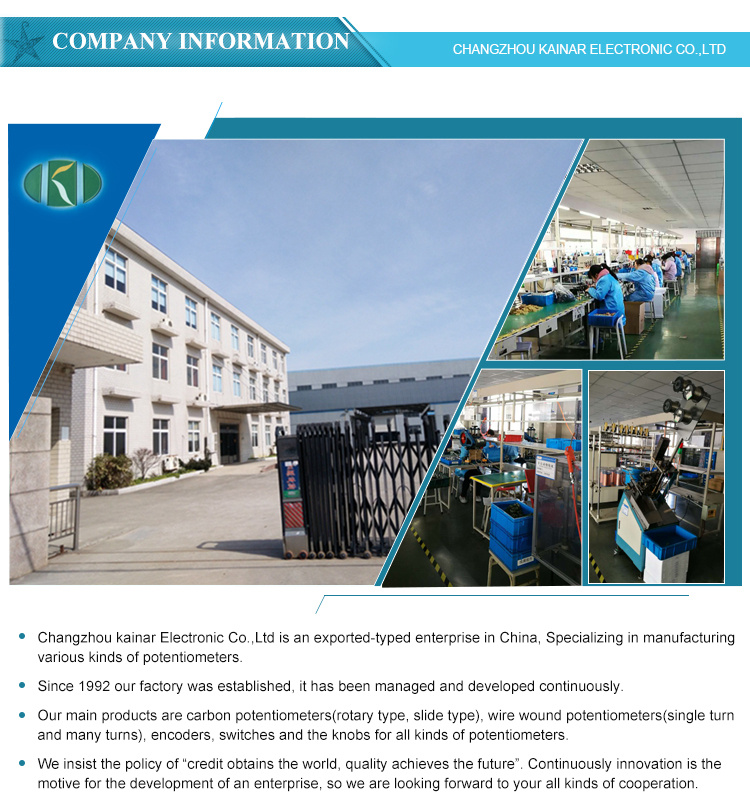

Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
