9mm Variable Resistor with Switch for for Lamps and Lanterns

Name: 9mm Variable Resistor with Switch for for Lamps and Lanterns
Brand: all-electronics-online.com
SKU: 823362445
Availability: InStock
Rating: 4.6 (26 reviews)

Price:	US $ 0.14-0.28/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

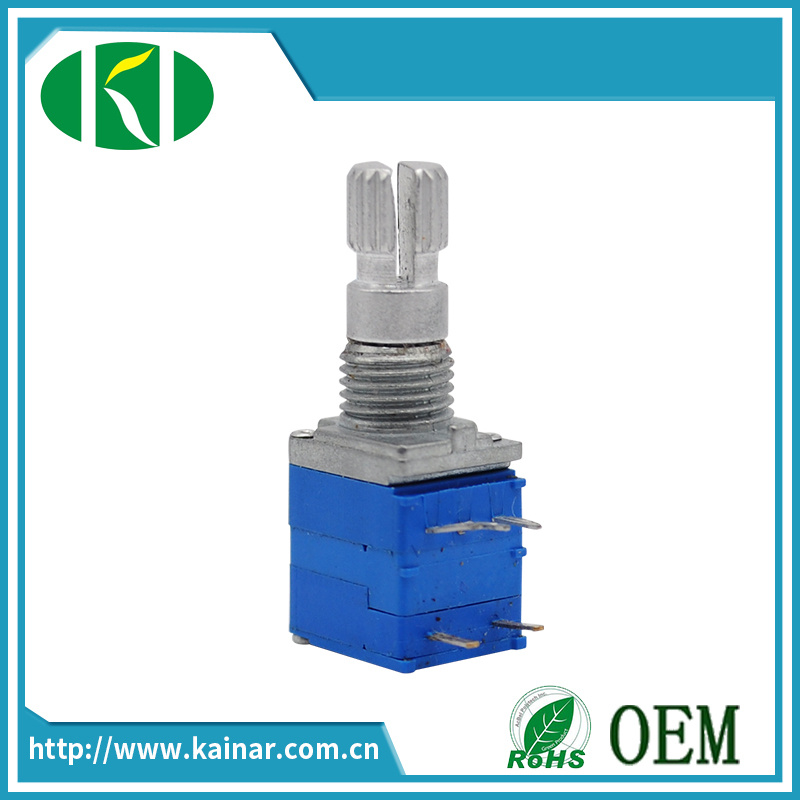

Prod Model:	WH9011AK-1
Resistance Range:	5-250kohm
Rated Voltage:	50V AC
Power Rating:	0.05W
Switch Life:	10000turn Min
Tolerance Of Resistance:	±20%
Total Rotation Angle:	300±5º
Operating Force:	50-250GF.Cm
Rotational Noise:	≤68mv
Switch Rating:	DC16V 1A
Termlnal Resistance:	10ohm Max
Resistance:	Variable Resistor
Material:	Carbon Film Resistor
Type:	Rotary Potentiometer
Function For Resistance:	Variable Resistor
Installation:	Other
Package Type:	Carton
Quantity:	Customized
Shape:	Picture
Application:	Dimmer Control
Brand:	Kn

Product Description

ELECTRICAL CHARACTERISTICS

Item	Item	Specification
1.1	Resistance value and tolerance of resistance	A10K±20%
1.2	Load power	0.05 W
1.3	Rotational noise	47mV max
1.4	Insulation Resistance	>100MΩ At 300V DC
1.5	Withstanding Voltage	>1Minute At 250V AC
1.6	Max rated voltage	50V AC
1.7	Tracking error
1.8	Residual resistance	R1,2<10Ω; R2,3<10Ω
1.9	Switch contact resistance	0.05Ω
1.10	Switch power	DC16V1A

MECHANICAL CHARACTERISTICS

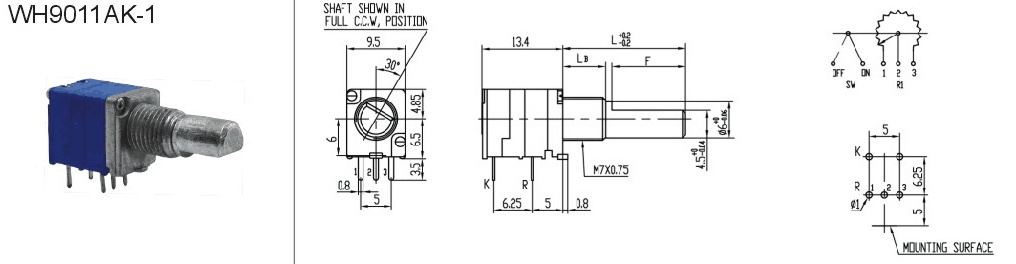

2.1	Dimensions	Refer to the separate product drawing
2.2	Total rotation angle	300±5°
2.3	Rotational Torque	20~200gf.cm
2.4	Switch working angle	≤50°
2.5	Switch torque	50~300gf.cm
2.6	Shaft Push Pull Strength	≥4kgf
2.7	Click slip-out force
2.8	Shaft Wobble (mm p-p)	≤0.3mm
2.9	Shaft Stop Strength	>5kg.cm

DURABILITY CHARACTERISTICS

3.1	Rotating life	10,000 cycles
3.2	Storage Temperature Range	-30ºC~+80ºC
3.3	Operation Temperature Range	-20ºC~+70ºC
3.4	Soldering Heat Characteristic	260°C/2.5±0.5S

Related Products

Company cullture

Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
