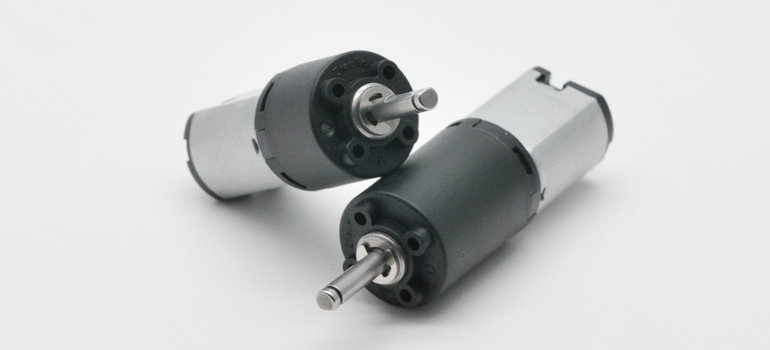

16mm 6V Low Power Metal Shaft Small Gear Motor

Name: 16mm 6V Low Power Metal Shaft Small Gear Motor
Brand: all-electronics-online.com
SKU: 788103885
Availability: InStock
Rating: 4.9 (111 reviews)

Price:	US $ 4.5-6/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

16mm 6V Low Power Metal Shaft Small Gear Motor

Product Description:

Can be customized
Voltage scope: 1.5 to 6V
Rating voltage: 6V
No-loading:
Speed: 107rpm
Current: 120mA(Max)
On-loading:
Speed: 86rpm
Current: 200mA(Max)
Torque: 108gf.cm
Output: 0.3W
Gear Box Length: 19.4mm
Output power: 0.01 to 0.8W
Gear ratio: 96:1

We also have the following items:

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length L1
	Rated	At No Load		At Rated Load				Overall Length L
	Voltage	Speed	Current	Speed	Current	Torque		Overall Length L
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWPD016016-16	6.0	643	110	515	200	41	4.0	33.8	1500	5000	16	15.1
ZWPD016016-24	6.0	429	110	343	200	61	6.0		1500	5000	24
ZWPD016016-36	6.0	286	110	229	200	92	9.0		1000	4000	36
ZWPD016016-64	6.0	161	120	129	200	108	10.6	38.1	1500	5000	64	19.4
ZWPD016016-96	6.0	107	120	86	200	162	15.9		1500	5000	96
ZWPD016016-144	6.0	71	120	57	200	243	23.8		1500	5000	144
ZWPD016016-216	6.0	48	120	38	200	365	35.7		1000	4000	216
ZWPD016016-256	6.0	39	120	31	200	324	31.8	42.4	1500	5000	256	23.7
ZWPD016016-384	6.0	26	120	21	200	486	48		1500	5000	384
ZWPD016016-576	6.0	17	120	14	200	729	71		1500	5000	576

above specifications just for reference and customizable according to requirements.

2D Drawing:

Application

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipments	OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models	radio control model, automatic cruise control, ride-on toy and etc.
Medical equipments	blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials	display, flow control valves and etc.
Electric power tools	electric drill, screwdriver and etc.
Precision instruments	monitor, optics instruments,automatic vending machine and etc.
cosmetic tool	eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.

Product details show:

Our Services

ODM & OEM
Gearbox design and development
Related technology support

Packaging & Shipping

1) Packing Details

packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.

2) Shipping Details

samples will be shipped within 10 days;

batch order leading time according to the actual situation.

Company Information

Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.

1) Competitive Advantages

18-year experience in manufacturing motor gearbox
Experienced Staff: average 7-year experience in R&D , ODM &OEM
International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 15 working days after payment
Small Orders Accepted
Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.

2) Main Products

Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm;
Customized worm and gear transmission machinery;
Precise electromechanical motion module;
Precise component and assembly of plastic and metal powder injection.

Certifications

We Have passed to hold ISO9001, ISO14001 and TS16949.
and more...

FAQ

1. Can you make the gearbox with custom specifications?

YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5. Do you provide technology support?

YES. Our company have strong R&D capability, we can provide technology support if you need.

6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.

10. How do contact us ?

Please send an inquiry .

Prod Model:	ZWPD016016-96
Diameter:	16mm
Voltage:	6V
Power Output:	0.3W or Customized
No Load Speed:	107 Rpm
No Load Current:	120 Ma(Max)
Load Speed:	86 Rpm
Load Current:	200 Ma(Max)
Load Torque:	162 Gf.Cm
Gear Ratio:	96:1
Motor Type:	Small Gear Motor
Application:	Electrical Curtain
Operating Speed:	Low Speed
Excitation Mode:	Permanent Magnet
Casing Protection:	Drip-Proof
Structure And Working Principle:	Brush/Brushless
Type:	Gearbox Motor
Certification:	RoHS
Brand:	Zhaowei

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 1997, which is State High-Tech enterprise for gear transmission design and manufacturing. We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.

Main Products

The products are widely used in Automobile, industry equipment, Smart Home, Medical device, standard gearbox etc.

ZHAOWEI has 165 Sumitomo injection machines and 35 automatic production lines. Most of machines come from overseas such as AGIE wire cutting machine, AGIE EDM, MAKINO, FANUC, RODERS CNC. The company focus on three divisions "components manufacturing center", "precise tooling" and "Transmission Module" with more than 1000 employee.

ZHAOWEI specialized in precise injection components and precise transmission system with the quality certification ISO9001, TS 16949 and has been awarded with "State High-Tech Enterprise" in 2013. The company pay more attention on R & D and got more than 40 patents. 4G antenna E-tilt mechanism, Smart Home Device, Intelligent robot drive module self-developed reached the international technical level. ZHAOWEI has established the long term Strategy partnership with HUAWEI, BOSCH, etc. New Plant project has been started in Huizhou City that will helpful to foster ZHAOWEI business and meet the globalization development needs.
