Hangzhou Xingfa Transmission Equipment Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.
1.Product Construction (RG6 coaxial cable):
1) Center Conductor:18AWG 1.024mm Bare copper, 21% CCS
2) Foil Shield: Un-bonded, Bonded, Double bonded, double un-bonded Aluminum Foil, Copper foil, are Available
3) Braiding Shield:Al,BC,TC,CCA,CCS Available
Wire Diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm Available
Braid form: 16x2/3/4/5/6/7/8/9/10/11/12, 24x2/3/4/5/6/7/8 Available
Coverage: Between 30-98%
4) Jelly APD optional per requriments.
5) PVC Jacket: UV, Flame retardant, LSZH, LSLH Available
6)Electrical characteristics:
Attenuation |
[@68o F. (20o C.)] |
Frequency (MHz) |
Maximum (dB/100 ft.) |
Maximum (dB/100 m) |
5 |
0.58 |
1.9 |
50 |
1.5 |
4.9 |
100 |
2.0 |
6.5 |
200 |
2.8 |
9.2 |
400 |
4.1 |
13.6 |
700 |
5.6 |
18.4 |
900 |
6.2 |
20.3 |
1000 |
6.5 |
21.4 |
1450 |
8.0 |
26.2 |
1800 |
8.5 |
27.9 |
2100 |
9.5 |
31.1 |
2250 |
10.0 |
34.0 |
3000 |
11.4 |
37.5
|
Examples:
1) RG6 Coaxial Cable 75ohm Dual / Standard shield
1.02±0.01mm CCS Conductor+4.57±0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.90±0.05mm PVC Jacket
2) RG6 Coaxial Cable 75ohm Tri Shielded
1.02±0.01mm CCS Conductor+4.57±0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+Al Foil+6.9mm PVC Jacket
3) RG6 Coaxial Cable 75ohm Quad Shield
1.02±0.01mm CCS Conductor+4.57±0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Double Al Foil+ Al Wire braiding +7.5mm PVC Jacket
4) RG6 Coaxial Cable 75ohm With Messenger
1.02±0.01mm CCS Conductor+4.57±0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.90±0.05mm PVC Jacket+1.30+0.05mm Messenger
5)OEM
We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.
Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

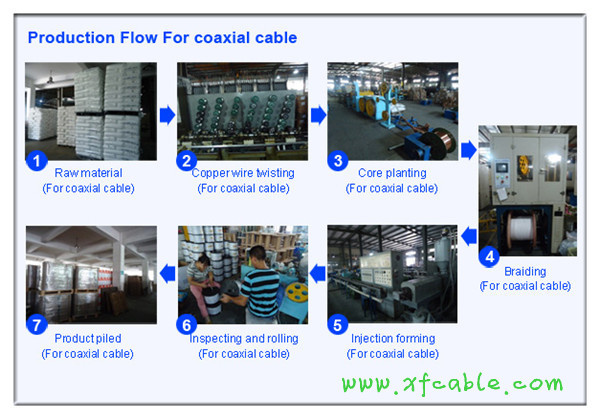

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.
We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.
Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.
"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
