2015 High Quality Best Price 50 Ohm Rg58 CCTV Cable (RG58A/U, RG58 C/U, RG58/U)
| Price: |
US $ 0.05-0.08/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
We are pioneer cable manufacturer with more than 15 years experience in communications cable,supplying all kinds of elecommunication cables: UTP/FTP Cat5, Cat5e, Cat6 cable, different kinds of coaxial cable:RG59,RG6,RG11 etc. with high quality, competitive price, prompt delivery. 1.Product Description

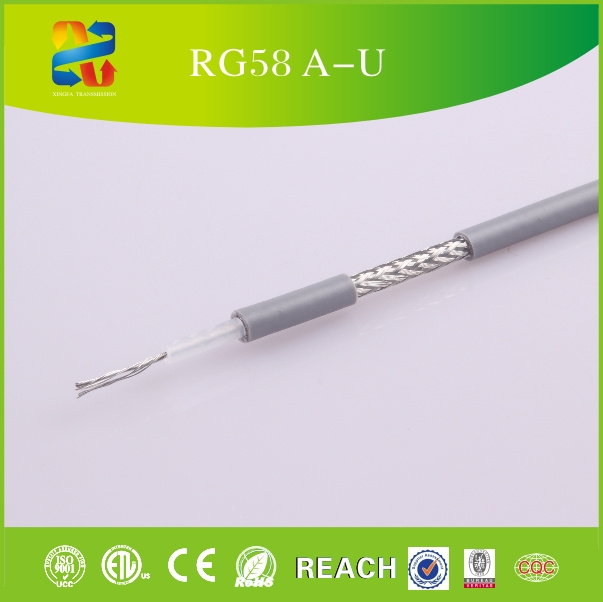

BASIC CONSTRUCTION
|
| RG58/U | RG58 A/U | RG58 C/U |
| CONDUCTOR | MATERIAL | BC/TC | BC/TC | BC/TC |
| Nom.Dia. | 19AWG | 19*0.2mm | 19*0.18mm |
| DIELECTRIC | MATERIAL | PE | PE | PE |
| Nom.Dia. | 2.95mm | 4.57mm | 4.57mm |
| SHIELD | MATERIAL | BC/TC braiding | BC/TC braiding | BC/TC braiding |
| COVERAGE | 95% | 95% | 95% |
| JACKET | MATERIAL | PVC/PE > | PVC/PE | PVC/PE |
| Nom.Thick. | 0.80mm | 0.80mm | 0.80mm |
| Nom.Dia. | 4.95mm | 4.90mm | 5.08mm |
BASIC CHARACTERISTICS
| Nominal Impedance(ohm) | 75±3 |
| Nominal Velocity of Propagation(%) | 87 |
| Nominal Capacitance(pF/m) | 55±3.0 |
| Sparker Test(VAC) | 4000 |
| SRL(dB) | 30-470 | ≥20 |
| 470-1000 | ≥18 |
| Attenuation [68°F(20ºC)] | Frequency(MHz) | Maximum(dB/100ft) | Maximum(dB/100m) |
| 50 | 2.47 | 8.1 |
| 100 | 3.81 | 12.5 |
| 150 | 4.30 | 14.1 |
| 200 | 5.00 | 16.4 |
| 400 | 6.74 | 22.1 |
| 450 | 7.50 | 24.6 |
| 500 | 7.99 | 26.2 |
| 700 | 9.24 | 30.3 |
| 800 | 9.76 | 32.0 |
| 1000 | 12.50 | 41.0 |

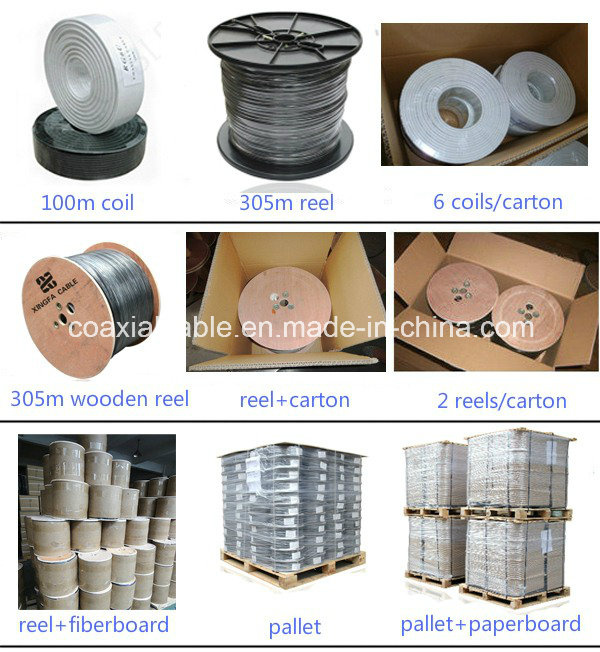

2.Packing:1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
3.About US
We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.

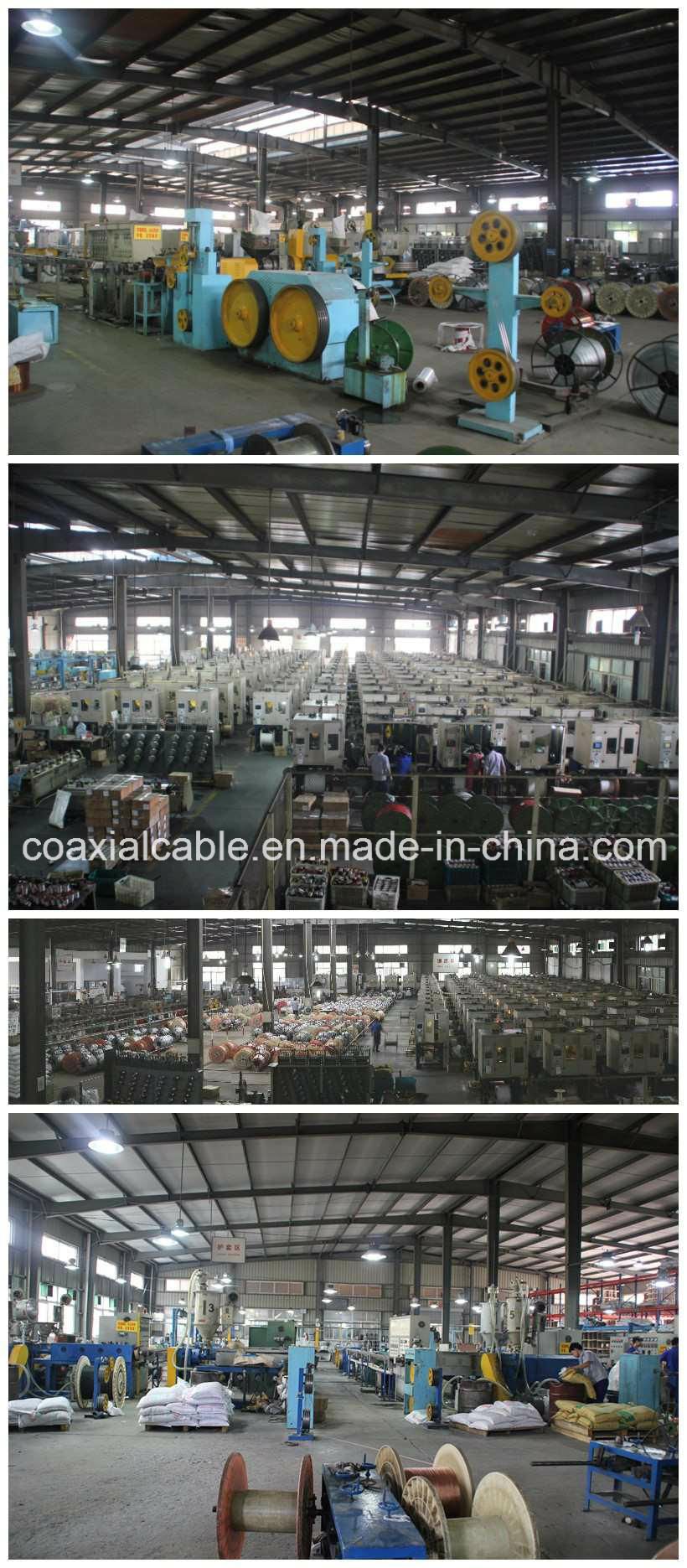

This is our factory pictures below.
| Prod Model: |
RG58C/U, RG58A/U, rg58/u |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Conductor: |
CCS, CCA, Cu |
| Braid Shied Material: |
Bc, Tc, CCA, CCS, Al-Mg(60%-95%) |
| Shield: |
Al Foil/Bonded Al Foil |
| Jacket: |
Solid PVC, Folid PVC |
| Jacket Color: |
Black or Per Customers' Special Requirement |
| Impedance: |
75 Ohm |
| Inner Packing: |
Wooden Reel, Plastic Reel, Paper Reel |
| Outer Packing: |
Carton Box, Pull out Box, Pallet |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Application: |
RF Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
UL |
| Type: |
Coaxial Cable |
| Model: |
Rg58 |
| Brand: |
Xingfa |
We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.
Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

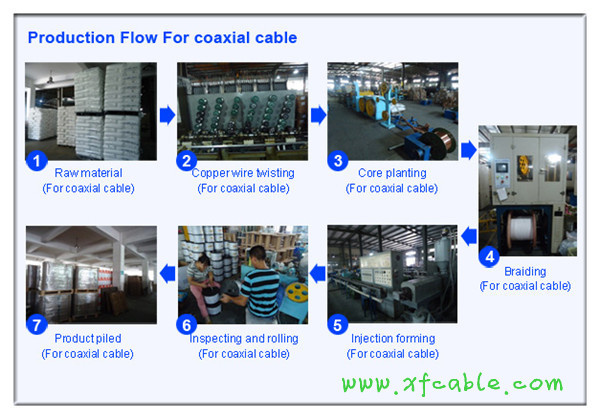

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.
We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.
Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.
"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
