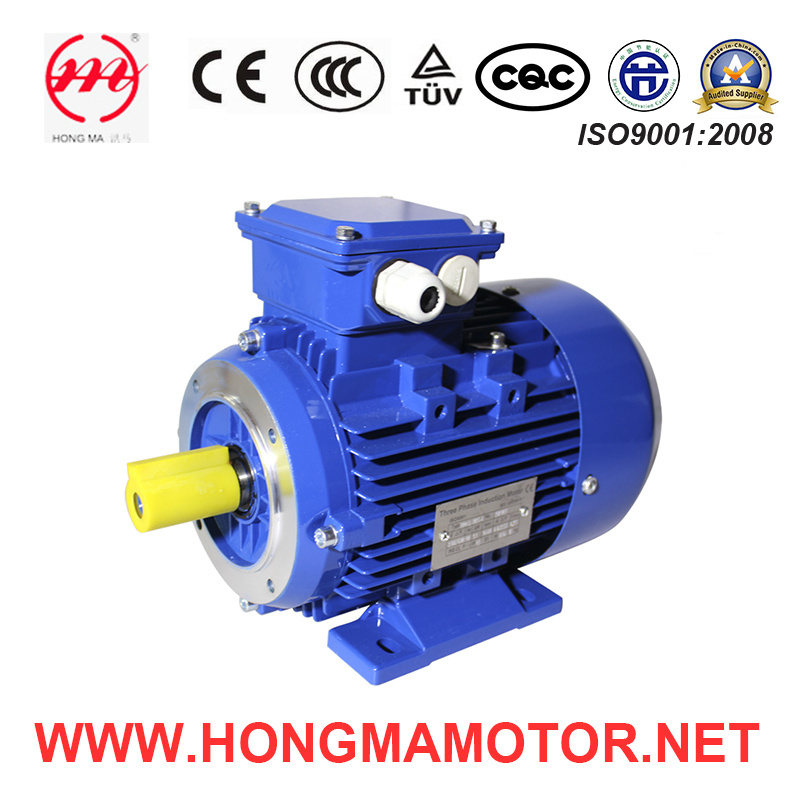

1hma-Ie1 (EFF2) Series Aluminum Housing Three Phase Asynchronous Electric Motor with 4pole-0.37kw
| Price: |
US $ 26.8/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
1HMA712-4-0.37 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Efficiency Class: |
Ie1 |
| Frame Size: |
H71 |
| Rated Power: |
0.37 |
| Protection Class: |
IP44,IP54,IP54 |
| Frequency: |
50Hz, |
| Rated Voltage: |
220/380V,380/660V,230/400 |
| Insulation Class: |
B,F,H |
| Cooling Method: |
IC411 |
| Application: |
Power Tools |
| Operating Speed: |
High Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Casing Protection: |
Protection Type |
| Starting Mode: |
Auto-induction Voltage-reduced Starting |
| Certification: |
CE |
| Brand: |
Hongma |
Product Description

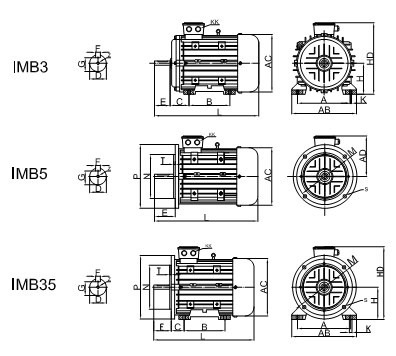

1HMA-IE1 (EFF2) Series Aluminum Housing Three Phase Asynchronous Electric Motor 1HMA-IE1 (EFF2) Series Aluminum Housing Three Phase Asynchronous Motor is the basic series of general-purpose motor with low voltage upgraded of Y series motor. The HMA Series Motors are enhanced performance motors built in light weight, all aluminum frames. 1HMA-IE1 (EFF2) Series Motors with beautiful appearance and reliable operation meet to the needs of general-purpose at domestic and overseas within the range of frame size 56 to 160. 1HMA-IE1 (EFF2) Series Electric Motor Characteristics and Advantages:Efficiency Class: IE1Frame Size: H56-160Poles: 2,4,6,8 polesRated Power: 0.09-18.5KWRated Voltage: 220/380V, 380/660V, 230/400V, 400V/690VFrequency: 50HZ, 60HZProtection Class: IP44, IP54, IP55, IP56Insulation Class: B, F, HMounting Type:B3, B5, B14, B34, B35 multi and pad mountingAmbient Temperature: -20~+40 °CAltitude: ≤1000MY series motor is totally enclosed and fan cooling, three-phase squirrel cage induction motor.It is newly desgned in conformity with the relevant rules of IEC and DIN42673 standards. Y series motors have outstanding performance, such as high efficiency, energy saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance, etc. Y series motors are widely used in many places, where do not exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc| 1HMA-IE1 Series Technical Data |
|
|
|
|
|
|
| Model | TYPE | Output_kW | η(%) | Cosφ | r/in | Current_380V | Current_400V | Current_415V | Ts/Tn | Tax/Tn | Is/In | Weight(AL) | dB(A) |
| 1HMA-IE1 | 56M1-2 | 0.09 | 62 | 0.7 | 2750 | 0.3 | 0.3 | 0.3 | 2.1 | 2.2 | 5.2 | 3.6 | 58 |
| 1HMA-IE1 | 56M2-2 | 0.12 | 67 | 0.72 | 2750 | 0.4 | 0.4 | 0.3 | 2.1 | 2.2 | 5.2 | 3.9 | 58 |
| 1HMA-IE1 | 63M1-2 | 0.18 | 65 | 0.8 | 2730 | 0.5 | 0.5 | 0.5 | 2.2 | 2.2 | 5.5 | 4.8 | 61 |
| 1HMA-IE1 | 63M2-2 | 0.25 | 68 | 0.81 | 2800 | 0.7 | 0.7 | 0.6 | 2.2 | 2.2 | 5.5 | 5.1 | 61 |
| 1HMA-IE1 | 71M1-2 | 0.37 | 70 | 0.81 | 2756 | 1.0 | 0.9 | 0.9 | 2.2 | 2.2 | 6.1 | 6 | 64 |
| 1HMA-IE1 | 71M2-2 | 0.55 | 72 | 0.82 | 2792 | 1.4 | 1.3 | 1.3 | 2.2 | 2.2 | 6.1 | 6.5 | 64 |
| 1HMA-IE1 | 80M1-2 | 0.75 | 72.1 | 0.83 | 2830 | 1.9 | 1.8 | 1.7 | 2.2 | 2.3 | 6.1 | 8.7 | 67 |
| 1HMA-IE1 | 80M2-2 | 1.1 | 75 | 0.84 | 2830 | 2.7 | 2.5 | 2.4 | 2.2 | 2.3 | 7 | 9.5 | 67 |
| 1HMA-IE1 | 90S-2 | 1.5 | 77.2 | 0.84 | 2840 | 3.5 | 3.3 | 3.2 | 2.2 | 2.3 | 7 | 11.8 | 72 |
| 1HMA-IE1 | 90L-2 | 2.2 | 79.7 | 0.85 | 2840 | 4.9 | 4.7 | 4.5 | 2.2 | 2.3 | 7 | 13.5 | 72 |
| 1HMA-IE1 | 100L-2 | 3 | 81.5 | 0.87 | 2860 | 6.4 | 6.1 | 5.9 | 2.2 | 2.3 | 7.5 | 21 | 76 |
| 1HMA-IE1 | 112M-2 | 4 | 83.1 | 0.88 | 2880 | 8.3 | 7.9 | 7.6 | 2.2 | 2.3 | 7.5 | 28 | 77 |
| 1HMA-IE1 | 132S1-2 | 5.5 | 84.7 | 0.88 | 2900 | 11.2 | 10.7 | 10.3 | 2.2 | 2.3 | 7.5 | 39 | 80 |
| 1HMA-IE1 | 132S2-2 | 7.5 | 86 | 0.88 | 2900 | 15.1 | 14.3 | 13.8 | 2.2 | 2.3 | 7.5 | 44.5 | 80 |
| 1HMA-IE1 | 160M1-2 | 11 | 87.6 | 0.89 | 2930 | 21.4 | 20.4 | 19.6 | 2.2 | 2.3 | 7.5 | 69.5 | 86 |
| 1HMA-IE1 | 160M2-2 | 15 | 88.7 | 0.89 | 2930 | 28.9 | 27.4 | 26.4 | 2.2 | 2.3 | 7.5 | 78 | 86 |
| 1HMA-IE1 | 160L-2 | 18.5 | 89.3 | 0.90 | 2930 | 35.0 | 33.2 | 32.0 | 2.2 | 2.3 | 7.5 | 88.5 | 86 |
| 1HMA-IE1 | 56M1-4 | 0.06 | 56.0 | 0.58 | 1325 | 0.3 | 0.3 | 0.3 | 2 | 2.1 | 3.9 | 3.6 | 48 |
| 1HMA-IE1 | 56M2-4 | 0.09 | 58.0 | 0.61 | 1325 | 0.4 | 0.4 | 0.4 | 2 | 2.1 | 3.9 | 3.9 | 48 |
| 1HMA-IE1 | 63M1-4 | 0.12 | 57.0 | 0.72 | 1320 | 0.4 | 0.4 | 0.4 | 2.1 | 2.2 | 4.4 | 4.8 | 52 |
| 1HMA-IE1 | 63M2-4 | 0.18 | 60.0 | 0.73 | 1320 | 0.6 | 0.6 | 0.6 | 2.1 | 2.2 | 4.4 | 5.1 | 52 |
| 1HMA-IE1 | 71M1-4 | 0.25 | 65.0 | 0.74 | 1347 | 0.8 | 0.8 | 0.7 | 2.1 | 2.2 | 5.2 | 6 | 55 |
| 1HMA-IE1 | 71M2-4 | 0.37 | 67.0 | 0.75 | 1340 | 1.1 | 1.1 | 1.0 | 2.1 | 2.2 | 5.2 | 6.3 | 55 |
| 1HMA-IE1 | 80M1-4 | 0.55 | 71.0 | 0.75 | 1390 | 1.6 | 1.5 | 1.4 | 2.4 | 2.3 | 5.2 | 9.4 | 58 |
| 1HMA-IE1 | 80M2-4 | 0.75 | 72.1 | 0.76 | 1390 | 2.1 | 2.0 | 1.9 | 2.3 | 2.3 | 6 | 10 | 58 |
| 1HMA-IE1 | 90S-4 | 1.1 | 75 | 0.77 | 1390 | 2.9 | 2.7 | 2.6 | 2.3 | 2.3 | 6 | 12 | 61 |
| 1HMA-IE1 | 90L-4 | 1.5 | 77.2 | 0.79 | 1390 | 3.7 | 3.6 | 3.4 | 2.3 | 2.3 | 6 | 14 | 61 |
| 1HMA-IE1 | 100L1-4 | 2.2 | 79.7 | 0.81 | 1410 | 5.2 | 4.9 | 4.7 | 2.3 | 2.3 | 7 | 21 | 64 |
| 1HMA-IE1 | 100L2-4 | 3 | 81.5 | 0.82 | 1410 | 6.8 | 6.5 | 6.2 | 2.3 | 2.3 | 7 | 23.5 | 64 |
| 1HMA-IE1 | 112M-4 | 4 | 83.1 | 0.82 | 1435 | 8.9 | 8.5 | 8.2 | 2.3 | 2.3 | 7 | 29.5 | 65 |
| 1HMA-IE1 | 132S-4 | 5.5 | 84.7 | 0.83 | 1440 | 11.9 | 11.3 | 10.9 | 2.3 | 2.3 | 7 | 41 | 71 |
| 1HMA-IE1 | 132M-4 | 7.5 | 86 | 0.84 | 1440 | 15.8 | 15.0 | 14.4 | 2.3 | 2.3 | 7 | 47.5 | 71 |
| 1HMA-IE1 | 160M-4 | 11 | 87.6 | 0.84 | 1460 | 22.7 | 21.6 | 20.8 | 2.2 | 2.3 | 7 | 72.5 | 75 |
| 1HMA-IE1 | 160L-4 | 15 | 88.7 | 0.85 | 1460 | 30.2 | 28.7 | 27.7 | 2.2 | 2.3 | 7.5 | 85.5 | 75 |
| 1HMA-IE1 | 71M1-6 | 0.18 | 56.0 | 0.66 | 865 | 0.7 | 0.7 | 0.7 | 1.9 | 2 | 4 | 6 | 52 |
| 1HMA-IE1 | 71M2-6 | 0.25 | 59.0 | 0.68 | 863 | 0.9 | 0.9 | 0.9 | 1.9 | 2 | 4 | 6.3 | 52 |
| 1HMA-IE1 | 80M1-6 | 0.37 | 62.0 | 0.70 | 890 | 1.3 | 1.2 | 1.2 | 1.9 | 2 | 4.7 | 8.9 | 54 |
| 1HMA-IE1 | 80M2-6 | 0.55 | 65.0 | 0.72 | 890 | 1.8 | 1.7 | 1.6 | 1.9 | 2 | 4.7 | 10.4 | 54 |
| 1HMA-IE1 | 90S-6 | 0.75 | 70 | 0.72 | 910 | 2.3 | 2.1 | 2.1 | 2 | 2.1 | 5.5 | 12.1 | 57 |
| 1HMA-IE1 | 90L-6 | 1.1 | 72.9 | 0.73 | 910 | 3.1 | 3.0 | 2.9 | 2 | 2.1 | 5.5 | 13.7 | 57 |
| 1HMA-IE1 | 100L-6 | 1.5 | 75.2 | 0.75 | 920 | 4.0 | 3.8 | 3.7 | 2 | 2.1 | 5.5 | 23 | 61 |
| 1HMA-IE1 | 112M-6 | 2.2 | 77.7 | 0.76 | 935 | 5.7 | 5.4 | 5.2 | 2 | 2.1 | 6.5 | 28.2 | 65 |
| 1HMA-IE1 | 132S-6 | 3 | 79.7 | 0.76 | 960 | 7.5 | 7.1 | 6.9 | 2.1 | 2.1 | 6.5 | 40.3 | 69 |
| 1HMA-IE1 | 132M1-6 | 4 | 81.4 | 0.76 | 960 | 9.8 | 9.3 | 9.0 | 2.1 | 2.1 | 6.5 | 43 | 69 |
| 1HMA-IE1 | 132M2-6 | 5.5 | 83.1 | 0.77 | 960 | 13.1 | 12.4 | 12.0 | 2.1 | 2.1 | 6.5 | 47.2 | 69 |
| 1HMA-IE1 | 160M-6 | 7.5 | 84.7 | 0.77 | 970 | 17.5 | 16.6 | 16.0 | 2 | 2.1 | 6.5 | 70.6 | 73 |
| 1HMA-IE1 | 160L-6 | 11 | 86.4 | 0.78 | 970 | 24.8 | 23.6 | 22.7 | 2 | 2.1 | 6.5 | 85 | 73 |
| 1HMA-IE1 | 80M1-8 | 0.18 | 51.0 | 0.61 | 630 | 0.9 | 0.8 | 0.8 | 1.8 | 1.9 | 3.3 | 9 | 52 |
| 1HMA-IE1 | 80M2-8 | 0.25 | 54.0 | 0.61 | 640 | 1.2 | 1.1 | 1.1 | 1.8 | 1.9 | 3.3 | 10.5 | 52 |
| 1HMA-IE1 | 90S-8 | 0.37 | 62.0 | 0.61 | 660 | 1.5 | 1.4 | 1.4 | 1.8 | 1.9 | 4 | 12 | 56 |
| 1HMA-IE1 | 90L-8 | 0.55 | 63.0 | 0.61 | 660 | 2.2 | 2.1 | 2.0 | 1.8 | 2 | 4 | 13.5 | 56 |
| 1HMA-IE1 | 100L1-8 | 0.75 | 71.0 | 0.67 | 690 | 2.4 | 2.3 | 2.2 | 1.8 | 2 | 4 | 23 | 59 |
| 1HMA-IE1 | 100L2-8 | 1.1 | 73.0 | 0.69 | 690 | 3.3 | 3.2 | 3.0 | 1.8 | 2 | 5 | 25 | 59 |
| 1HMA-IE1 | 112M-8 | 1.5 | 75.0 | 0.69 | 680 | 4.4 | 4.2 | 4.0 | 1.8 | 2 | 5 | 28 | 61 |
| 1HMA-IE1 | 132S-8 | 2.2 | 78.0 | 0.71 | 710 | 6.0 | 5.7 | 5.5 | 1.8 | 2 | 6 | 40 | 64 |
| 1HMA-IE1 | 132M-8 | 3 | 79.0 | 0.73 | 710 | 7.9 | 7.5 | 7.2 | 1.8 | 2 | 6 | 45 | 64 |
| 1HMA-IE1 | 160M1-8 | 4 | 81.0 | 0.73 | 720 | 10.3 | 9.8 | 9.4 | 1.9 | 2 | 6 | 68 | 68 |
| 1HMA-IE1 | 160M2-8 | 5.5 | 83.0 | 0.74 | 720 | 13.6 | 12.9 | 12.5 | 2 | 2 | 6 | 76 | 68 |
| 1HMA-IE1 | 160L-8 | 7.5 | 85.5 | 0.75 | 720 | 17.8 | 16.9 | 16.3 | 2 | 2 | 6 | 86 | 68 |
Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.
Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.
We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
