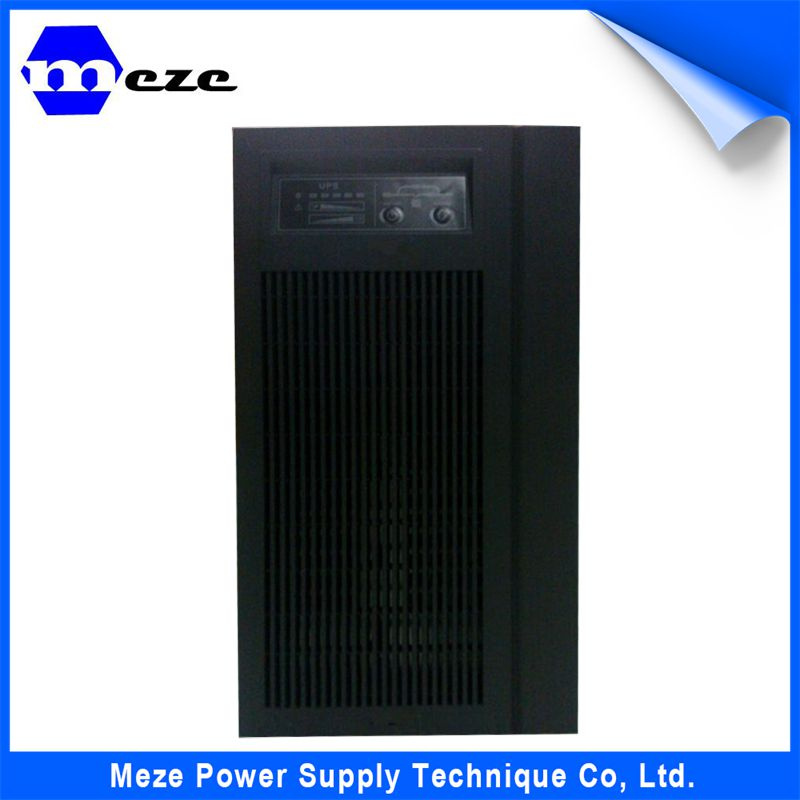

1kVA/3kVA/5kVA High Frequency Online UPS Power Supply
| Price: |
US $ 2050-2800piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
20kVA/30kVA High Frequency Online UPS, Online UPS, Three Phase UPS
The characteristics of 3C3 series Three-phase input and output High frequency on-line UPS :Adopted double conversion design, To provide a safe and reliable power supply for the following
situation: The grid without power, mains voltage too high or too low, instantaneous voltage drop or
damped oscillation, high voltage pulse, voltage fluctuation, surge voltage, harmonic distortion,
noise interference, the condition of frequency fluctuations, etc. This product is widely used in sm all
and medium sized data center, network management center, enterprise server room and general
industrial environments
N+X parallel connection redundancy : The machine has the function of parallel connection, Don't
need to increase the external accessories, Can achieve the maximum of 6 ~ 8 UPS parallel, The user can
be low cost system expands, N for load required the fewest number of UPS, X represents the number
of redundant , The greater the X system reliability will be higher, Adopts the advanced control strategy,
In weaver redundant work condition, the system can support sharing a set of batteries, save the
investment cost of users,
The intelligent battery charge and discharge management: Advanced intelligent charging ways
through the control of the CPU, according to different environmental conditions, Fixed charging
parameters, Provide the best way of charging the battery, Design a variety of charging ways, accord ing
to the type of battery, battery section number and the stat us of the battery to choose the best way of
charging. Scientific way of charging, to prolong the service life of the battery., And can be addedwith
the charging unit, make many battery back charging time is shortened greatly.
Positive and positive operation maintenance function: Give full consideration to the user space
effective utilization; Modular design and the positive maintenance, greatly shorten the troubleshoo ting
of the machine time, improve the usability of UPS.
Provide the ECO mode ,whole machine efficiency reached 93% ~ 94%, Reduce the UPS power loss;
Can adapt to bad power grid environment.Excellent input frequency range make UPS can adapt to
different power supply devices,
IGBT High frequency intelligent rectifier inverter technology, The input power factor above 0.99, T he
input current harmonic as low as 3%; The output voltage current performance is more outstanding.
Strong ability of overload: 110-125% of load can be normal operation for 10 minutes, 125-150% of load
can be normal operation for 1 minute. And it have Output short circuit protection ability.
Excellent electrical properties
| Prod Model: |
MZ3C3-10KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Load Power Factor: |
0.8(0.9optional) |
| Computer Ommunication Interface: |
RS232,(Network Remote Monitoring Software |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Application: |
Communication Center, Precision Instruments, CAD, |
| Classification: |
Emergency Equipment |
| Brand: |
Meze |
Meze company was founded in 1999, so far, has developed into a comprehensive power supply enterprise, products include: UPS uninterruptible power supply, microcomputer non-contact electronic AC regulated power supply, EPS emergency power supply, etc. Main range: The financial, government, research institutes, transportation, aerospace, electronics, medical, services, etc. To meet the global electronic and communication industry for power equipment is increasingly vigorous market demand, Due to the need of development, shenzhen Meze power technology Co., Ltd was established in 2008 (Specialize in UPS power frequency, regulated power supply, and transformer) In the same year registered Meze electronics Co., Ltd. (Terminal blocks, all accessories of PCB), In 2011, registered shenzhen Meze mechanical and electrical Co., Ltd. ( SMT placement machine and accessories ).
Existing number of employees: 180-180 employees, Using area: 3000 square meters, Company has the high technology and rich experience, Products from well-known international brands of Europe, is committed to providing customers with the full range of high quality high performance high stable power supply protection. Using the international advanced intelligent digital UPS power supply technology, and the most advanced precision purification. Provide the most advanced, cutting-edge, the most reliable, the top power solutions.
