| Prod Model: |
MZDC |
| Works As Well As The Principle: |
Uninterrupted Switch |
| Colour: |
White |
| Weight: |
6.5kg |
| Current Type: |
DC |
| Phase: |
Three Phase |
| Usage: |
DBW |
| Frequency: |
High Frequency |
| Brand: |
Meze |
| Application Range: |
Scientific Research Department Hotel Oilfield |
Product Description

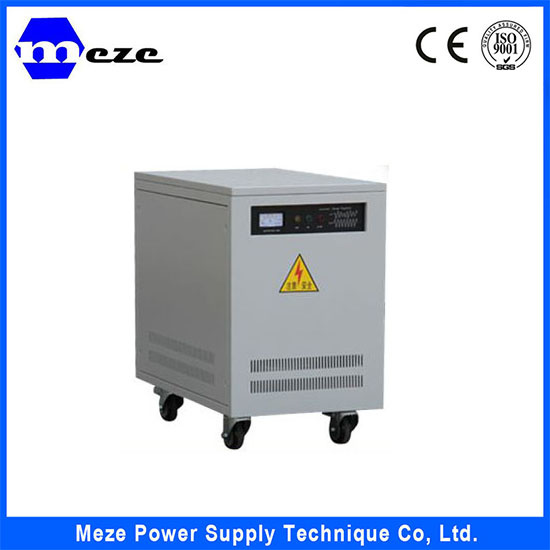

1kVA AVR/AC industrial Voltage Regulator/Stabilizer Power Supply
| Model | MZVC1005 | MZVC1010 | MZVC1015 | MZVC1020 | MZVC1030 |
| Nominal capacity | 5KVA | 10KVA | 15KVA | 20KVA | 30KVA |
| input voltage | 220V±20% |
| output voltage | 220V±3% |
| frequency | 50/60Hz |
| Voltage regulation | ≤±3% |
| overpressure | 250V±5V |
| Under voltage protection value | 183V±5V |
| waveform distorition | ≥95% |
| effciency | No additonal waveform distortion |
| The electric strength | ≤1.5s |
| insulation resistance | ≥2MΩ |
| Response time | Power frequency sine voltage 1500v lasted 1 min no breakdown or flashover phenomenon |
| temperature | -10ºC~45ºC |
| humidity | ≤95% |
| Altutide | <2000 |
| Why to work | continuous |
| Dimensen | 360x175x300 | 500x220x425 | 380x330x770 | 400x530x730 |
| Weight | 15.3 | 30.7 | 48 | 71 | 105 |
| Model | MZVC3010 | MZVC3015 | MZVC3020 | MZVC3030 | MZVC3040 | MZVC3050 |
| Capacity | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 50KVA |
| input voltage | 380V±20% |
| output voltage | 380V±3% |
| frequency | 50/60Hz |
| Stable precision | ≤±5% |
| overpressure | 250V±5V |
| Under voltage protection value | 183V±5V |
| effciency | ≥95% |
| temperature | No additonal waveform distortion |
| Response time | ≤1.5s |
| insulation | ≥2MΩ |
| dielectric strength | Power frequency sine voltage 1500v lasted 1 min no breakdown or flashover phenomenon |
| waveform distortion | -10ºC~45ºC |
| humidity | ≤95% |
| Altutide | <2000 |
| Why to work | continuous | |
| Dimensen | 350x330x690 | 380x330x770 | 400x530x730 | 485x730x1130 |
| Weight | 35 | 45 | 55 | 70 | 95 | 150 |
MZVC series high precision automatic ac regulated power supply using selected energy
saving ring transformer and first-class quality of integrated circuits and components for
production, with small volume, light weight, high efficiency and energy saving, no additional
output waveform distortion, stable and reliable performance, etc.
This series of products is mainly composed of contact type self coupling voltage regulator,
servo motor, automatic control circuit, etc.When grid voltage instability or load change,
automatic control circuit according to the change of output voltage to drive the servo motor,
adjust the contact from the carbon brush on the coupling voltage regulator, adjusted to make
the output voltage rating, reach steady state.
Areas of application: industrial and mining enterprises, hospitals, health, radio station,
hotel, scientific research institutes, computer network computer room and so on.
Load performance is good, suitable for impedance, capacitive and inductive load
Small volume, light weight, compact structure
Ring transformer structure, less leakage, low noise
USES the multi-layer structure of carbon brush, long service life, less maintenance workload
In phase with the input and output voltage, manual and automatic switching
Stepless voltage regulation, stable voltage output, does not produce waveform distortion
Can withstand the instantaneous overload shock, can work continuously for a long time
Main characteristics:
MZVC Series Product Characteristics And Application Fields
- Welcome your enquiry
Contact me :leon liang
Meze company was founded in 1999, so far, has developed into a comprehensive power supply enterprise, products include: UPS uninterruptible power supply, microcomputer non-contact electronic AC regulated power supply, EPS emergency power supply, etc. Main range: The financial, government, research institutes, transportation, aerospace, electronics, medical, services, etc. To meet the global electronic and communication industry for power equipment is increasingly vigorous market demand, Due to the need of development, shenzhen Meze power technology Co., Ltd was established in 2008 (Specialize in UPS power frequency, regulated power supply, and transformer) In the same year registered Meze electronics Co., Ltd. (Terminal blocks, all accessories of PCB), In 2011, registered shenzhen Meze mechanical and electrical Co., Ltd. ( SMT placement machine and accessories ).
Existing number of employees: 180-180 employees, Using area: 3000 square meters, Company has the high technology and rich experience, Products from well-known international brands of Europe, is committed to providing customers with the full range of high quality high performance high stable power supply protection. Using the international advanced intelligent digital UPS power supply technology, and the most advanced precision purification. Provide the most advanced, cutting-edge, the most reliable, the top power solutions.
