2.4G Dimmable LED Driver by Zigbee WiFi Dali Bluetooth Control

Name: 2.4G Dimmable LED Driver by Zigbee WiFi Dali Bluetooth Control
Brand: all-electronics-online.com
SKU: 732711352
Availability: InStock
Rating: 4.6 (116 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Overview:
T1 is the 2.4GHz RF wireless synchronization/zone dimming controller which adopts LINKSUN multiple global initiate technology. The control system consists of two parts, the RF remote control and receiver, realize the signal synchronization on multiple receivers, zone controlled arbitrarily (no more than 8 zones) within effective distance, a very good solution for the LED project needs sync/zone control wirelessly.
Can RF remote the functions of dimming, quick brightness selection and DIY and so on. User-friendly color wheel for brightness adjustment, unique LED state light for sync change indicated, user can simply know the LED working state from distance by checking the remote.

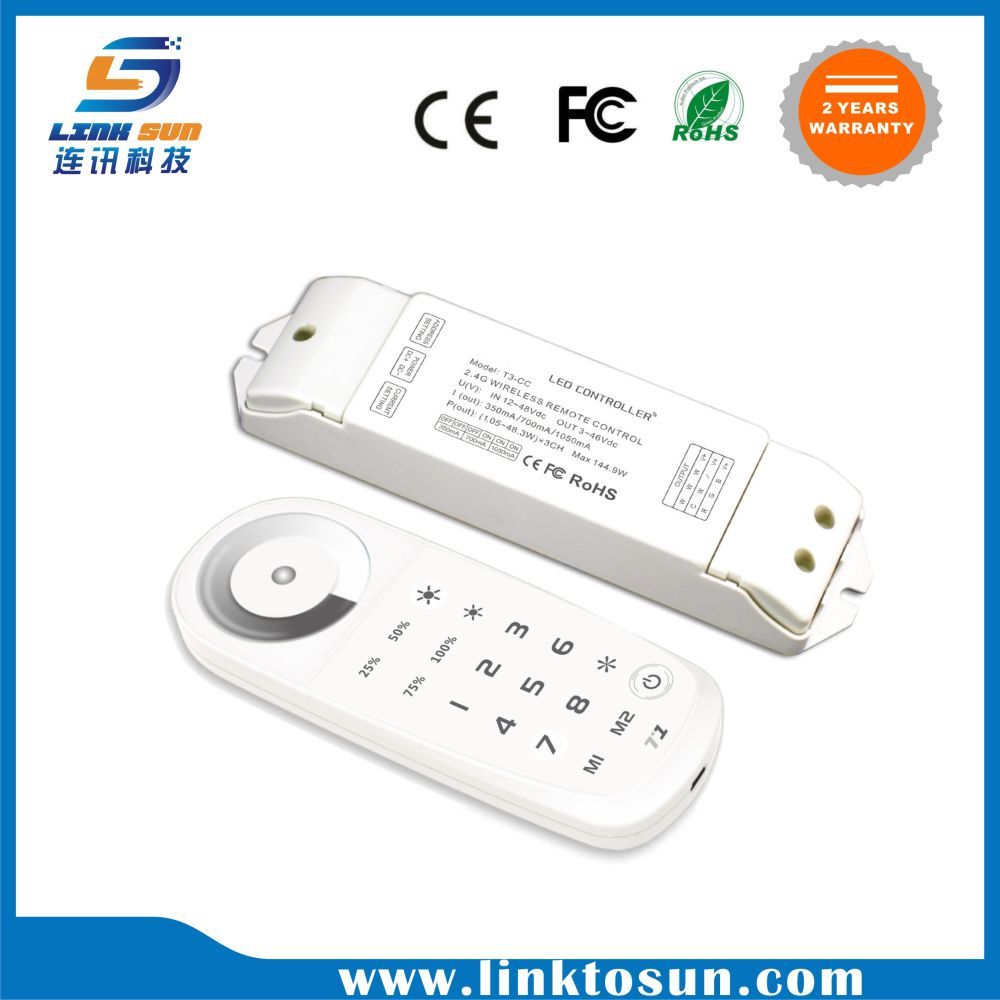

T1 Remote Control
Input Voltage: DC5V Built-in Lithium Battery
Working Current: ≤30mA
Working Frequency:2.4GHZ RF Remote Distance: 30m
Remote Option: Sync or Zone Control
Battery Capacity: 1000mAh
Standby Time: ≤6 Months
Dimensions: L145×W55×H22(mm)
Package Size: L168×W102×H28(mm)
Weight (G.W.): 200g

T3-CV Receiving controller
Input voltage: DC5V-DC24V
Max current load: 6A×3CH Max 18A
Max output power: 90W/216W/432W(5V/12V/24V)
Compatible remote control: T1/T2/T2M/T3/T3M/T3X
Working temperature: -30ºC~55ºC
Dimension: L175×W44×H30(mm)
Package size: L178×W48×H33mm
Weight (G.W.): 150g

T3-CC Receiving controller (current 3 in 1)
Input voltage: DC12V-DC48V
Output voltage: DC3V-DC46V
Output current: CC 350/700/1050mA ×3CH
Output power: 1.05W~48.3W ×3CH Max 144.9W
Compatible remote control: T1/T2/T2M/T3/T3M/T3X
Working temperature: -30ºC~55ºC
Dimension: L175×W44×H30(mm)
Package size: L178×W48×H33mm
Weight (G.W.): 160g

HS Code:	8504401400
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	N/a

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
