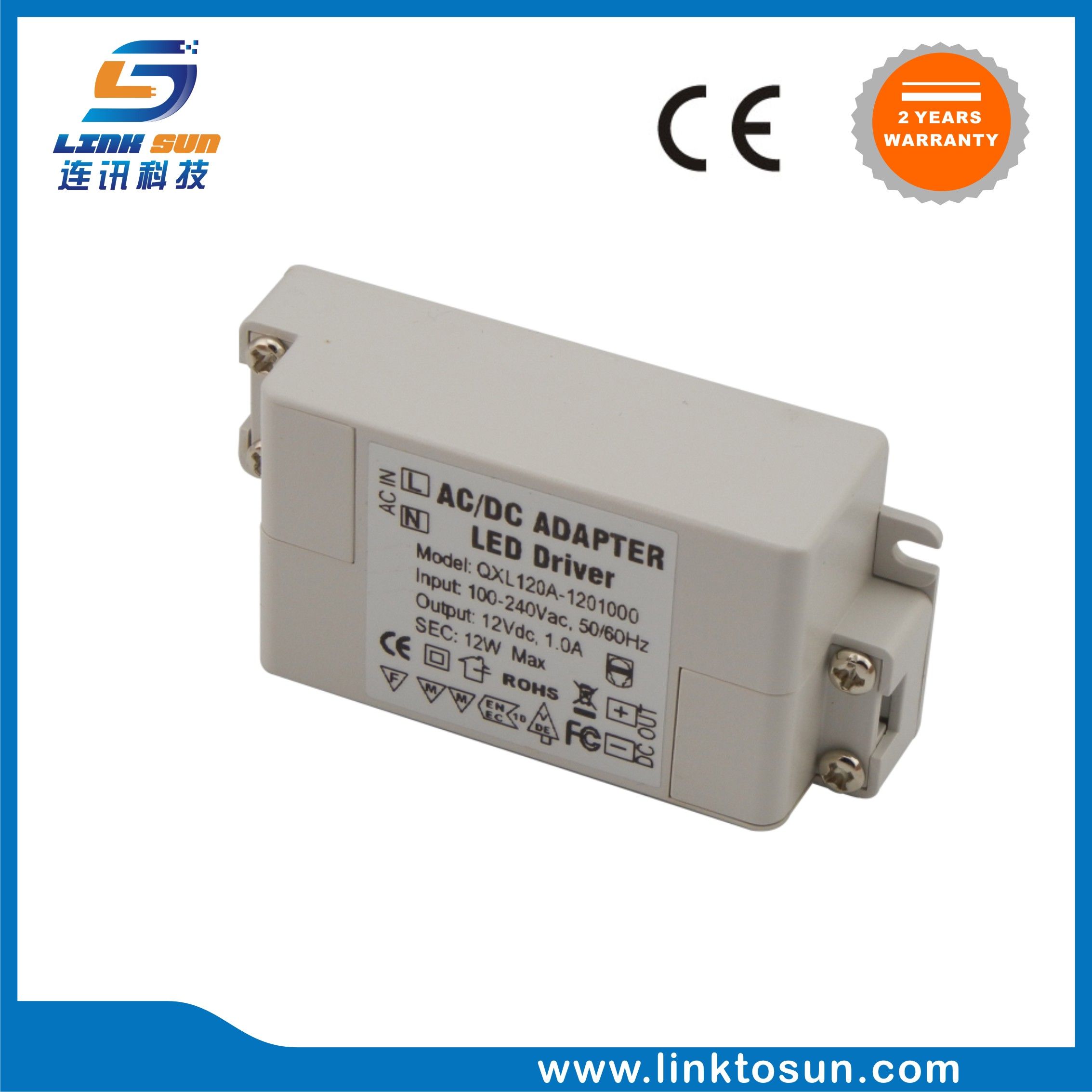

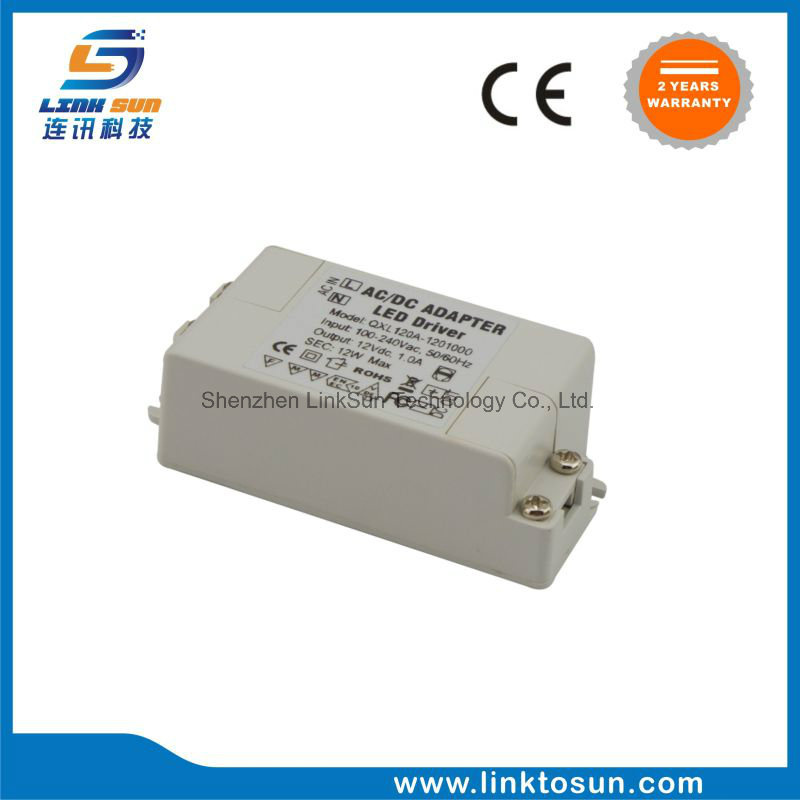

12W 12V 1A Constant Voltage LED Driver 2 Years Warranty

Name: 12W 12V 1A Constant Voltage LED Driver 2 Years Warranty
Brand: all-electronics-online.com
SKU: 729592172
Availability: InStock
Rating: 4.4 (34 reviews)

Price:	US $ 2.1-2.2/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

12W 12V 1A LED driver

Specification:

Power	12W(MAX)	Input Voltage	100-240VAC ±20%
Output voltage	12V	Output Current	0-1000mA(CV)
Power Factor	>0.5/0.9	Efficiency	≥82%
Size(mm)LWH	763823	Certification	CE.FCC.
Warranty	2 Years	Application	LED light belt/strip.MR16light cup.Cabinet lamp.Showcase lamp
Others	Various parameter can be customized according to your requirements

Feature:
-Small size,light weight
-Stable linear constant voltage output
-With isolated transformer, more safe for human body
-High efficiency,high PF, good stability,dimming smoothly;
-With over current, over voltage, short circuit, over temperature and over power protection
-Moisture-proof and dustproof for indoor or outdoor installations
-100% Full load burn-in test
-Application :ceiling /flat lighting /panel lighting.

Welcome OEM&ODM

Prod Model:	12W 12V 1A
HS Code:	8504401400
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Brand:	N/a

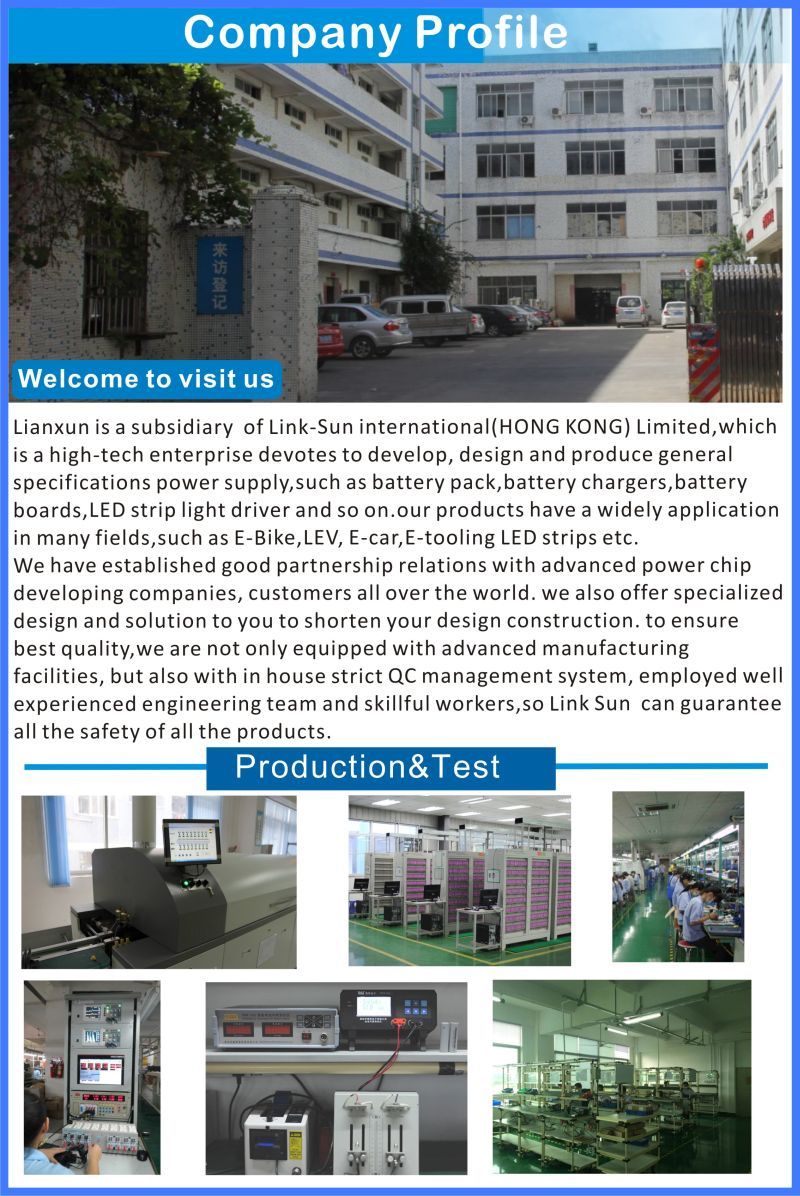

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
