| Prod Model: |
fan capacitor |
| Connect: |
Cable |
| Type: |
Polypropylene Capacitor |
| Application: |
Fan |
| Package Type: |
Through Hole |
| Capacitance: |
2.5UF |
Product Description
1.
General description: AC motor capacitor(column,plastic case)| Capacity | Voltage | Size (mm) |
| Fan capacitor (Type A) 2pins round. Alumin. housing. RESIN INSIDE. | | |
| 2.5uF | 350,450Vac | 30*55 |
| 3.5uF | 350,450Vac | 30*55 |
| Fan capacitor (Type A) 2 pins round. Alumin. housing. WAX INSIDE. | | |
| 2.5uF | 350,450Vac | 30*55 |
| 3.5uF | 350,450Vac | 30*55 |
1. Used widely in motors, air conditioner, water pumps,air etc
2.High performance & Long life Capacitor.
3. Work well even in hot area
Main feature:
Low dissipation factor, small inherent temperature rise. Excellent self-healing stability, safety and high voltage withstand,etc.
Applications:
Used widely in washing machine, water pumps, air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.
| Capacitance range | 1-120μf |
| Rated voltage Un | 250v.ac/400/450V.ac |
| Rated frequency | 50Hz;60Hz |
| Capacitance tolerance | ±5%;±10% |
| Climatic category | -25+70°C |
| Dissipation factor(at 50Hz-Hz and 20°C) | ≤0.002(100Hz,20°C) |
| Test voltage between terminals | 2×Un for 3s |
| Test voltage between terminals and case | 2×Un+1000VDC FOR 2s |
| Reference standard | EN 60252-1:2001;IEC252 |
Technical Specifications:
Standard:IEC 60252-1:2001
Technical features:
Climate type:40/70/21 or 40/85/21
Capacitance tolerance:± 5%
Insulation Resistance:≥3000S(MΩ·µF)
Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)
Application requirements:
Altitude:≤2000m
Residual voltage in application :less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage

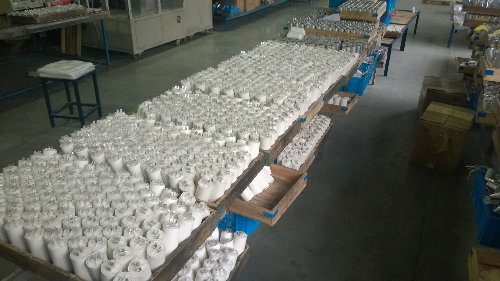

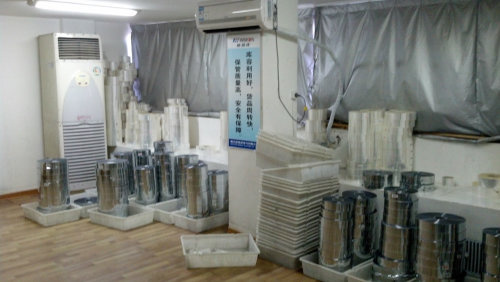

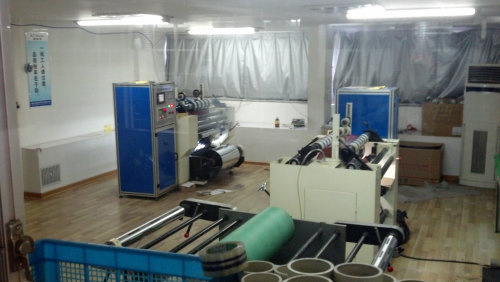

Permissible maximum current: less than 1.3 times of rated current Factory photos:

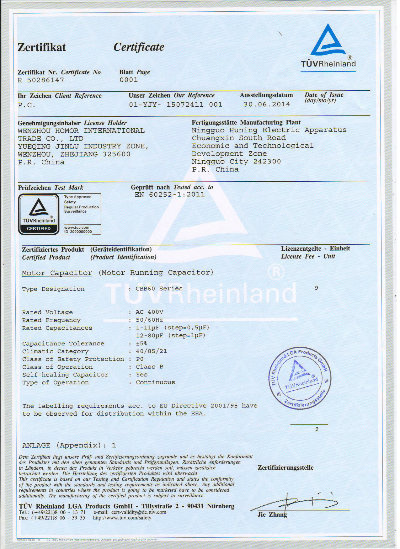

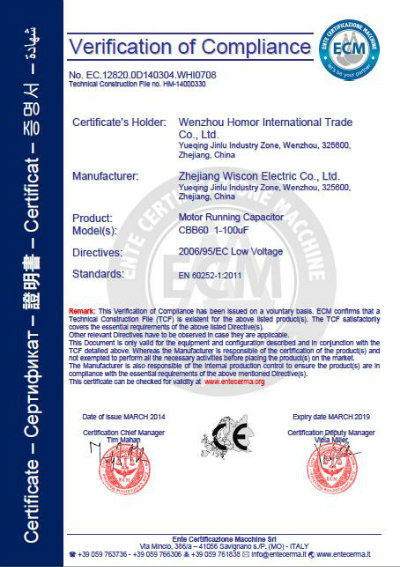

Certification:
HOMOR(hemao) in Chinese means Gracious & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and have gained good reputation in the market.
HOMOR specialize in manufacturing high quality power capacitor like BSMJ/BKMJ power capacitor, CBB60 motor running capacitor, CBB65 motor running capacitor, . To improve our research and high technology ability, we cooperated with China Electronics Technology Group which was Located in Beijing in 2011, now we have established PCB & electronic research center and advanced testing lab.
HOMOR is growing fast through year's great effort, . We are working with reliable distributors with online & offline network throughout China. We look forward to expanding our business with new agent and customer for our mutual benefit with each other.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
In strict accordance with GB/T12747-2004, IEC60831-1: 1996 Standard, its main products have gained the CE, CQC, CCC, UL certificate. Our capacitor has sales branches and distributors throughout China, and exports to more than ten countries including the United States, Canada, Brazil, Argentina, Russia, Bangladesh, South Korea, Malaysia and Singapore. Our capacitors are well-received by overseas users and has gained both economic and social benefits.
