1. General description:
Broadly applied to running of single-phase AC motors at 0Hz(60Hz)frequency for washers and high efficiency compressors of refrigerators etc.
2. features:
The capacitor takes heavy-edge metallized, AI/Zn pp film or web-like fuse metallized PP film as dielectric, its components are assembled in flame-retardant ABS or PBT cylindrical crust, impregnated with flame-retardant epoxy resin, It has high reliability and
stability.
3.Technical parameter
Standard:GB3667-1997,same as IEC60252:193
Climate type:40/70/21, 40/85/21
Capacitance tolerance: ±5%
Dielectric dissipation factor: tg&≤0.002(50Hz~100Hz)
Life expectancy:3000h(Class C)or10000h(Class B) | Capacitance range | 1-120μf |
| Rated voltage Un | 250v.ac/400/450V.ac |
| Rated frequency | 50Hz;60Hz |
| Capacitance tolerance | ±5%;±10% |
| Climatic category | -25+70°C |
| Dissipation factor(at 50Hz-Hz and 20°C) | ≤0.002(100Hz,20°C) |
| Test voltage between terminals | 2×Un for 3s |
| Test voltage between terminals and case | 2×Un+1000VDC FOR 2s |
| Reference standard | EN 60252-1:2001;IEC252 |
4.Service condition
Altitude:≤2000m
Residual voltage in application:Less than 10% of rated voltage
Allowed maximum voltage: Less than 1.1 times of rated voltage
Permissible maximum current: Less than 1.3 times of rated current
Outline size
| 1.0UF/450VAC | 30*57 |
| 1.5UF/450VAC | 30*57 |
| 2.5UF/450VAC | 30*57 |
| 3.0UF/450VAC | 30*57 |
| 3.5UF/450VAC | 30*57 |
| 4.5UF/450VAC | 30*57 |
| 6.0UF/450VAC | 30*57 |
| 6.3UF/450VAC | 35*66 |
| 8.0UF/450VAC | 35*66 |
| 10.0UF/450VAC | 35*66 |
| 12UF/450VAC | 40*71 |
| 14UF/450VAC | 40*71 |
| 16UF/450VAC | 40*71 |
| 18UF/450VAC | 40*71 |
| 20UF/450VAC | 40*95 |
| 25UF/450VAC | 40*95 |
| 30UF/450VAC | 45*95 |
| 40UF/450VAC | 50*107 |
| 50UF/450VAC | 50*107 |
| 60UF/450VAC | 50*117 |
| 2UF/450V+CABLE | 30*59 |
| 4UF/450V + CABLE | 30*59 |
| 8UF/450V+CABLE | 35*69 |
| 10UF/450V+CABLE | 35*69 |
| 12UF/450V+CABLE | 40*73 |
| 16UF/450V+CABLE | 40*73 |
| 20UF/450v+cable | 40*98 |
| 25UF/450V+CABLE | 40*98 |
| 30UF/450V+CABLE | 45*98 |
| 40UF/450V+CABLE | 50*109 |
| 50UF/450V+CABLE | 50*109 |
| 60UF/450V+CABLE | 50*119 |

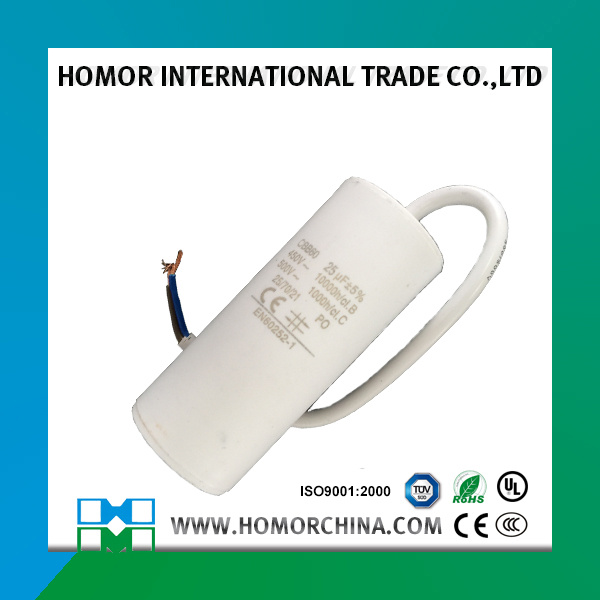

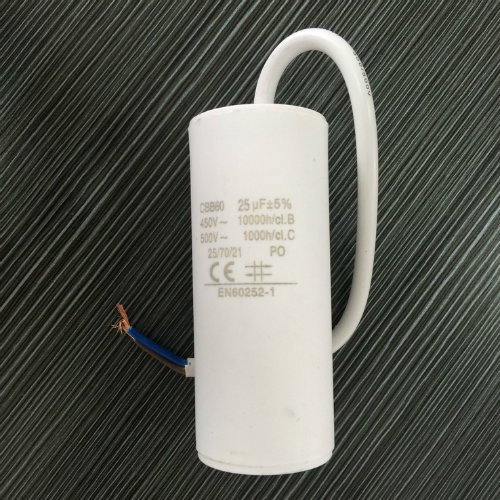

Product Photo:
Application

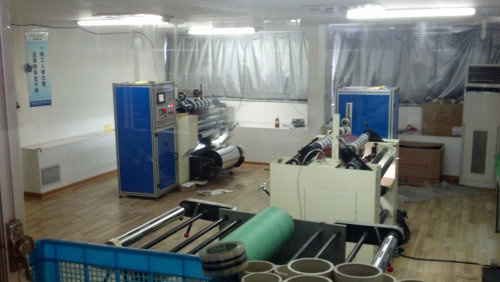

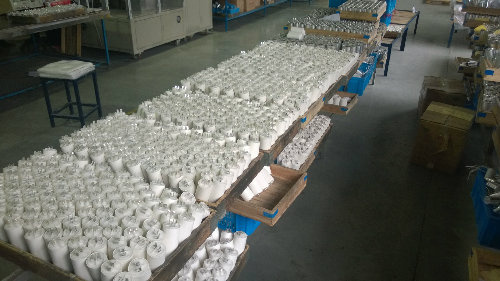

Factory photos:

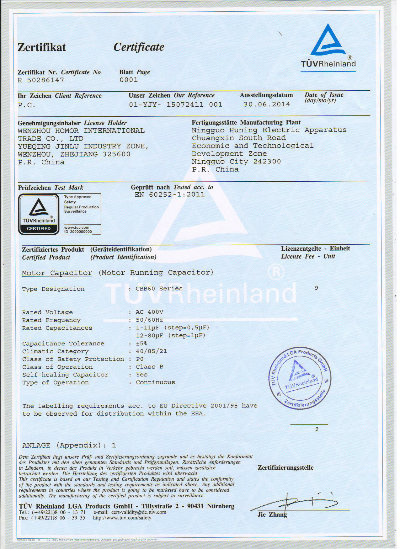

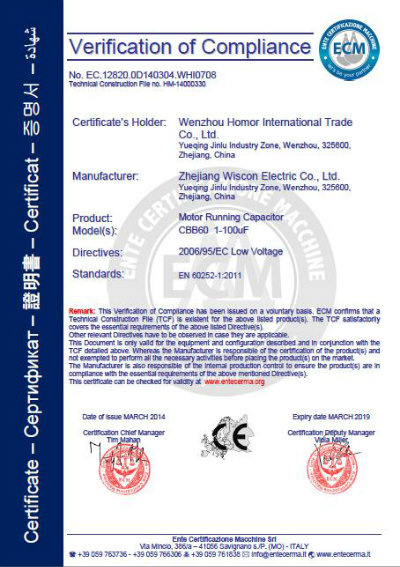

Certification:
HOMOR(hemao) in Chinese means Gracious & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and have gained good reputation in the market.
HOMOR specialize in manufacturing high quality power capacitor like BSMJ/BKMJ power capacitor, CBB60 motor running capacitor, CBB65 motor running capacitor, . To improve our research and high technology ability, we cooperated with China Electronics Technology Group which was Located in Beijing in 2011, now we have established PCB & electronic research center and advanced testing lab.
HOMOR is growing fast through year's great effort, . We are working with reliable distributors with online & offline network throughout China. We look forward to expanding our business with new agent and customer for our mutual benefit with each other.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
In strict accordance with GB/T12747-2004, IEC60831-1: 1996 Standard, its main products have gained the CE, CQC, CCC, UL certificate. Our capacitor has sales branches and distributors throughout China, and exports to more than ten countries including the United States, Canada, Brazil, Argentina, Russia, Bangladesh, South Korea, Malaysia and Singapore. Our capacitors are well-received by overseas users and has gained both economic and social benefits.
