| Prod Model: |
ISO D8-O1 |
| Item No.: |
ISO D8-O1 |
| Input Signal: |
Customised |
| Output: |
4-20mA |
| Warranty Time: |
Two Years |
Product Description

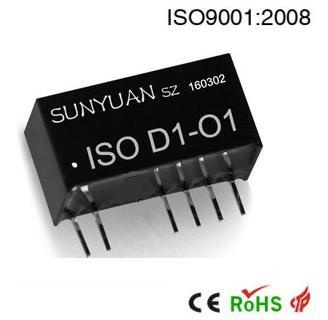

New product PWM signal to 4-20mA converter ISO D8-O1
Features Applications
Unique loop-powered technique used, external power supply
is not required.
PWM pulse width signal input, 4-20mA loop powered output
type.
10Hz--50kHz PWM signal input, high sensitivity, fast
response.
High linearity in full measuring range, non-linearity<0.2%
3kV isolation between input and output.
Extra small size 22x11x9mm, error grade: 0.1, 0.2, 0.5
SIP 8-Pin PCB-mounting, UL94V-O flame-retardant package.
High anti-interference ability on EMC magnetic interference or
high frequency signal.
Industrial operating temperature range: -40--+85Cel. deg.
Application
PMW signal long-distance transmission,
isolated conversion.
PLC and Inverter control in industrial site.
Signal Ground wire anti-interference.
Boiler temperature automatic control.
DA Converter designed on the basis of
PWM.
Processing control and automatic
equipment
PWM to 2-wire 4-20mA signal isolated
control, 1-channel input 1-channel
output or 2-in 2-out isolated conversion.
Description
SunYuan ISO D-O1 is an micro-size low power consumption passive integrated transmitter IC designed
for the isolated conversion from PWM pulse width signal into 2-wire 4-20mA signal. That IC operates in current
loop powered in output terminal mode, it receives PMM signal from input, and converts it into corresponding
isolated 4-20mA standard 2-wire current signal in linearity.
SunYuan ISO D-O1 series PWM Pulse width transmitter is a kind of integrated mixed circuits which can
convert the duty ratio of PWM signal into isolated standard current signal. The transmitter IC is in low cost, small
size standard SIP 8Pin flame-retardant package. It has combined with the following circuits: signal coupling
isolated conversion circuit, precision reference voltage source switching control circuit, low-pass filtering circuit,
driving amplification circuit, VI conversion circuit, etc. The output loop powered power supply range is
12-36VDC, PWM signal is converted in high accuracy and linearity. The hybrid integrated circuit and isolated
technique used enable that transmitter IC to operate in 3KV isolation between input and output and operate
normally in the severe operating environment, like high/low temperature, humidity, shake, etc in industrial site.
SunYuan ISO D-O1 is designed by using high speed optically coupled isolation mode and high efficiency
feedback loop powered technique to achieve the isolated conversion from PWM signal to 4-20mA standard
signal. It can be well matched with the input interface of various types of meters and instruments like PLC, DCS,
FCS, etc. Operating in loop powered mode and extra small size (22.0X11.0X9.0mm) can effectively simplify
user's system layout and save the space and cost in designing an application solution. The transmitter has
35mm DIN Rail-mounting package and PIM embedded board with display type. For 35mm rail-mounting type, it
has single input, single output, dual input-output, triple input-output type. PIM embedded board with display type
can realize sensor signal isolation and display, alarm control, long-distance transmission without distortion. It is
widely applied to electric power system, telecom, instrumentations & measurements, medical equipments,
industrial intelligent control, automotive electronics, security-monitoring system, military industry, etc.
General Parameters
| Accuracy,linearity error grade--------------0.1,0.2,0.5 | Load regulation------------<0.05% meas.val./100ohm |
| Auxiliary power supply -----None | Isolation----Dual isolation between input and output |
| Operating temperature--- -40 -+85degree | package-------SIP 8pin |
| Operating humidity-----10-90%(non-condensation | withstand voltage-----3KV(60HZ/S),leakage current <1mA |
| Storage temperature---------45 - 105degree | impulse withstand Volt.-----3KV,1.2/50us(peak) |
| storage humidity-------10-95% | Temperature drift-------0.0050%F,S./Degree (-40- +85degree operating temperature range |
