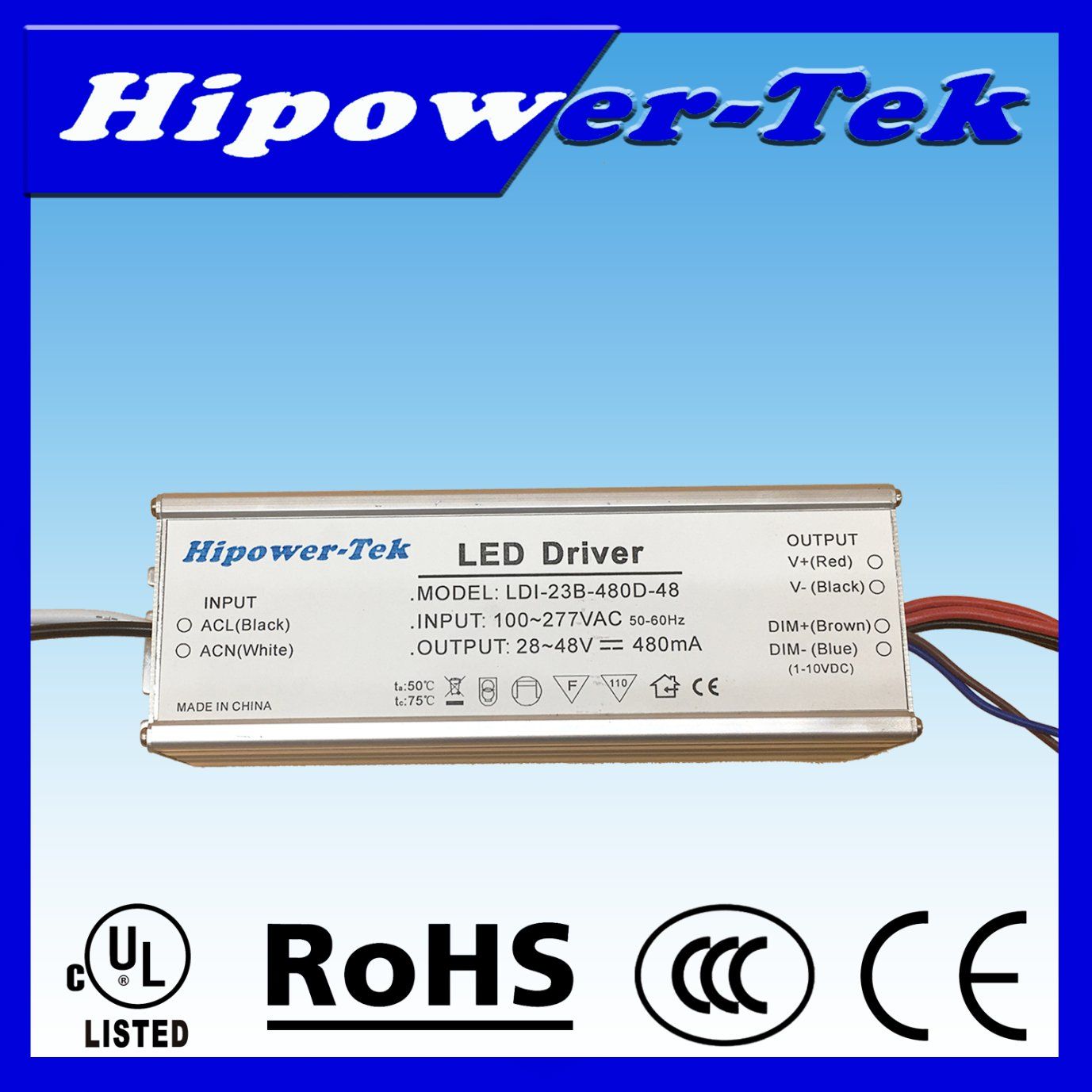

20 Constant Current Warranty 3 Years Economical Two-Stage Design Indoor LED Driver

Name: 20 Constant Current Warranty 3 Years Economical Two-Stage Design Indoor LED Driver
Brand: all-electronics-online.com
SKU: 829107175
Availability: InStock
Rating: 4.8 (90 reviews)

Price:	US $ 3.5-4/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Features

UniversaI AC input: 90~305VAC
High power factor: up to 0.99
Low THD: <10%,minimize to 3%
High efficiency: up to 91%
No FIicker
IsoIation cIass II, Constant current output
Protections: Short circuit, Over current, Over voItage, Over temp
3 years warranty

Model No.	Output Power	Output Voltage	Output Current	PF (@230VAC)	THD (@230VAC)	EFFI. (@230VAC)	Tol.
LDI-22A/B-450A/D	22W	28V-48V	450mA	0.98	7.4	89.5%	3%
LDI-23A/B-480A/D	23W	28V-48V	480mA	0.98	7.5	90%	3%
LDI-24A/B-500A/D	24W	28V-48V	500mA	0.978	7.3	89.9%	3%
LDI-26A/B-540A/D	26W	28V-48V	540mA	0.98	7.1	90.1%	2%
LDI-29A/B-600A/D	29W	28V-48V	600mA	0.98	5.9	90.2%	1%
LDI-30A/B-620A/D	30W	28V-48V	620mA	0.97	5.9	90.4%	1%
LDI-31A/B-650A/D	31W	28V-48V	650mA	0.974	6.6	90.7%	2%
LDI-32A/B-680A/D	32W	28V-48V	680mA	0.97	6.5	91%	2%
LDI-33A/B-700A/D	33W	28V-48V	700mA	0.97	6.4	91%	2%
LDI-35A/B-720A/D	35W	28V-48V	720mA	0.98	6.3	91%	2%
LDI-36A/B-750A/D	36W	28V-48V	750mA	0.98	6.4	91%	2%
LDI-37A/B-780A/D	37W	28V-48V	780mA	0.98	6.5	91%	2%
LDI-39A/B-820A/D	39W	28V-48V	820mA	0.98	6.4	91%	2%
LDI-40A/B-840A/D	40W	28V-48V	840mA	0.98	6.4	91%	1%
LDI-42A/B-870A/D	42W	28V-48V	870mA	0.98	6.8	91%	1%
LDI-43A/B-900A/D	43W	28V-48V	900mA	0.98	7.1	91%	1%
LDI-44A/B-920A/D	44W	28V-48V	920mA	0.98	6.1	91%	1%
LDI-46A/B-960A/D	46W	28V-48V	960mA	0.98	6.4	91%	1%

Prod Model:	LI Series 20W
AC Input:	120~277
Level Of Protection:	IP20
Power Factor:	0.98 at 230VAC
Efficiency:	91% at 230VAC
Thd:	<10%, Minimize to 3%
Warranty:	3 Years
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM+Flyback
Power Supply Voltage:	AC120V-277V(up to 305V)
Pack Sealing Size:	None
Brand:	Hipower-Tek

Hipower-tek is a leading edge LED manufacturing company, specializing in the development and production of high end commercial and industrial lighting products. Since the establishment in 2012, our company's performance has improved rapidly year by year. And also, we have become a recognized technologic-leading company in LED industry.

Hipower-Tek have self-developed various specifications and wide input voltage range LED drivers. Our products possess features such as high efficiency, superior reliability and long durability. Our professional R&D team guarantees the advancement and diversity of our technology. We have expanded our products to PLC dimming control, emergency power supply, LED retrofit kit etc.

Hipower-Tek always holds the concept that constant innovation, satisfying service and good credibility mark the excellence of a company, so we intend to provide you the best solution, customized service and quick respond.

The talented crew, advanced technology and scientific management contributes to Hipower-Tek 's rapid development, along with our pragmatic and aggressive entrepreneurship comprise the core competence of our company.

We may not have a glory history, . But we believe that with our ideas and incredible products we will be making history in the near future
