UL Listed 46W 960mA 48V Constant Current Short Case LED Driver

Name: UL Listed 46W 960mA 48V Constant Current Short Case LED Driver
Brand: all-electronics-online.com
SKU: 821654245
Availability: InStock
Rating: 4.6 (127 reviews)

Price:	US $ 5.4-5.8/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Brief Introduction

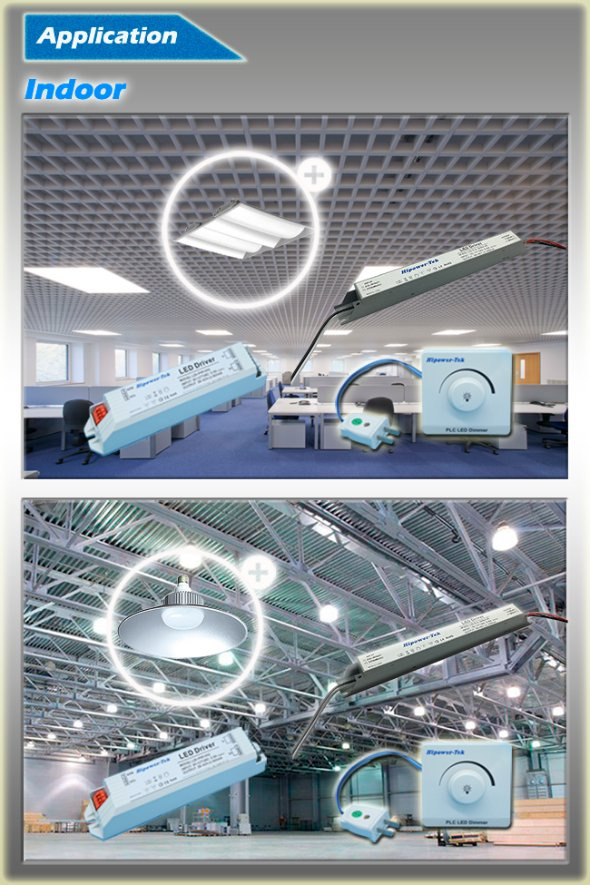

LDI series is Hipower-tek self-developed indoor LED driver. The two-stage plan helps this series shows extremely high performance. Also, self-researched transformer reaches EIS level Class F (155 degree). Great cooling system makes the temperature rise only 15 to 20 degree. These designs make LDI series to be a reliable choice for LED lighting fixtures

Overview

1. Model No.: LDI-46B-960A/D

2. AC Input Voltage:100-277VAC (90-305VAC)

3. Output Voltage Range: 28-48V

4. Output Power: 46W

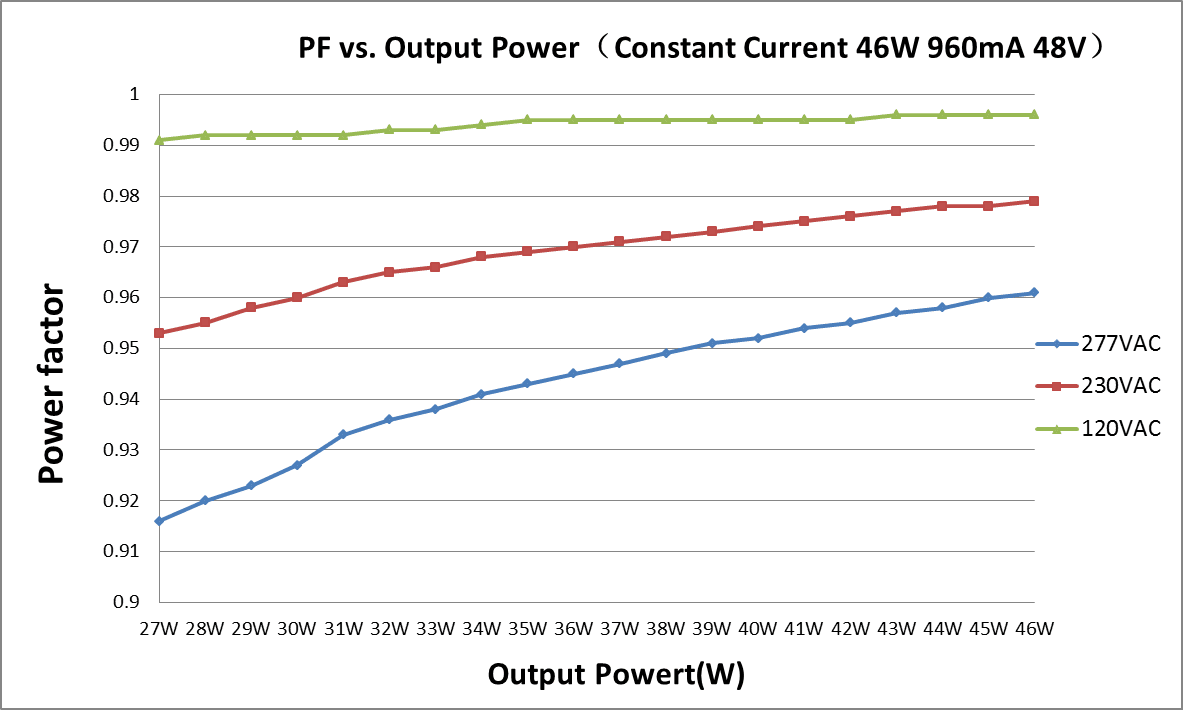

5. Power Factor: 0.98 @230VAC

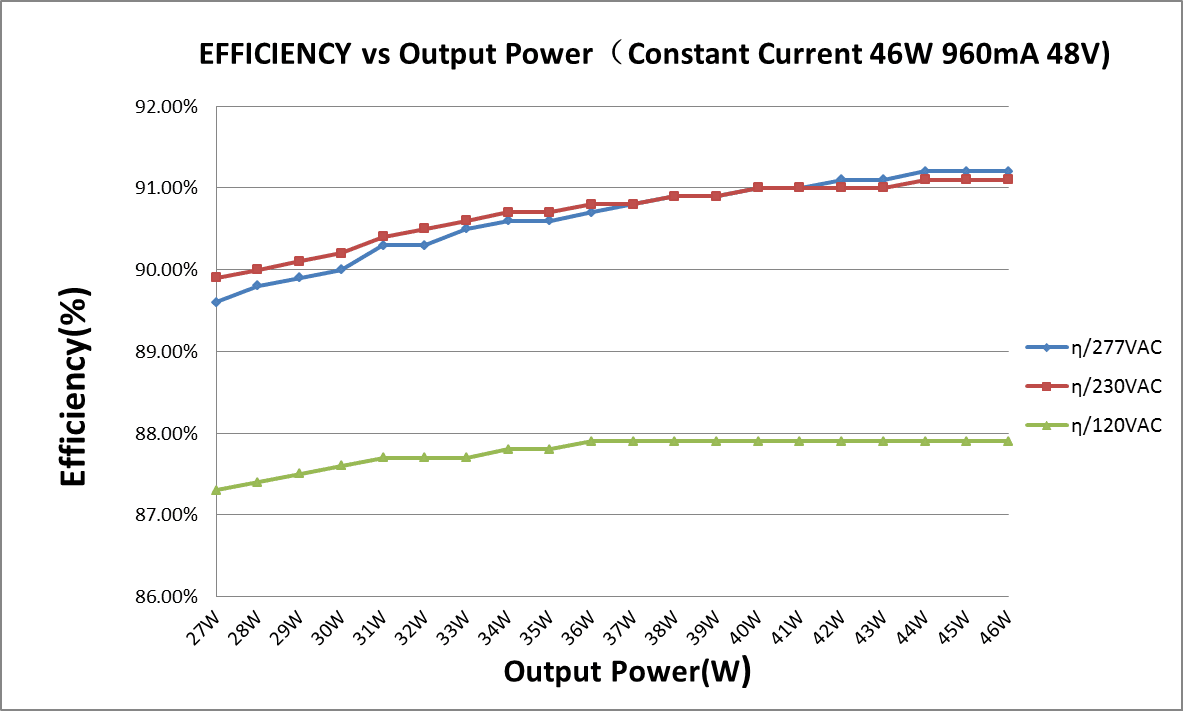

6. Efficiency: 91% @230VAC

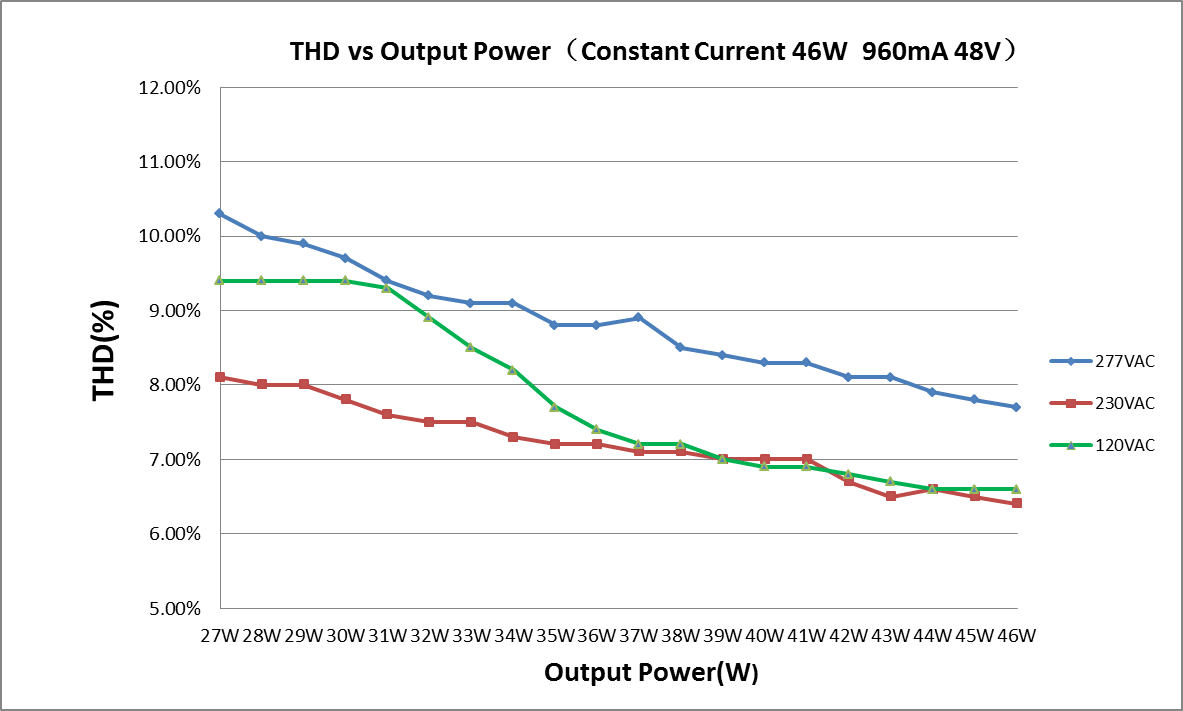

7. THD: <10% (all range)

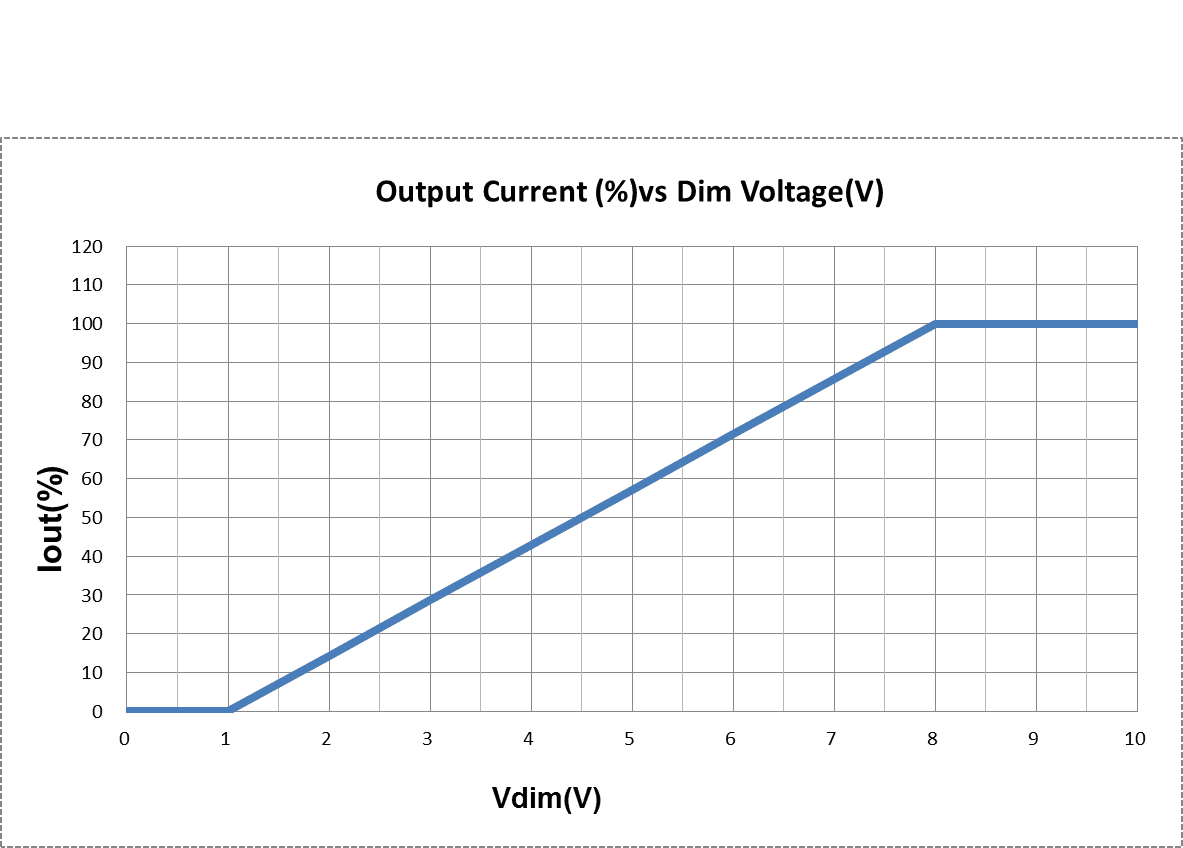

8. 0-10V Dimming Available

9. Size: 150*45*35 mm

10. Certification: UL listed, TUV pending

11. Warranty: 5 years

12. Family Datasheet

Model No.	Output Power	Output Voltage	Output Current	PF (@230VAC)	THD (@230VAC)	EFFI. (@230VAC)	Tol.
LDI-22A/B-450A/D	22W	28V-48V	450mA	0.98	7.4	89.50%	3%
LDI-23A/B-480A/D	23W	28V-48V	480mA	0.98	7.5	90%	3%
LDI-24A/B-500A/D	24W	28V-48V	500mA	0.978	7.3	89.90%	3%
LDI-26A/B-540A/D	26W	28V-48V	540mA	0.98	7.1	90.10%	2%
LDI-29A/B-600A/D	29W	28V-48V	600mA	0.98	5.9	90.20%	1%
LDI-30A/B-620A/D	30W	28V-48V	620mA	0.97	5.9	90.40%	1%
LDI-31A/B-650A/D	31W	28V-48V	650mA	0.974	6.6	90.70%	2%
LDI-32A/B-680A/D	32W	28V-48V	680mA	0.97	6.5	91%	2%
LDI-33A/B-700A/D	33W	28V-48V	700mA	0.97	6.4	91%	2%
LDI-35A/B-720A/D	35W	28V-48V	720mA	0.98	6.3	91%	2%
LDI-36A/B-750A/D	36W	28V-48V	750mA	0.98	6.4	91%	2%
LDI-37A/B-780A/D	37W	28V-48V	780mA	0.98	6.5	91%	2%
LDI-39A/B-820A/D	39W	28V-48V	820mA	0.98	6.4	91%	2%
LDI-40A/B-840A/D	40W	28V-48V	840mA	0.97	6.4	91%	1%
LDI-42A/B-870A/D	42W	28V-48V	870mA	0.98	6.8	91%	1%
LDI-43A/B-900A/D	43W	28V-48V	900mA	0.98	7.1	91%	1%
LDI-44A/B-920A/D	44W	28V-48V	920mA	0.98	6.1	91%	1%
LDI-46A/B-960A/D	46W	28V-48V	960mA	0.98	6.4	91%	1%
LDI-49A/B-1020A/D	49W	28V-48V	1020mA	0.98	5.1	91%	1%
LDI-50A/B-1050A/D	50W	28V-48V	1050mA	0.982	5.6	91%	1%
LDI-57A/B-1200A/D	57W	28V-48V	1200mA	0.98	5.9	91%	1%

Prod Model:	LDI-46B-960A/D
AC Input:	120~277
Level Of Protection:	IP20
Efficiency:	91% at 230VAC
Power Factor:	0.98 at 230VAC
Thd:	<10%
Tol.:	1%
R&N:	100mv
Warranty:	5 Years
Usage:	Dimming
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM+Flyback
Power Supply Voltage:	AC120V-277V(up to 305V)
Pack Sealing Size:	None
Brand:	Hipower-Tek
