2000W E-Vehicle DC/DC Power Module

Name: 2000W E-Vehicle DC/DC Power Module
Brand: all-electronics-online.com
SKU: 826672475
Availability: InStock
Rating: 4.8 (85 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

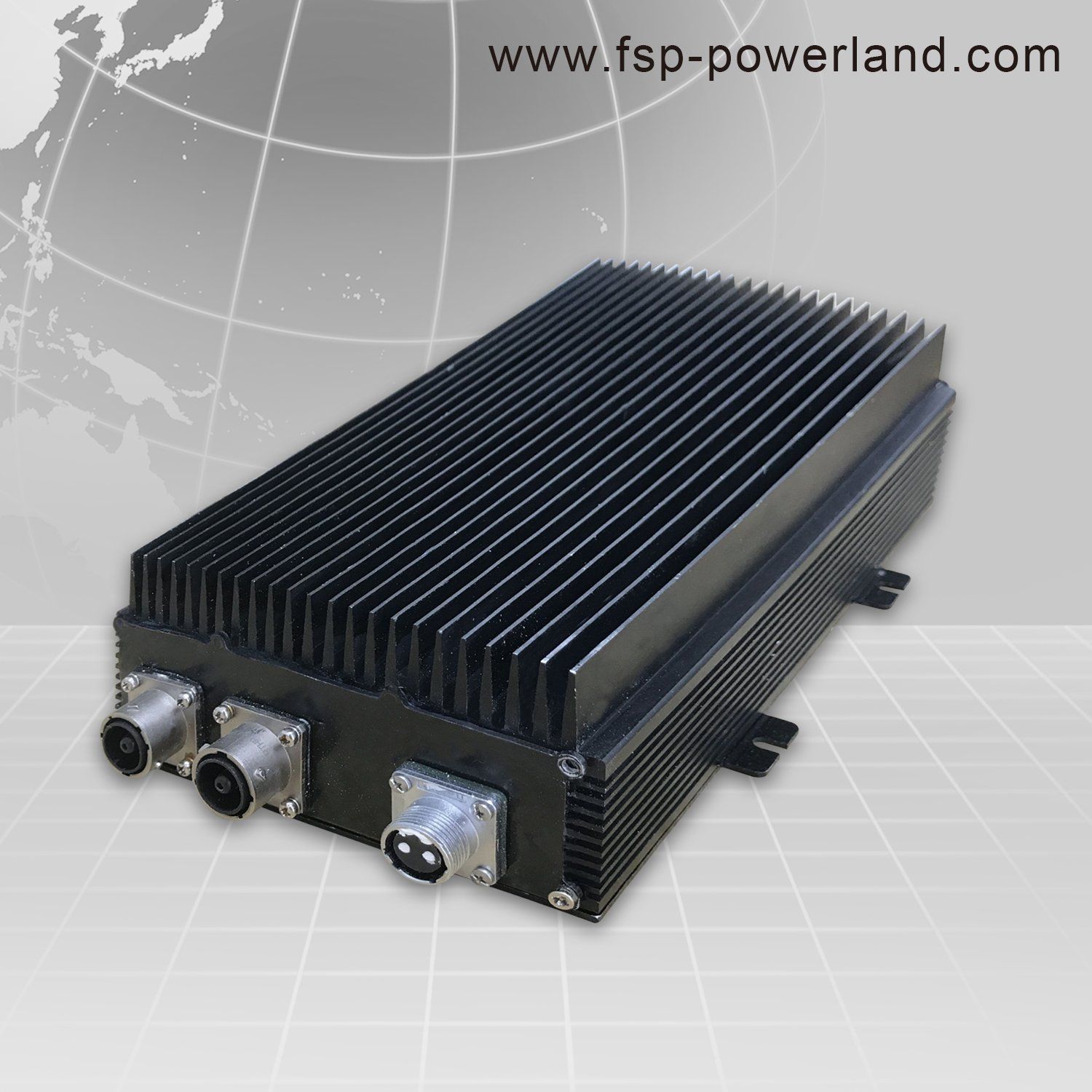

2000W E-Vehicle DC/DC Power Module

Powerland's 2000W e-vehicle DC/DC power module is designed with built-in intelligent control and extraordinary circuit designs, providing performances of high power density, high reliability, and high efficiency. The module is designed with automobile design standards, perfect thermal management, anti-shock technique, and super long life time. It has been successfully installed in eautomobile, e-bus and other green energy applications.

Features
Input Voltage: 200~460Vdc
Output Power: 1872W
Ultra-High Reliability
Ultra High Efficiency, up to 96%
All-Around Protections: OVP, SCP, OTP
Free Air Cooling
Low Temperature Start Up @ -30 ºC
Full Load Operation @ 70 ºC Ambient Temperature
IP67 Ingress Grade
CAN Interface

Model Specifications

Model Number	Output Power	Output Voltage	Output Current
PLD2000-EVDL01-28	1872W	20~28.8V	65A

Specifications

Models	PLD2000-EVDL01-28
Output Voltage	20~28.8V
Output Current	65A
Output Voltage @ Open Circuit	28.8V
Current Accuracy	±2%
Voltage Accuracy	±2%
Output Power	1872W
Input Voltage	200~460Vdc
Max. Input Current	12A
Max. Input Power	2000W
Communication	CAN
Efficiency	96%
Protections	OVP, SCP, OTP
Ingress Protection	IP67
Working Temperature	-30~70ºC
Cooling	Free Air Cooling
EMI	Comply with CISPR25-ClassC
Isolation	Input-Case: 2000Vdc/5mA max./60s Output-Case: 1500Vdc/5mA max./60s Input-Output: 3000Vdc/5mA max./60s
Dimension (LxWxH)	295x175x67mm
Weight	6kg
Life Time	50,000 hours at 40ºC, 380Vdc Input, and Continuous Full Load Output

Our Service & Payment

Prod Model:	PLD2000-EVDL01-28
Output Voltage:	20~28.8V
Output Current:	65A
Output Type:	Single
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	RoHS
Warranty:	5 Years
Output Power:	1872W
Input Voltage:	200 - 460 VDC
Power Supplying System:	DC/DC
Brand:	Fsp-Powerland
