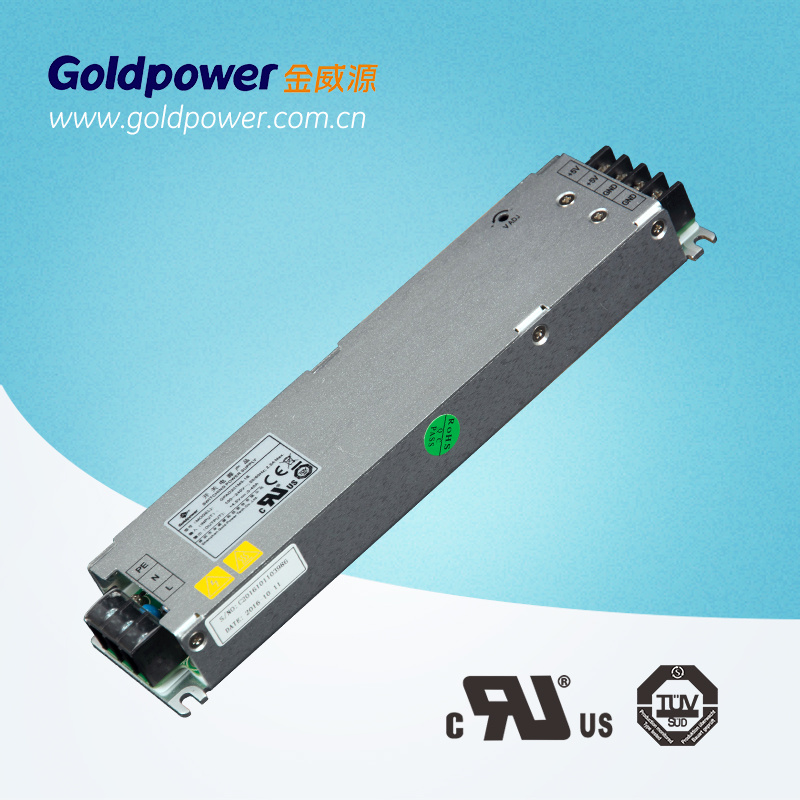

200W 4.6V LED Power Supply for LED Display Screen

Name: 200W 4.6V LED Power Supply for LED Display Screen
Brand: all-electronics-online.com
SKU: 730473122
Availability: InStock
Rating: 4.9 (47 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

200W 4.6V LED Power Supply for LED Display Screen is our 200W Ultra-narrow Series LED display power supply.

Features:
1. Ultra-small size, module housing with compatible installation, especially for creative screen.
2. Full voltage input 90~264Vac,no derating in low-voltage section, complete certiﬁcation, used globally.
3. 4.2-5V output adjustable, meet the demands of all kinds of different brightness screen
4. The power factor up to 0.95, efﬁciency over than 90%, small heat, air cool.

Specification:

Input
Item	Parameter	Unit
Input voltage range	90~264	Vac
Input inrush current	50	A
Input frequency	47~63	Hz
Output
Output voltage range	4.2~5	Vdc
Output efficiency	90	%
Stabilized voltage precision	±5	%
Load regulation	±1	%
Turn-on output delay	2	s
Ripple & Noise	200	mV
Dynamic response	±5	%
MTBF	≥200,000	H
Environmental
Working temperature	-25~55	ºC
Relative humidity	5-95	%
Storage temperature	-25-100	ºC
Altitude	5000	m
General Characteristics
Insulation resistance	≥10	MΩ
Dimension	2143026 mm
Weight	≤0.5Kg

Prod Model:	GPAD201M4.6-1B
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Constant Current
Certification:	CB
Brand:	Goldpower

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
