| Prod Model: |
GPR4850K-TI |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Input Voltage: |
Full Range |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CB |
| Output Power: |
2900W |
| Brand: |
Goldpower |
Product Description

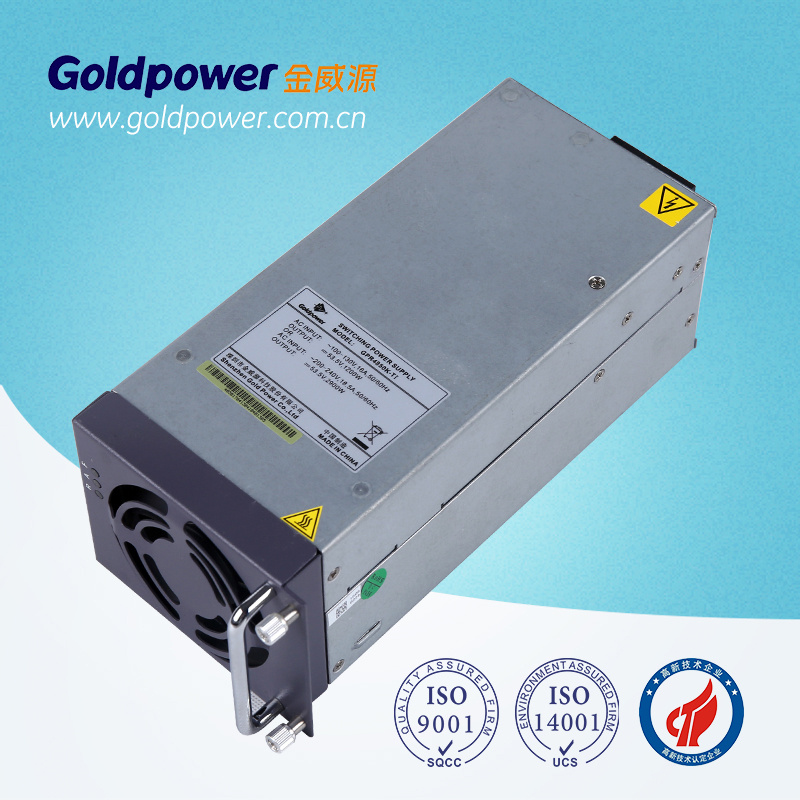

96% high efficiency 48V 50A rectifier module switching power supply for telecom power system
Features
• Compact structure, high power density of 22W/in3 ;
• Constant current output available within output voltage 42-54V;
• Constant power output available within output voltage 54-58V ;
• Output voltage adjustable within 42-58Vdc
Default voltage: 53.5V;
• Wide operating temp. range: -33~+55°C
• Extended operating temp. range: +55~+65°C
• Power factor correction: ≥0.99
• RS485 communication port
• Input under-voltage protection
• Input over-voltage protection
• Output over-voltage protection
• Output over-current protection
• Over temperature alarm and protection
• Paralleled work available via current sharing bus
• Remote start up/shutdown
• Hot -swappable
• UL 60950, CSAC22.2 60950-00,
VDE0805 and IEC60950 compliance
• CE mark meets directives of 73/23/EEC
and 93/68/EEC
• High efficiency more than 96%
Applications
48V Distributed power system
Ethernet
Exchange
LAN, WAN
Server
Indoor wireless network
Telecom equipment
Specification: | Input |
| Parameter | Min. | Typ | Max. | Unit | Remarks |
| Input Voltage Range | 90 | 110/220 | 290 | Vac | |
| Input Frequency | 45 | 50/60 | 65 | Hz | Rated load |
| Input Current | | | 18.5 | A | |
| Power Factor | 0.99 | | | | Rated input/rated load |
| Output |
| Parameter | Min. | Typ. | Max. | Unit | Remarks |
| Output Voltage Range | 42 | 53.5 | 58 | Vdc | Adjustable via the monitoring module (No load) |
| 53.5 | | 53.8 | Vdc | 220V Input, 25A Output |
| Output Current Range | 0 | | 50 | A | 176~290V ac Input |
| 0 | | 22 | A | 90~175V ac Input |
| Output Efficiency | 94 | | 96 | % | 220V AC Input (220Vac input, rated output voltage, 25% rated load current 94 |
| 94 | | 96 | % | 110V AC Input |
| Output Power | | | 2900 | W | Input: 200-240Vac; Output: 53.5Vdc
|
| | | 1200 | W | Input: 115-130Vac; Output: 53.5Vdc; |
| Regulation | | | ±1 | % | |
| Weighted Psophometric Noise | | | 2 | mV | |
| Wide Frequency Noise Voltage | | | 50 | mV | (3.4KHz~150KHz) |
| | | 20 | (150KHz~30MHz) |
| Ripple (Vp-p) | | | 200 | mV | Rated input voltage & load, with 0.1uF film capacitor and 10uF high frequency electrolyte capacitor, oscilloscope band width of 20MHz. |
| Environmental Requirements |
| Parameters | Min | Typ. | Max | Unit | Remark |
| Operating temp | -33 | | 55 | °C | |
| Transportation temp | -40 | | -70 | °C | |
| Storage temp storage temperature | -40 | | 70 | °C | |
| Humidity | 5 | | 95 | % | Relative humidity, no condensing |
| Altitude | 0 | | 4000 | m | For operation at 3000-4000m, the operation temperature is derated by 1°C per 200m. |
| Acoustic noise | | 55 | | dB | |
| Cooling | Forced cooling; Front-in & rear-out; the fan locates at front, with temperature controlled speed. |
