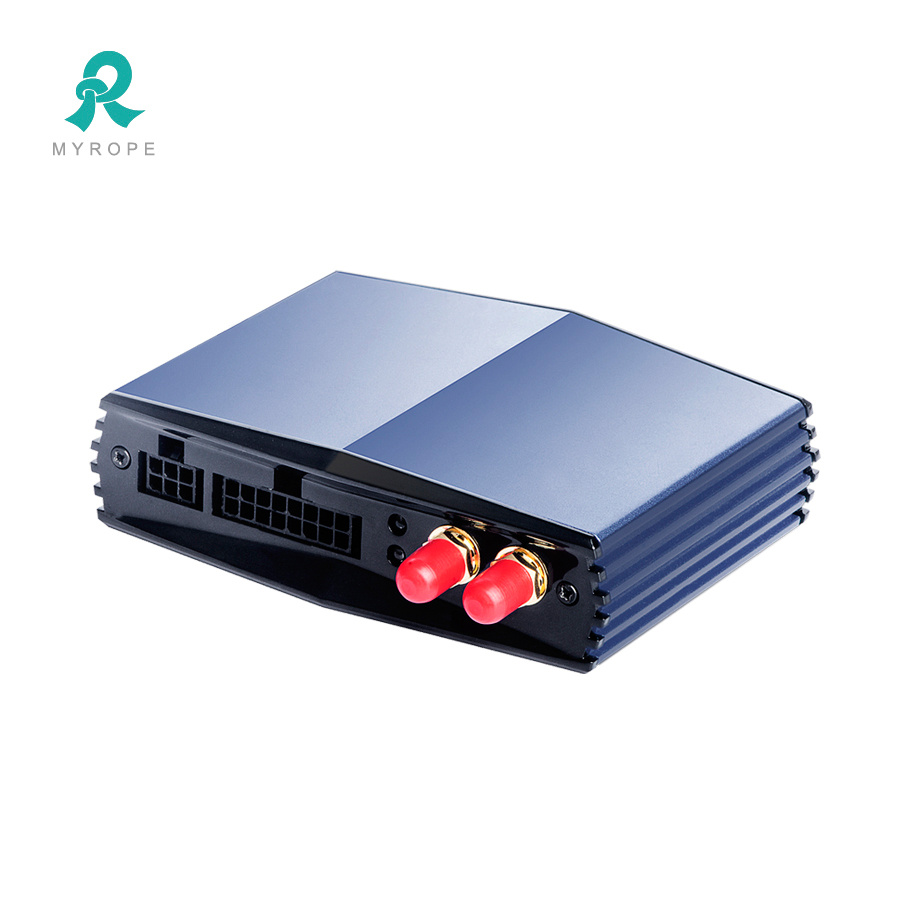

2017 Wholesale Vehicle GPS Tracker with Remotely Engine Cutoff1.Products Introduction M508 is an anti-theft GPS tracking device with super stable quality for fleet management. It can work with temperature or fuel sensor ,Ibutton,RFID reader,car phone,camera,LED,navigative screen which suitable to bus , taxi , company fleet project and so on. And it support 2G network .
2. Features1) small size, easy to install;
2) accurate GPS positioning, dynamic positioning deviation is less than 5 m;
3) support GPRS and SMS tracking mode, adopt UDP / TCP communication protocol in GPRS mode;
4) able to get current location immediately, and support real-time tracking (GPS data uploading at intervals);
5) support two way voice communication via handset;
6) support two way SMS communication via Mobile and PC software;
7) support authorized tapping;
8) support protection from high level voltage;
9) support the data resend from signal dead zone;
10) support remotely disable engine;
11) 3 digital inputs for detecting the status of engine, door, air condition, etc.;
12) support illegal door-open/illegal engine-start alarm, SOS alarm, power-off alarm, over-speed alarm, parking alarm, Geo-fence alarm, fatigue driving alarm
13) support fuel consumption detection and fuel changing alarm;
14) support temperature detection and temperature changing alarm;
15) support mileage statistics;
16) support remote update
17) support three serial peripherals (such as the handset, scheduling screen, camera, LED, navigation screen, RFID device);
3.Specifications| Items | Parameters |
| GSM Module | Quectel M50 |
| GSM Frequency | 850/900/1800/1900 MHZ |
| LBS Positioning Accuracy | 100-500m |
| GSM Antenna | External |
| GPS Chipset | U-blox 7020 |
| GPS Sensitivity | -159 dBm |
| GPS Frequency | L1, 1575.42 MHZ |
| Channels | 20 channels examine track |
| GPS Positioning Accuracy | 5-10m, 2D RMS |
| GPS Antenna | External |
| Speed Accuracy | 0.1m/s |
| Time Accuracy | Synchronize with GPS |
| GPS Data | WGS-84 |
| Hot Start | <1s |
| Warm Start | <38s |
| Max Altitude | 18000m |
| Max Speed | 515m/s |
| Gravity Acceleration | <4g |
| Working Voltage | 8VDC~50VDC |
| Working Current | 50Ma~160Ma |
| Operating Temperature | -20ºC-70ºC |
| Humidity | 5%-95% |
| Size | 96mm × 55mm × 26mm |
| Simcard | Normal simcard |
| Battery | Rechargeable lithium polymer battery 380mAh |
| Internal battery Standby | >4h |
| Input | 3pcs (including ACC detection) |
| Output | 2pcs |
| A/D input | 1pc |
4. Advantages 1.It can distribute different rights to different users.
2.The system can check over the status of terminal real time, and achieve successive monitoring.
3.Play back/Geo-fence/POI SOS alarm from the terminal.
4. Supports engine cut for vehicle trackers
5.support take photo.
6.support many kinds of reports.
ROPE INNOVATION CO Ltd, a technology creative company, with its principal office at Shenzhen the special economic zone of China, is engaged in researching and manufacturing various kinds of telecom electronic products and professional in the field of GPS tracking solutions.
Within 10 years development, We had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. With the purpose of improving the quality and safety of products and satisfying the requirements of all kinds of customers, we have obtained ISO9001-2008 international management system and types of certificates for products like CCC, CE, FCC, RoHS and explosion-proof certificate early or late, and succeeded in applying our tracking system in construction machine management, logistics fleet management, bus fleet management, taxi solutions and anti-theft system for private cars, person, pets and assets etc. Owning an experienced R&D team with its member of more than 30 engineers, we are able to offer customers ODM and OEM service to customize the brand-new products as per your particular requirements.
With the effort of the entire excellent team, we registered the brand of "MYROPE", gradually became one of the lead in the GPS tracking industry and enjoyed a great popularity worldwide. We were and will go on keeping the tenet of "Flawless quality, Meticulous Service and Endless Innovation" in the progress of development in order that we can all the way provide customers with advanced, stable and high performance products and satisfactory service.
We sincerely hope that we could create a more convenient and safer life for the whole civilians of the world together with you.
