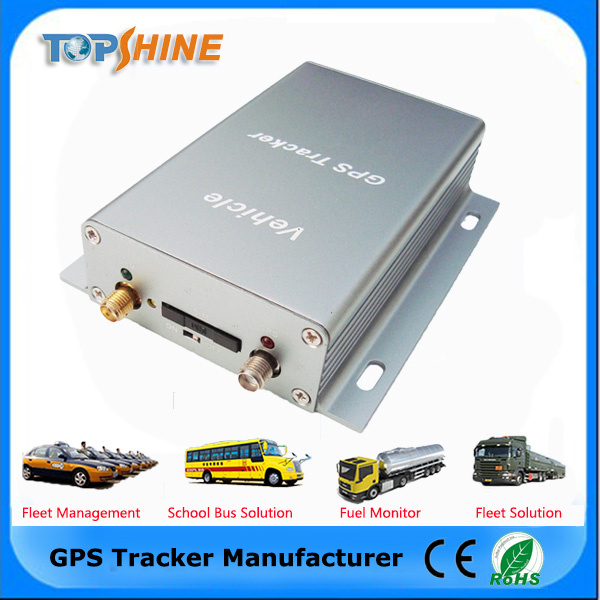

Vehicle GPS tracker support 2 fuel sensor temperature monitoring SOS VT310N(2 years warranty, Free Tracking Platfrom (PC base & Android),CE & RoHS & SGS certification)Products Overview VT310N is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, VT310N has good sensitivity and stable performance. Especially, VT310N is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customer or manage their fleet.
Application *Vehicle Real Time Tracking
*Car Security/Anti-Hijack
*Comprehensive fleet management
Specification | Items | Specifications |
| Dimension | 117*85*26mm |
| Weight | 185g |
| Charging Voltage | 9V~24V |
| SIM card type | 3V |
Power
consumption | Active mode(peak) < 1.0A
Active mode(avg.) < 300mA |
Operating
Temperature | -20ºC~+ 75ºC |
| Humidity | Up to 75% non-condensing |
| External Antenna | Connected via 50 coax connector |
| External SIM Card | Connected via SIM card connector |
| Button | 1 SOS and 1 power on/off |
| Microphone | Optional |
| Transmit Power | Class 4(2W) for E-GSM 900 and 850
Class 1(1W) for DCS 1800
Class 1(1W) for PCS 1900 |
| Sensitivity | -104dBm minimum for E-GSM 900 AND 850
-102dBm minimum for DCS 1800
-102dBm minimum for PCS 1900 |
| GPS Chip | Latest GPS SIRF-Star III chipset |
| GPRS | Multi-slot Class 8(4Rx, 1Tx., 5slot Max.)
Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4)
Maximum download speed is 85.6kbps
Maximum upload speed is 21.4kbps |
| Speech Codec | Triple rate Codec
Half rate-ETS 06.20
Full rate-ETS 06.10
Enhance full rate-ETS 06.50/06.06/06.08 |
| I/O | 5 Digital Input ( 2 positive triggering and 3 negative triggering)
2 Analog Input Detection
5 Output
1 USB port |
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 230*160*60cm | 0.8Kg | 1 set |
| Carton | 470x340x310 | 14 | 20 sets |
Features * Tracking via SMS or GPRS (TCP/UDP)
* Current location report
* Tracking by time interval
* Tracking by distance interval
* Position logging capacity up to 10000+ waypoints
* SOS panic button
* Geo-fencing control
* Overspeed alert
* Engine-cut in safty mode
* Built-in motion sensor for power saving
* GOOGLE map URL for location via SMS,which shows you location on map via mobilephone.
* Remote listen in/Wiretapping
* Get location physical address name by SMS request & from the web-platform.
* Mileage calculation with longitude and latitude via SMS,view mileage data via GPS web-based tracking centre system.
* I/O: 5 digital inputs, 3 negative and 2 positive triggering; 5 outputs.

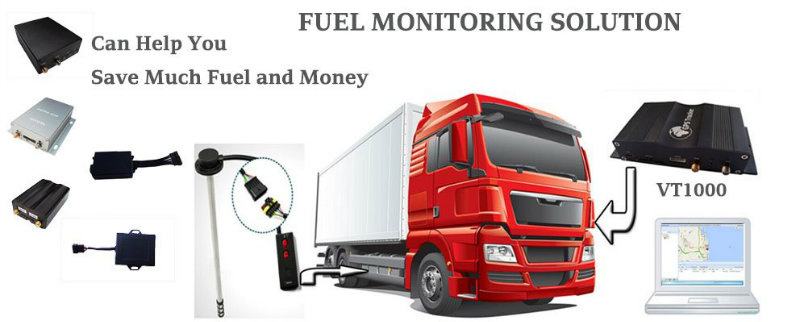

* Analog Input: 2 Analog Input For Temperature sensor & Fuel remote monitoring
* Can equip with RFID kit for auto alarm functions

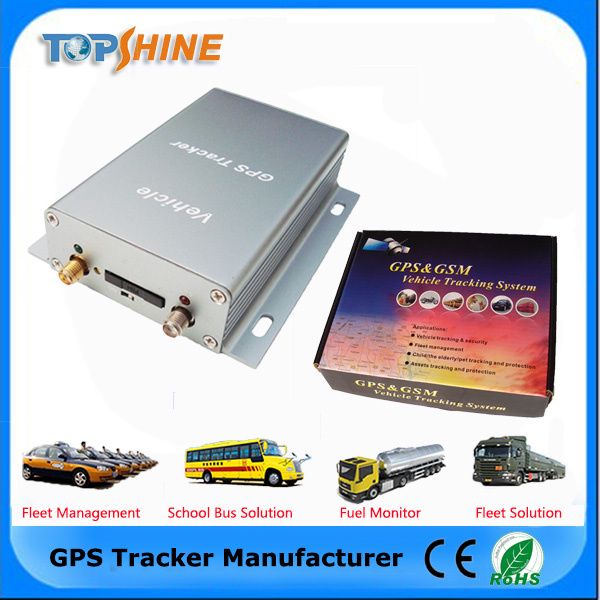

Package and Accessories VT310N unit: 1 unit
Wire : 1 piece
Relay: 1 piece
SOS button :1 piece
GPS antenna :1 piece
GSM antenna : 1 piece
Optional AccessoriesFuel sensor
Temperature sensor
Crash sensor
Smart phone reader
Speed Limiter
Microphone
Welcome to test our free tracking software
PC: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123
Our advantage
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.

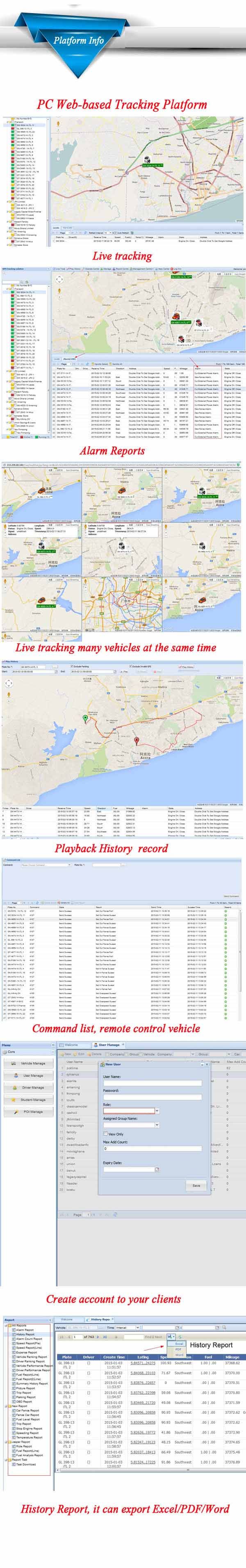

GPS tracking platform information
