2018 Newest Design Powerful RFID Car Motorcycle GPS Tracker MT100
Product overview
MT100 is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, built-in antenna and waterproof designed, easy to be installed and concealed, with power voltage range from 6V~24V, therefore can satisfy tracking and security demands for all kinds of vehicles.
Application
*Vehicle Real Time Tracking
*Car Security/Anti-Hijack
*Comprehensive fleet management
Specification
| Items | Specifications |
| Dimension | 80*58*22mm |
| Weight | 92g |
| Charging voltage | +9V~+24V |
| SIM Card type | 3V |
| Power consumption | Active mode(peak)<1.0 A
Active mode(avg.)<300 Ma
Idle mode <50 mA |
| Operating temperature | -20~+75 centigrade |
| Humidity | Up to 75% non-condensing |
| External SIM card | Connected via SIM card connector |
| External Antenna | Connected via 50 ohm coax connector |
| Button | 1 SOS and 1 power on/off |
| Microphone | Optional |
| Transmit power | Class 4(2W) for E-GSM 900 and 850
Class 1(1W) for DCS 1800
Class 1(1W) for PCS 1900 |
| Sensitivity | -104dBm minimum for E-GSM 900 AND 850
-102dBm minimum for DCS 1800
-102dBm minimum for PCS 1900 |
| GPS chip | Latest GPS SIRF-Star IIIchipset |
| GPRS | Multi-slot Class 8(4Rx, 1Tx., 5slot Max.)
Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4)
Maximum download speed is 85.6kbps
Maximum upload speed is 21.4kbps |
| Speech Codec | Triple rate Codec
Half rate_ETS 06.20
Full rate_ETS 06.10
Enhance full rate_ETS 06.50/06.06/06.08 |
| I/O | 3 Output, 2 Input, 1 Analog input and 1 RS232 port |
Features & Functions* OTA function (support over the air)
*Harsh acceleration alert/Braking alert
* Engine idle alert/low power alert/power failure alert
* Oil leaking/Refuel alarm
* ARM9 high speed microcontroller
* Support active/passive RFID for anti-theft alert and driver identification
* Fuel management
* 4M flash can save the maximum 26000 points data
* 6V~24V power supply
* Track by SMS/GPRS (TCP/UDP)
* Track by time interval
* Track by distance interval
* Anti-robbery with SOS button, call for help
* Geo-fence alarm
* Over speed alarm
* Built-in motion sensor for power saving
* Google map URL for location via SMS, which shows you location on map via mobile phone
* Get the physical address name via SMS
* Remote engine cut
* Mileage report
* I/O: 3 Output, 2 Input, 1 Analog input and 1 RS232 port
* Mini size, simple installation, low cost tracker for motorcycles, 12V and 24V vehicles
* Monitor the voice (optional)Picture

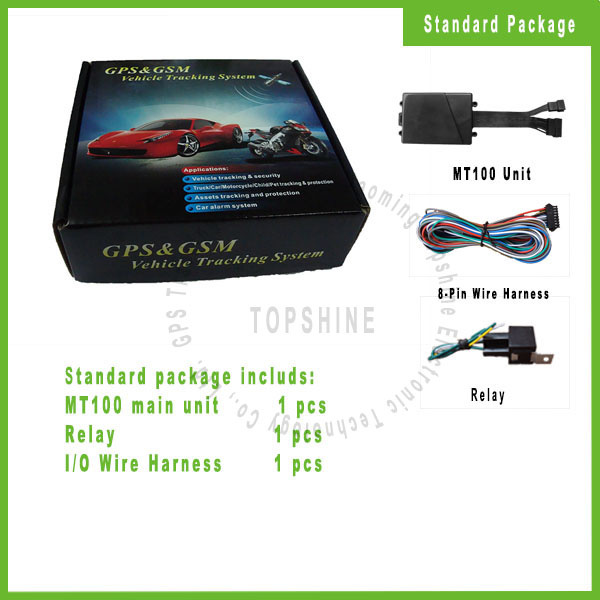

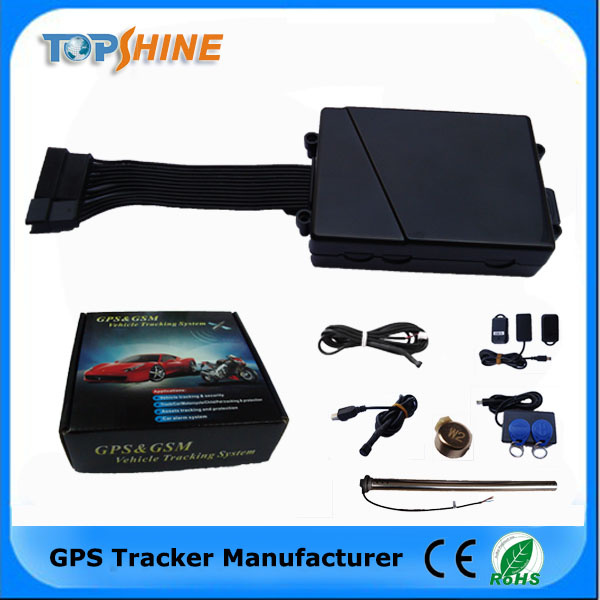

Package and Accessories
Standard Accessories
GPS trakcer
wire
relay
Optional Accessories
Active RFID Kits
Fuel Sensor
Siren
Passive RFID Kits
Welcome to test our free tracking software:
Web base : www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: test1
Password: 123
What can we do for you:
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
