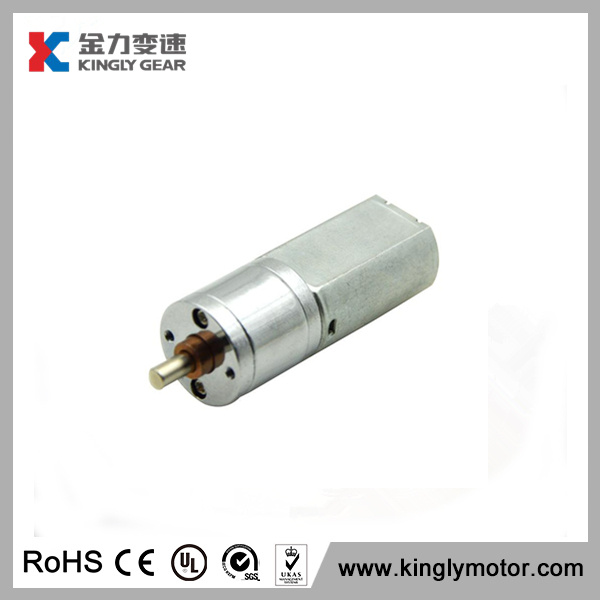

DC Motor JL-20A130
Power: 0.1- 2 W
Voltage: 1.5 to12V
Ruduction Ratio: 1: 10 to 1: 488
Length of Gear: 16mm to 20.5mm
Typical Aplications:
Automatic Valve
Remote-control Vahicle-lock
Electric-drive toy
Electric-Drive toy
Projector
Also We can design the motor according to your Voltage, Speed,
Shaft length and so on.
| | | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| | VOLTAGE | | | | | | | | |
| MODEL | | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| | V | r/min | A | r/min | A | mM·m | Kg·cm | W | mM·m | Kg·cm | A |
| JL-20A180-78 | 12 | 83 | 0.03 | 67 | 0.12 | 82.3 | 0.84 | 0.58 | 450.9 | 4.6 | 0.52 |
| JL-20A180-195 | 2.4 | 41 | 0.16 | 35 | 0.82 | 147 | 205.8 | 0.37 | 140.2 | 14.3 | 4.5 |
Packing&Shipping
Packing:The plastic membrane cover the foam box, and the products put into the foam box order by order, then use pasteboard cover the carton.Then put the products into the big carton .
Shipping:The products will be sent through Ningbo port, Shenzhen port and Guangdong port or the port that buyers pointed.
Our Service
First: The buyers inquiry will be replied at first time.
Second: The best suitable products will be recommended to buyers according to their requirements.
Third: The order will be arranged as soon as possible.
Forth:we provide the high quality products with high efficiency.
FAQ
Catalogue: ac,dc, brush, brushless, carbon-brush, electric-brush, gear motor. Gearbox.
Payment Terms:T/T L/C western union
Certificate:ROHS,CE CCC
Deliver time:Usually 20 days.
