20W 95dB Outdoor GSM Dcs Dual Band Repeater Bda
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,DAP |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |

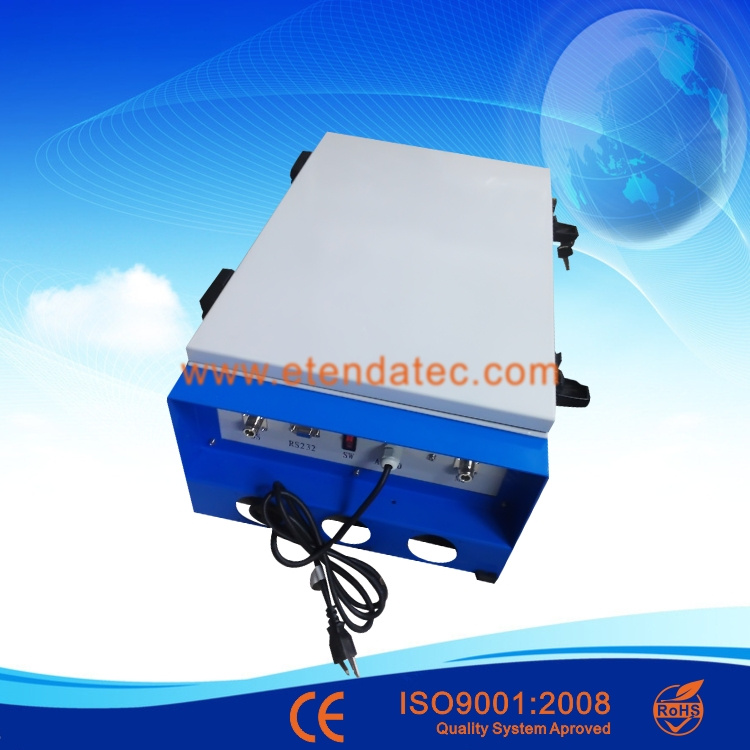

20W 95db Outdoor GSM DCS Dual Band Repeater BDAWe can also make other dual band repeater as customer,feel free to contact us for your requirement!
IntroductionRF Repeater is designed to enhance cellular network coverage and fill blind spots. Main operation of the repeater
is to receive low-power signal from Base Station (BS) via radio frequency (RF) transmission by its donor antenna,
process, amplify and forward the signal to Mobile Station (MS) in target coverage area by its service antenna.Features1.Aluminum alloy enclosure for excellent heat dissipation,waterproof design for all-weather installation;
2.Metal cavity filter technology inside, which gives wider receiving and sending separation, better gain flatness, higher stability, and lower noise figure;
3.Modules structure,full-duplex & dual-port design, and built-in power supply,easy for maintenance and installation;
4.High linearity PA; high system gain;
5.Allowing for continuous gain adjustment 31dB by 1dB step;
6.ALC technology used to provide auto amplitude fixing;

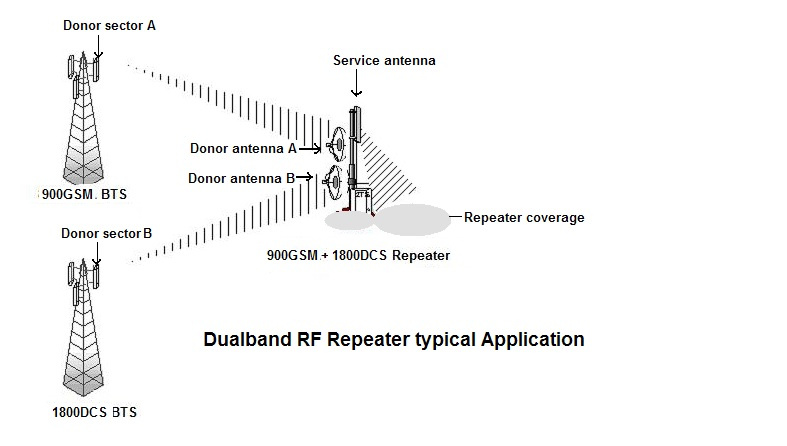

7.Press-key , Local PC GUI operation and Optional Remote Modem control.RF Repeater Typical Application
Specifications | Project | Uplink | Downlink |
| Working Frequency | GSM900 | 880 ~ 915 MHz | 935 ~ 960 MHz |
| DCS | 1710 ~ 1785 MHz | 1805 ~ 1880 MHz |
| Frequency Error | ≤±0.5ppm |
| Output Power | 33dBm | 40dBm |
| Gain | 85dB | 90dB |
| In-Band Ripple | GSM | ≤3dB |
| DCS | ≤5dB |
| WCDMA | ≤5dB |
| VSWR | ≤1.5:1 |
| Three order intermodulation | ≤-45dBc/30KHz |
| Gain adjustment accuracy | 0-10dB≤1dB |
| 10-20dB≤1dB |
| 20-30dB≤1.5dB |
| System Delay | ≤1.5us |
| Rejection band | Fo±0.4MHz | ≤-25dBm |
| Fo±0.6MHz | ≤-35dBm |
| Fo±1MHz | ≤-48dBm |
| Spurious Emission | 9KHz~150KHz≤-36dBm/10KHz |
| 150KHz~30MHz≤-36dBm/100KHz |
| 30MHz~1GHz≤-36dBm/100KHz |
| 1GHz-12.75GHz≤-30dBm/1MKHz |
| Noise Figure | ≤5dB |
| I/O Impedance | 50Ω |
| RF Connector | N-Type (Female) |
| Frequency error | ≤±5×10¯8 |
| Reliability | To the GB6993-86 standard |
| Electromagnetic compatibility | To the ETS200300 694-4 standrd |
| Power | AC110V or AC220V |
| Temperature Range | -25ºC~+65ºC |
| Relative humidity | ≤95% |
| Size | 540X360X230mm |
| Weight | 25kg |
| Operation Configuration | LCD Display, Manual Key-press, PC RS232 Port |
| GSM MODEM (Optional) |
| Ethernet RJ45 (Optional) |

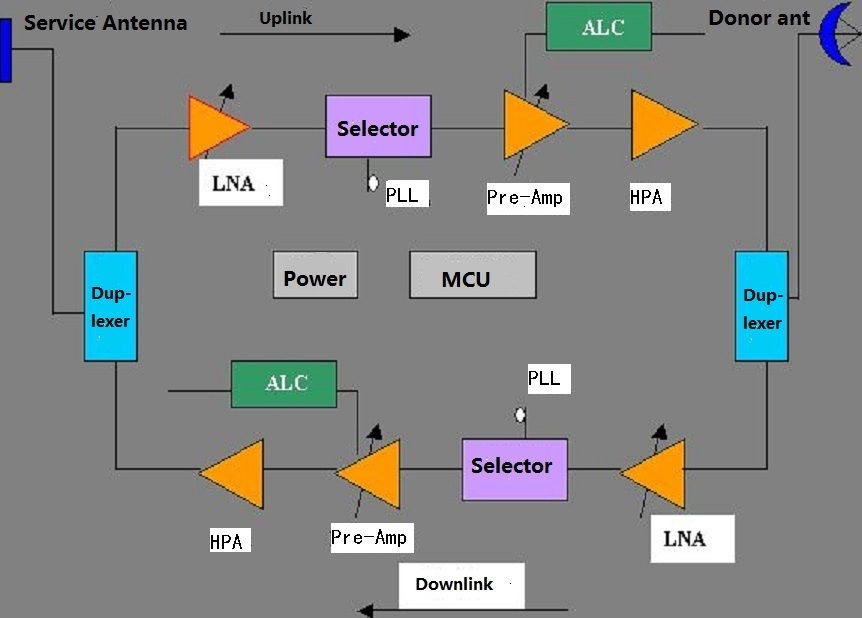

Schematic
Working principle:When the repeat antenna receives uplink signals from a subscriber, the signals will undergo processing of low-noise amplifier, filter and power amplifier first, and then be transmitted to the base station, thus accomplishing connection between subscribers in signal blind area and base station.
In this way, the blind areas are eliminated.
Considering receiving signal intensity and coverage size may vary with sites where repeater is located, it is necessary to control the gain and output of the repeater.
Additionally, considering the fading effect in spatial signal transmission, auto amplitude fixing for output is required.For this purpose, MGC and ALC circuits are included in the uplink/downlink channels.
| Prod Model: |
ET-CRGD20WD-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Size: |
54X36X23cm |
| Product Weight: |
25kg |
| Relative Humidity: |
<95% |
| Vswr: |
1.5 |
| Power Supply: |
110/220VAC |
| Group Delay: |
1.5us |
| Inband Flatness: |
3dB |
| Noise Figure: |
5dB |
| Three Order Intermodulation: |
<-45dbc |
| RF Connector: |
N-Female |
| Type: |
Signal Repeater |
| Transmission Medium: |
Cable |
| Standard: |
Standard |
| Lightning Protection: |
With Lightning Protection |
| Certification: |
ISO |
| Condition: |
New |
