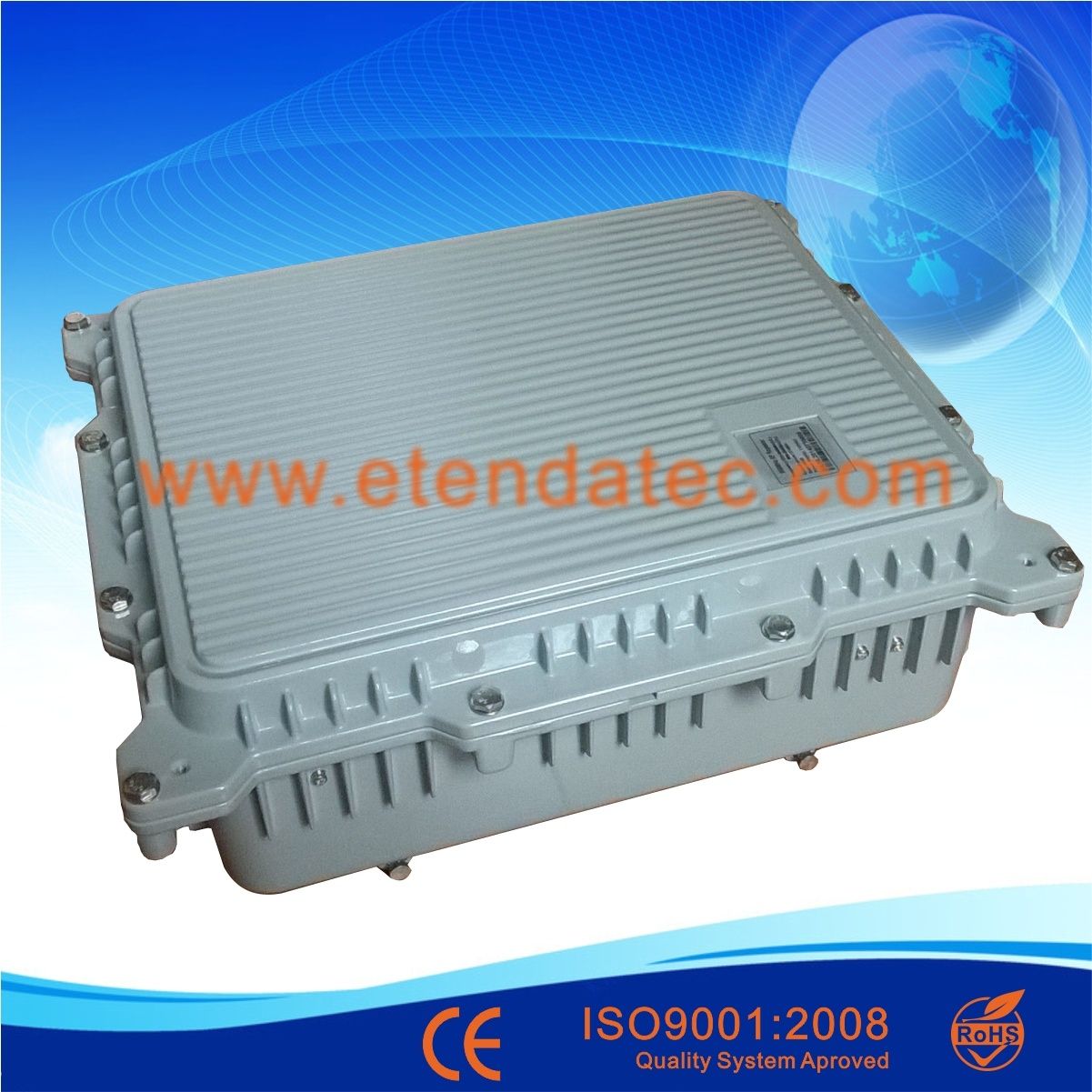

5W 37dBm 850MHz Signal Booster Amplifier CDMA Repeater
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
5W 37dBm 850MHz Signal Booster Amplifier CDMA RepeaterIntroductionRF Repeater is designed to enhance cellular network coverage and fill blind spots. Main operation of the repeater
is to receive low-power signal from Base Station (BS) via radio frequency (RF) transmission by its donor antenna,
process, amplify and forward the signal to Mobile Station (MS) in target coverage area by its service antenna.Features1.Aluminum alloy enclosure for excellent heat dissipation,waterproof design for all-weather installation;
2.Metal cavity filter technology inside, which gives wider receiving and sending separation, better gain flatness, higher stability, and lower noise figure;
3.Modules structure,full-duplex & dual-port design, and built-in power supply,easy for maintenance and installation;
4.High linearity PA; high system gain;
5.Allowing for continuous gain adjustment 31dB by 1dB step;
6.ALC technology used to provide auto amplitude fixing;

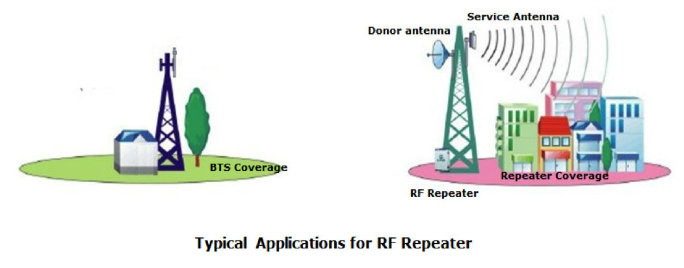

7.Press-key , Local PC GUI operation and Optional Remote Modem control.RF Repeater Typical Application
Specifications| Project | Uplink | Downlink |
| Working Frequency | CDMA850 | 824 ~ 849 MHz | 869 ~ 894 MHz |
| GSM850 | 824 ~ 849 MHz | 869 ~ 894 MHz |
| GSM900 | 880 ~ 915 MHz | 935 ~ 960 MHz |
| DCS | 1710 ~ 1785 MHz | 1805 ~ 1880 MHz |
| PCS | 1850 ~ 1910 MHz | 1930 ~ 1990 MHz |
| WCDMA | 1920 ~ 1980 MHz | 2110 ~ 2170 MHz |
| AWS | 1710 ~ 1755 MHz | 2110 ~ 2155 MHz |
| LTE | 700 MHz( A, B, C, D band optional) |
| 2500 ~ 2570 MHz | 2620 ~ 2690 MHz |
| Frequency Error | ≤±0.5ppm |
| Output Power | 27dBm | 37dBm |
| Gain | 80dB | 85dB |
| In-Band Ripple | GSM | ≤3dB |
| DCS | ≤5dB |
| WCDMA | ≤5dB |
| VSWR | ≤1.5:1 |
| Three order intermodulation | ≤-45dBc/30KHz |
| Gain adjustment accuracy | 0-10dB≤1dB |
| 10-20dB≤1dB |
| 20-30dB≤1.5dB |
| System Delay | ≤1.5us |
| Rejection band | Fo±0.4MHz | ≤-25dBm |
| Fo±0.6MHz | ≤-35dBm |
| Fo±1MHz | ≤-48dBm |
| Spurious Emission | 9KHz~150KHz≤-36dBm/10KHz |
| 150KHz~30MHz≤-36dBm/100KHz |
| 30MHz~1GHz≤-36dBm/100KHz |
| 1GHz-12.75GHz≤-30dBm/1MKHz |
| Noise Figure | ≤5dB |
| I/O Impedance | 50Ω |
| RF Connector | N-Type (Female) |
| Frequency error | ≤±5×10¯8 |
| Reliability | To the GB6993-86 standard |
| Electromagnetic compatibility | To the ETS200300 694-4 standrd |
| Power | AC110V or AC220V |
| Temperature Range | -25ºC~+65ºC |
| Relative humidity | ≤95% |
| Size | 370X310X180mm |
| Weight | 11kg |
| Operation Configuration | LCD Display, Manual Key-press, PC RS232 Port |
| GSM MODEM (Optional) |
| Ethernet RJ45 (Optional) |
| Prod Model: |
ET-CR5WS-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
13kg |
| Packing Size: |
43cm X 36cm X 23cm |
| Gain: |
85dB |
| Power: |
5W |
| Type: |
Signal Repeater |
| Transmission Medium: |
Cable |
| Standard: |
Standard |
| Lightning Protection: |
With Lightning Protection |
| Certification: |
CE |
| Condition: |
New |
