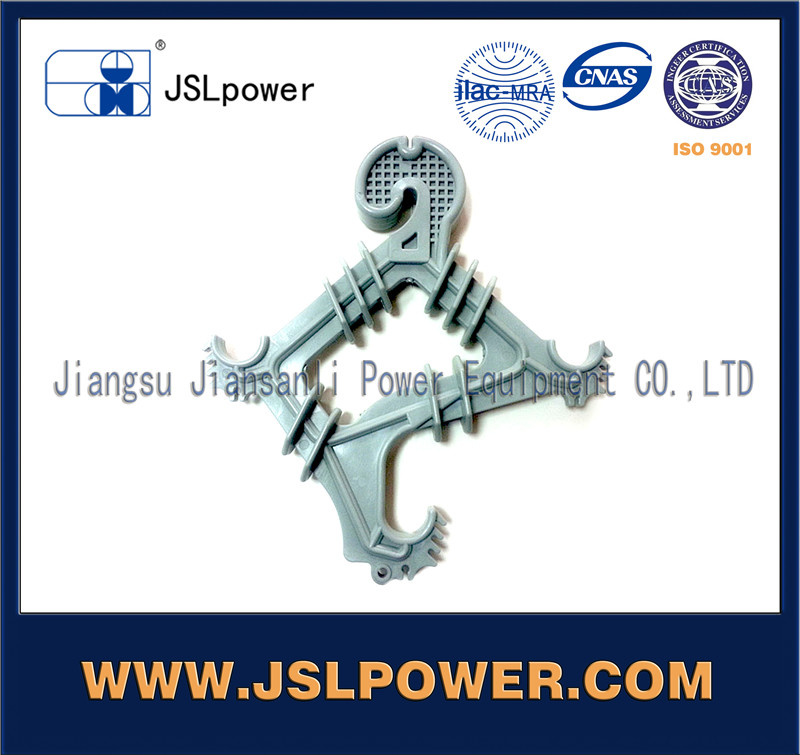

22-33kv HDPE Modified Polyethylene Cable Spacer
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
Specifications
About the HDPE cable spacer
It's Hard Materials different from the silicone insulator.
Also called:Modified polyethylene cable spacer or High-Density polyethylene cable spacer.It's a new material for transmission line cable spacer.It's suits for polluted area or salty coastal area in tropical zone.Mainly applied in electrical syetem of 15kV,22kV and 35kV.
Characteristics
1.Unbreakable and light weight
2.Easiest handing and transportation
3.Water repelling surface
4.Long service life
5.Non-toxic,non-standing and recyclable
22-33kV HDPE Modified Polyethylene Cable Spacer

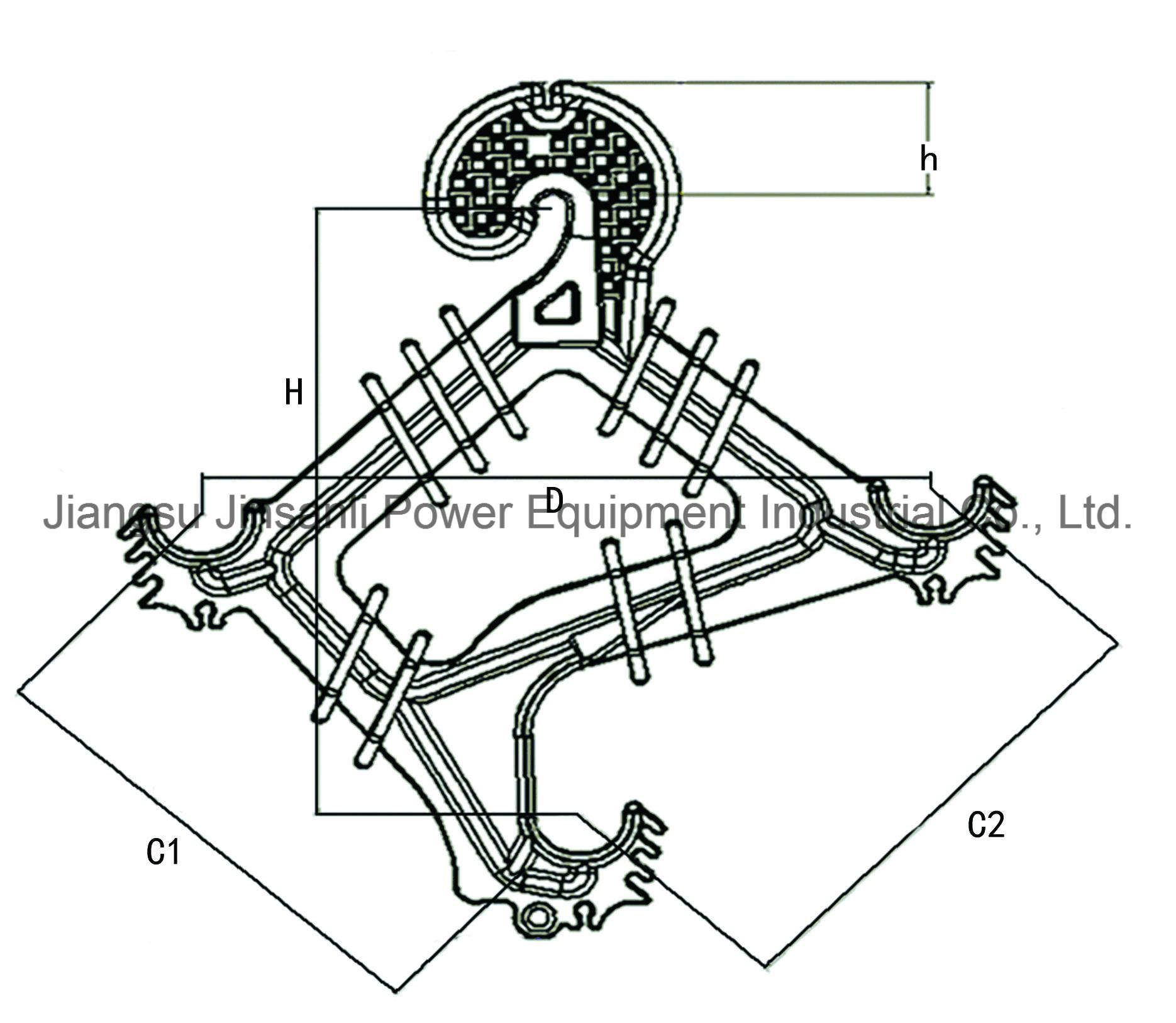

| Main Dimensions and Standard Particulars |
| Rated Voltage of system Line to Line up to | 22-33kV |
| Electrical Characteristics | Low-Frequency withstand voltage dry 1 min | 70kV |
| Low-Frequency flashover voltage dry | 90kV |
| Critical dry impulse flashover voltage-Positive | 130kV |
| Mechanical Characteristics | Ultimate mechanical strength | 8000N |
| Main Dimensions(mm) | D | 357 |
| H | 340 |
| h | 55 |
| C1 | 250 |
| C2 | 250 |
| Weight(kg) | 1.2 |
| Qty(pcs)/Ctn | 6 |
| Qty(pcs)/20FT | 2520 |
Jiangsu Jinsanli Power Equipment Industrial Co., Ltd
| Prod Model: |
JHW-22/33CS-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Low-voltage |
| Type: |
A Type Insulator |
| Material: |
HDPE |
| Structure: |
Cable Spacer |
| Connection Method: |
Suspension Type |
| Size Of Bearing Capacity: |
8000n |
| Color: |
Light Grey |
| Brand: |
Jslpower |
