35kv HDPE Modified Polyethylene Cable Spacer
| Price: |
Negotiable/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
Specifications
It's Hard Materials different from the silicone insulator.
Also called:Modified polyethylene cable spacer or High-Density polyethylene cable spacer.It's a new material for transmission line cable spacer.It's suits for polluted area or salty coastal area in tropical zone.Mainly applied in electrical syetem of 15kV,22kV and 35kV.
Characteristics
1.Unbreakable and light weight
2.Easiest handing and transportation
3.Water repelling surface
4.Long service life
5.Non-toxic,non-standing and recyclable

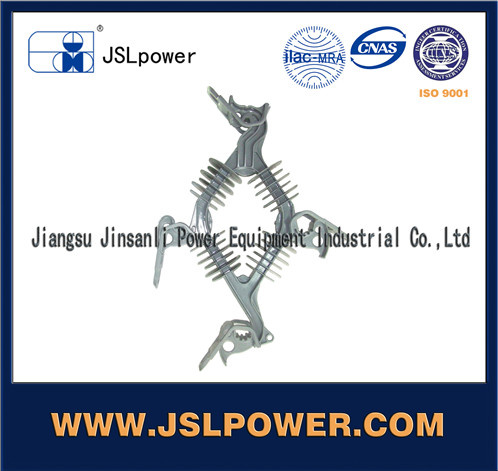

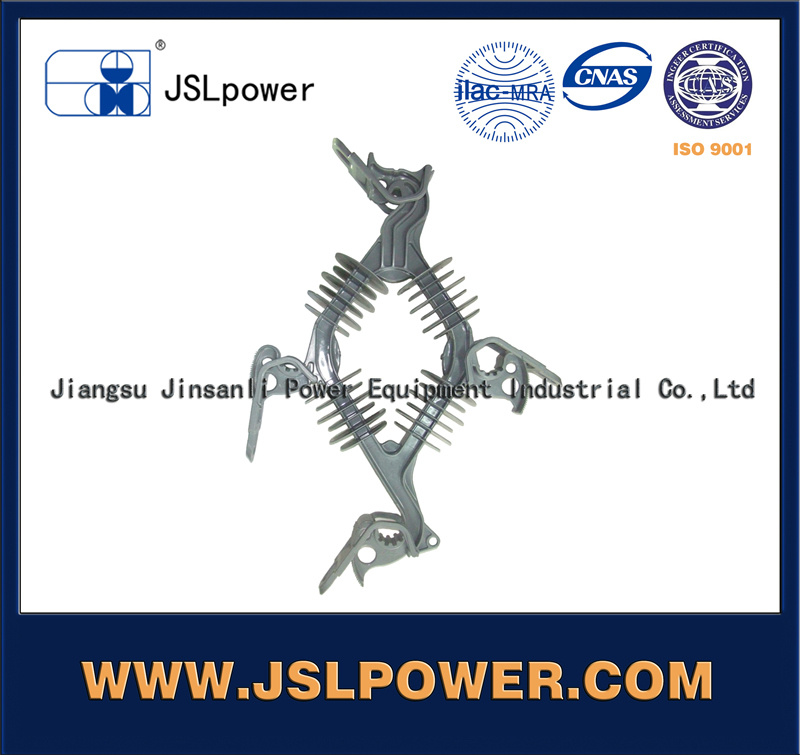

35kV HDPE Modified Polyethylene Cable Spacer
| Main Dimensions and Standard Particulars |
| Rated Voltage of system Line to Line up to | 35kV |
| Electrical Characteristics | Low-Frequency withstand voltage wet 1 min | 70kV |
| Low-Frequency flashover voltage wet | 80kV |
| Creepage Distance | 715mm |
| Mechanical Characteristics | Ultimate mechanical strength | 8000N |

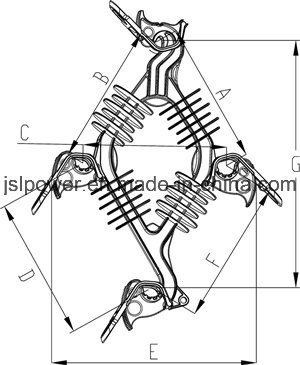

| Main Dimensions(mm) | A | 331.5 |
| C | 336 |
| D | 335 |
| E | 470 |
| G | 603 |
| Weight(kg) | 2.2 |
Jiangsu Jinsanli Power Equipment Industrial Co., Ltd
| Prod Model: |
JHW-35CS-02 |
| Application: |
High-temperature |
| Type: |
A Type Insulator |
| Material: |
HDPE(Modified Polyethylene) |
| Structure: |
Spacer |
| Connection Method: |
Suspension |
| Size Of Bearing Capacity: |
8kn |
| Color: |
Gray |
| Brand: |
Jslpower |

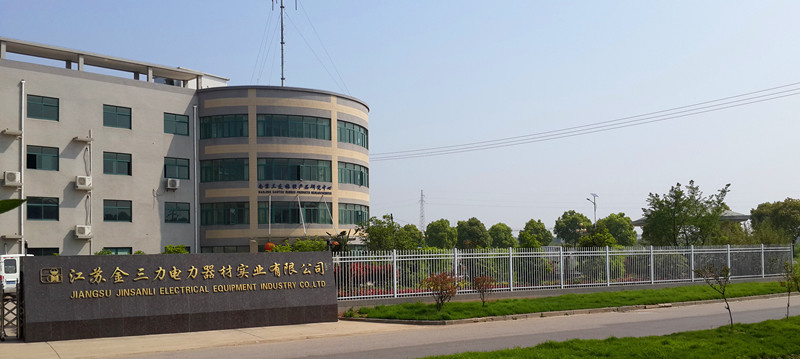

Jiangsu Jinsanli Power Equipment Industrial Co., Ltd., specialized in Insulators, our company located in Nanjing, Jiangsu province, welcome to contact us for details!
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
