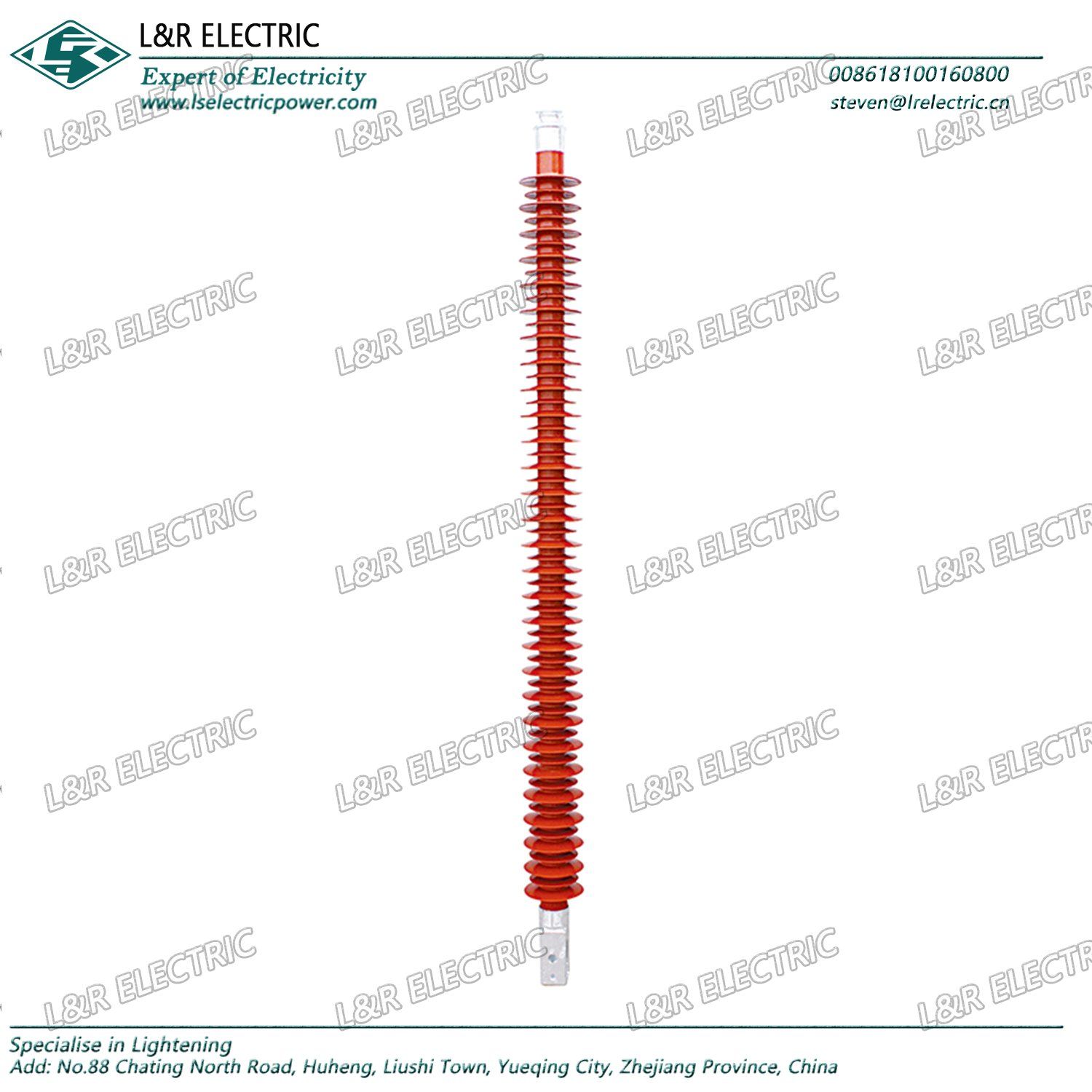

220kv Cross Arm Composite Insulator

Name: 220kv Cross Arm Composite Insulator
Brand: all-electronics-online.com
SKU: 836823865
Availability: InStock
Rating: 4.5 (147 reviews)

Price:	US $ 22.37-22.89/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Application for cross-arm insulators

These products for the urban net rebuild can effectively solve the shortage of corridor in urban power line, reduce the pole
height and economy lots of financial and material resources. Because of the strength, to avoid the porcelain cross-arm
causes to concatenate breakage of high strength accident, and fine anti-pollution. And the products of porcelain cross-arm
cannot instead of it

Parameter

Product Model	Rated Voltage (KV)	Rated Mechanicalbending load(kN)	Structure Height (mm)	Minimum Arc distance (mm)	Minimum creepage distance (mm)	Diameter of shed (mm)	Lightning impulse withstand voltage (peak kV)	P.F. 1min wet withstand voltage (kV)
FS-10/5	10	5	280	130	300	85	75	42
FS-15/6	15	6	400	245	520	80	75	42
FSW-35/5	35	5	625	480	1400	145/115	265	95
FS2-35/5	35	5	660	480	1120	142	265	95
FSW-66/10	66	10	790	650	1920	160/140	325	140
FSW-110/10	110	10	1260	1060	3360	215/185	550	230
FSW-220/2.5	110	5	2165	1920	5510	160/140	1050	395
FS-110/6	110	6	1220	965	2860	160/140	550	230

Prod Model:	FSW-220/2.5
End Fitting:	Galvanized Steel
Application:	High-voltage
Material:	Composite Polymer
Type:	B Type Insulator
Structure:	Cross Arm Insulator
Connection Method:	Cross Arm Insulator
Size Of Bearing Capacity:	5kn
Color:	Red or Grey
Brand:	L&R

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
