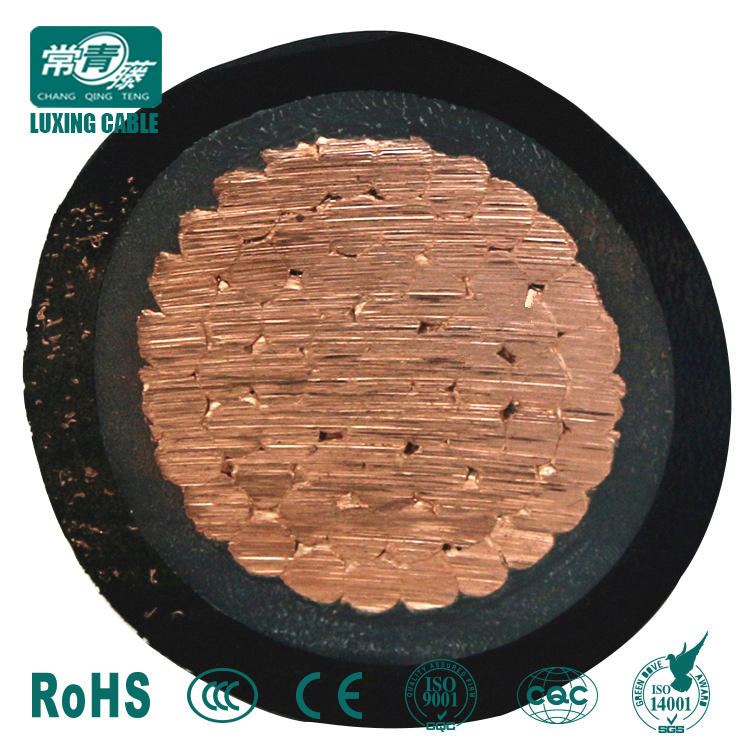

240mm Cable/240mm Power Cable/240mm Power Cable

240mm cable/240mm power cable/240mm power cable

Product Description

240mm cable/240mm power cable/240mm power cable

Low & Medium Voltage 0.6/1KV ~ 26/35KV Copper Aluminum Conductor XLPE Insulation Power Cable

Specifications and products ranges

1, Information

 a, Cores and sections

1,  2,  3,   3+1,   3+2,    3+3,  4,    4+1,    4+2,   5 and so on.

No. Of Core and Sectional Area(mm2) :
1 Core 1.5-800     25-800     25-1200     25-1200     35-1200     50-1200     50-1200     50-1200
2 Core 1.5-185     25-185
3 Core 1.5-400     25-400     25-400     25-400     35-400     50-400     50-400     50-400
4 Core 2.5-400     25-400
5 Core 2.5-400       25-400

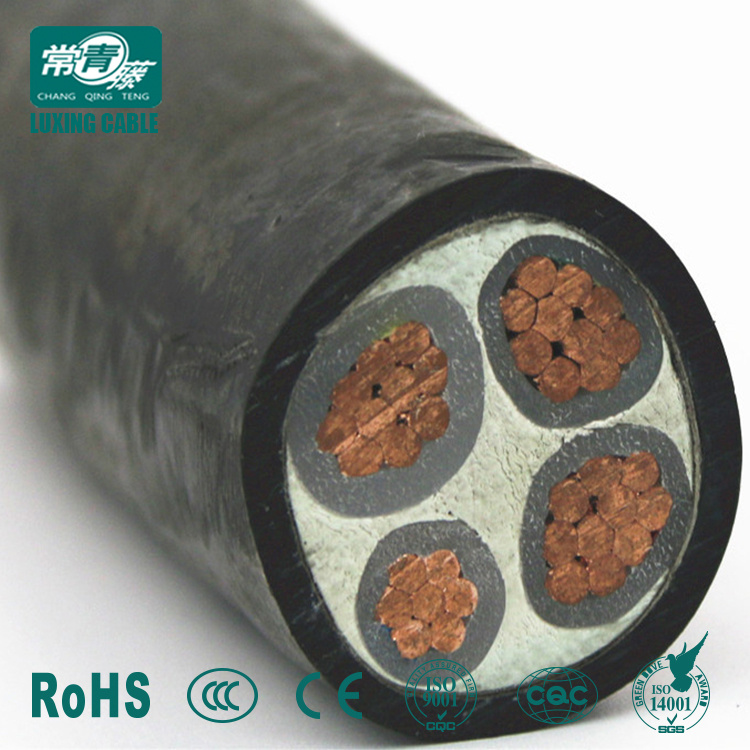

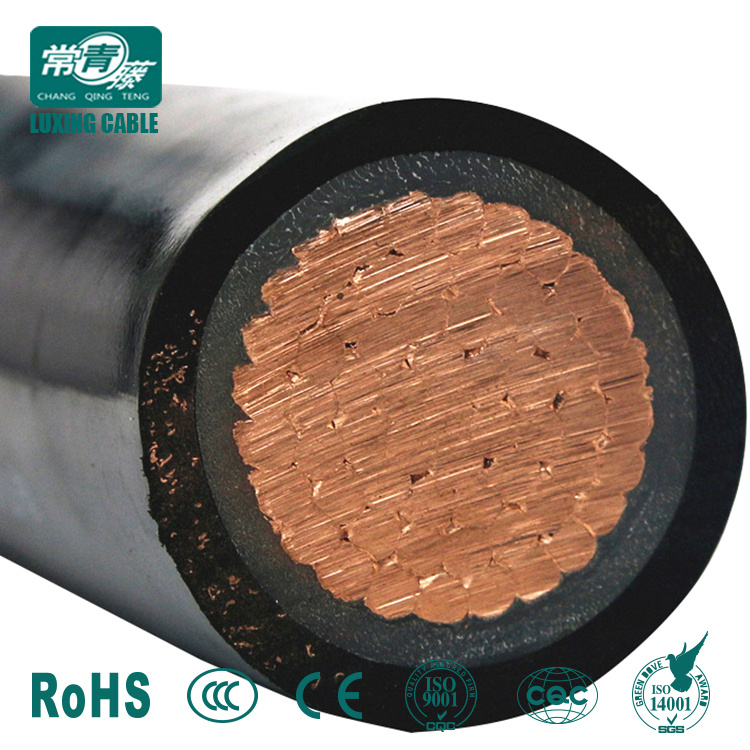

b, Construction:

Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)

c, Nominal Section
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800

d. Operating Features:
 1)The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.
2)Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
 Remarks: D means practical external diameter of the cable

e, Features

 XLPE  insulated power cable do not has excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion,
heat resistance and environmental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is convenient to
use and can be laid with no restriction of different level.

 XLPE insulated steel wire armored power cable: XLPE/PVC insulated power cable has a number of advantages over paper insulated and PVC
insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting anti-chemical
corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.


Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation
cross-linking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non-halogented and
three classes of A/B/ C.

 2 Standard:

IEC60502 and BS6346 VDE, AS/NZS, UL etc or as customer's request.

 3 The Rated Voltage(KV):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

 4 Application:

1)These cables are most suitable for direct burial or for installation on trays or ducts,  Where there is a risk of mechanical damage, armored cables
should be used.

2) For laying in ground along route with large difference of level able to bear external mechanical forces.

We supply a wide range of Power Cables suitable for our export customers. We have segmented them as below:

• General Purpose Electrical Wires & Cables

• Low Voltage Cables

• Medium Voltage Cables

• Control Cables

• Rubber Cables,

If you cannot see the specification of a particular cable you are looking to source, please do not hesitate to contact us.

Certifications

ISO9001/14000  CCC  CE  IEC  BS  EN  VDE
