Prod Model: |
GYXTC8Y |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item Name: |
Fiber Optic Cable |
Color: |
Black |
Model Number: |
Gyxtc8y |
Stardard: |
Itu-T G652D Standard |
Fiber Count: |
Xx Cores Single-Mode Optical Fiber |
Cable Type: |
PE |
Mode: |
Single Mode |
Point Discontinuity: |
< 0.05 dB |
Operating Temperature Range: |
-40oc to +60oc |
Service: |
OEM/ODM |
Application: |
Probe |
Type: |
Single-mode Fiber |
Connection Structure: |
SC |
Certification: |
CCC |
Sheath Material: |
PE |
Product Description
1. Cable Construction

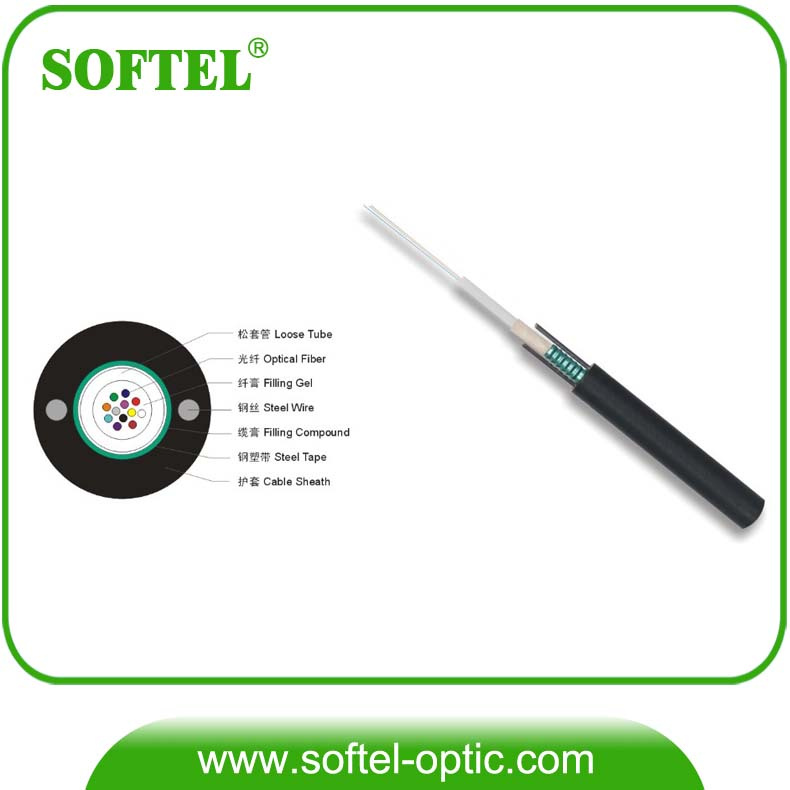

1.1 Cable cross-section
2. Cable Specification
2.1 Sheath marking
2009 GYXTC8Y XX B1.3 (G.652D) XXXXm |
| : Softel |
2009 | : Manufacture year |
GYXTC8Y | : Cable type |
B1.3 (G.652D) | : XX cores single-mode optical fiber (ITU-T Rec. G.652D) |
XXXXm | : Mark of meters |
*The marking is printed every 1 meter; **"G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 Single Mode Optical Fiber. |
2.2 The color of marking is white, but if the remarking is necessary, the yellow color marking shall be printed newly on a different position.
2.3 An occasional unclear of length marking is permitted if both of the neighboring markings are clear;
2.4 The both cable ends are sealed with heat shrinkable end caps to prevent water ingress.
2.5 Fiber color code
No | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Slate | White |
No | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
No | 13 | 14 | 15 | 16 | 17 | 18 |
Color | Blue+R | Orange+R | Green+R | Brown+R | Slate+R | White+R |
No | 19 | 20 | 21 | 22 | 23 | 24 |
Color | Red+R | Natural+R | Yellow+R | Violet+R | Pink+R | Aqua+R |
* "R" means Ring Mark.
2.6 Cable structure and parameter
Fiber number | Tube Diameter | Messenger steel wire diameter | Sheath thickness (nominal*) | Diameter W*H (Nominal*) | Weight (Approx.) |
mm | mm | mm | mm | kg/km |
2~12 | 3.0 | 1.6mm | 1.0 | 5.0×10.1 | 45 |
14~24 | 3.6 | 1.6mm | 1.0 | 5.6×10.7 | 50 |
* The nominal sheath thickness may vary by ±0.2mm.
** The nominal outer diameter and height may vary by ±0.4mm.
3. Fiber Properties
3.1 The properties of single mode optical fiber (ITU-T Rec. G.652D)
Item | Specification |
Fiber type | Single mode |
Fiber material | Doped silica |
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm | £ 0.36 dB/km £ 0.32 dB/km £ 0.22 dB/km £ 0.30 dB/km |
Point discontinuity | £ 0.05 dB |
Cable cut-off wavelength | £ 1260 nm |
Zero-dispersion wavelength | 1300 ~ 1324 nm |
Zero-dispersion slope | £ 0.093 ps/(nm2.km) |
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm | £3.5 ps/(nm. km) £5.3 ps/(nm. km) £18 ps/(nm. km) £22 ps/(nm. km) |
PMDQ (Quadrature average*) | £0.2 ps/km1/2 |
Mode field diameter @ 1310 nm | 9.2±0.4 um |
Core / Clad concentricity error | £ 0.5 um |
Cladding diameter | 125.0 ± 0.7 um |
Cladding non-circularity | £1.0% |
Primary coating diameter | 245 ± 10 um |
Proof test level | 100 kpsi (=0.69 Gpa), 1% |
Temperature dependence 0oC~ +70oC @ 1310 & 1550nm | £ 0.1 dB/km |
* PMDQ is a link of 20 cable sections (M) and a probability level of 0.01% (Q).
4. Characteristic of Optical Cable
4.1 Mechanical & environmental characteristics
4.1.1 Cable bending radius: 10 x cable diameter (during operation)
20 x cable diameter (during installation)
4.1.2 Temperature range
Operating temperature range | -40oC to +60oC |
Storage / Transport temperature range | -50oC to +70oC |
Installation temperature range | -20oC to +50oC |
4.2 Main mechanical & environmental characteristics test
NO | ITEM | TEST METHOD | ACCEPTANCE REQUIREMENTS |
1 | Tensile Strength IEC 794-1-E1 | - Load: 1, 000 N - Length of cable under load: 50m | - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
2 | Crush Test IEC 60794-1-E3 | - Load: 300 N/100mm - Load time: ≥1min | - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
3 | Impact Test IEC 60794-1-E4 | - Points of impact: 5 - Times of per point: 5 - Impact energy: 1.0Nm - Radius of hammer head: 12.5mm - Impact rate: 2sec/cycle | - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
4 | Repeated Bending IEC 60794-1-E6 | - Bending Dia.: 20 x OD - Load: 100 N - Flexing rate: 3sec/cycle - No. of cycle: 30 | - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
5 | Torsion IEC 60794-1-E7 | - Length: 1m - Load: 100 N - Twist rate: 1min/cycle - Twist angle: ±180° - No. of cycle: 10 | - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
6 | Water Penetration IEC 60794-1-F5B | - Height of water: 1m - Sample length: 3 m - Time: 1 hour | - No water shall have leaked from the opposite end of cable |
7 | Temperature Cycling IEC 60794-1-F1 | - Temperature step: +20oC→-40oC→+60oC →+20oC - Time per each step: 12 hrs - Number of cycle: 1 | - Loss change £ 0.1 dB @1550 nm - No fiber break and no sheath damage. |
8 | Compound Flow IEC 60794-1-E14 | - Sample length: 30 cm - Temp: 70°C ± 2°C - Time: 24 hours | - No compound flow |
9 | Sheath High Voltage Test | - On line test - 9t KV (t-sheath thickness) | - No sheath breakdown |
5. Packing and Marking
5.1 Packing
5.1.1 Each single length of cable shall be reeled on Non-fumigated Full Wooden Drum suitable for long distance shipment.
5.1.2 Covered by plastic buffer sheet.
5.1.3 Sealed by strong wooden battens.
5.1.4 At least 1 m of inside end of cable will be reserved for testing.
5.1.5 Drum length
5.1.5.1 Standard drum length is 4000m±5%;
5.1.5.2 Single length not less than 95% of standard length per drum shall be permitted for quantity not exceeding 10% of the total supply;
5.1.5.3 Total quantity is at least the ordered quantity.
5.2. Drum Marking
5.2.1 Cable drum
Manufacturer brand;
Roll-direction arrow;
Cable outer end position indicating arrow;
The word "OPTICAL FIBER CABLE";
Origin, The word "MADE IN CHINA";
Caution plate indicating the correct method for loading, unloading and convey the cable;
Other customer information such as contract no., project no., and delivery destination. (if needed)
5.2.2 Marking plate
Product name;
Cable type and size;
Drum length;
Gross / Net weight in kilograms;
Drum number in meters;
Manufacturer's name;
Manufacturing year and month;
Project number, contract number or purchasing order number (if needed).
5.3 Cable quality certificate documents
Test report.
