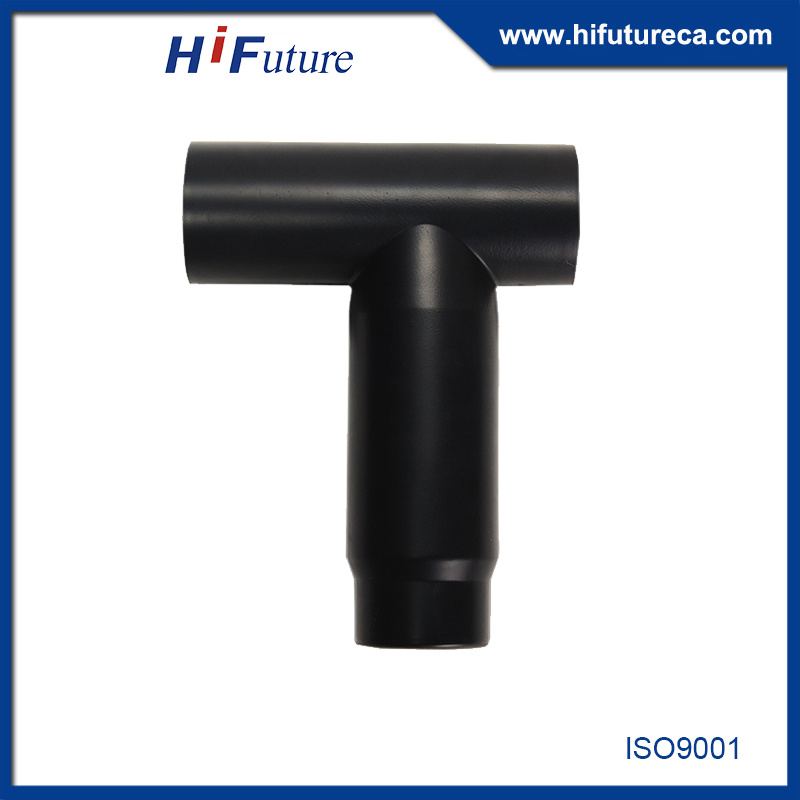

24kv Deadbreak Silicone Rubber Screened Front and Rear Connectors
| Price: |
US $ 150-200/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
24kv Silicon Rubber Separable Connector with KEMA Certificate
Product Advantage:1.Adopt imported silicon rubber raw materials and imported equipment to ensure product quality stability.
2.Product design methods, methods has achieved international advanced level, which meet the requirement of operation under various working conditions, and reasonable external dimensions which meet the requirement of compact switch cabinet multipath outlet Protection.
3.Each batch of raw material have been pass the mechanical performance index spot check, which ensure product quality from the source.
4.All finished products 100% will need to passed factory performance test (power frequency withstand voltage, partial discharge);
5.Dust-free workshop production protects the products from the impact of external environment and ensures the product quality stability;
6.Years of experience in installation and operation, professional engineering installation team, can provide on-site installation and guide product installation, ensure the quality during the product installation;
7.Products applicable to 26/35 (40.5) kV or less of full range of electrical system, widely used in cable branch box, ring counters, box-type substation, the column sub-switch, in line with EN50180, EN50181 and DIN47636, IEEE386 design standards, cable section covering 25 ~ 630mm².
8. All products conform to IEC 60502, GB12706.4 standards and passed type tests of national authority organization, safe and reliable with long-term operation.
Technical Parameter: | 12/20kV(24kV) separable connector technical parameter |
| 12/20kV separable connector | rated voltage | 12/20kV |
| rated current | 630A/1250A |
| the highest operating voltage | 24kV |
| cable accessories conductor material | copper,copper and aluminum |
| long-time running temperature | -40ºC to 95ºC |
| rated current conductor temperature rise not higher than | 50K |
| short circuit temperature | 250ºC,less than 5s |
| main insulation material | high temprature liquid silicone rubber |
| power frequency withstand voltage | 54kV,5min, no flashover, no breakdown |
| partial discharge | 20kV,≤5pc |
| impulse voltage test | 125kV,±10 times |
| short circuit thermal stability (conductor) | 30KA,2s 2 times, no visiable damage |
| short circuit dynamic stability | 110kA,not less than 91ms,no visiable damage |
| screened resistance test | before and after aging, screened resistance not bigger than 5000Ω |
| screened leakage current | under 24KV, leakage current not bigger than 0.5mA |
| has been recognized by Holand "KEMA". |
Quality Control System
Hifuture devote itself to establish a first grade enterprise and a famous brand. During the operation, production, and management, Hifuture has been implementing the enterprise tenet of "customer first, quality first and people first", and making great effort to build an efficient, progmatic,innovative corporate culture.
Our commitment:
By providing customers with the excellent, environmental, safe and reliable city and country power distribution network and service to putting an end to non-performing products. Abide by laws and regulations and other requirements.
Improving product quality by constantly improve the equipment, technique lifting, technique improving, production improving and quality management.
And improving product environmental performance through carrying out energy-saving, consumption reduction, emission reduction and pollution prevention. Reducing the potential health and safe problems during the production to prevent and decrease the accident.
All staff participation, clear statement of safe responsibility of quality, environment, and occupational health and safety. Providing effective training and necessary resource to enhance the employee quality and the awareness of environment and occupational health and safety.
Improving staff's qualities and abilities to make sure each employee perform their duty properly and improve their job performance constantly.
Continuous improvement of system operation suitability, adequacy, effectiveness by external and internal audit, management review, take prevented actions. Analyze the experience of quality, environment, health and safety area with the relevant parties. Advance the idea of quality, environment, health and safety.
| Prod Model: |
HLCPS-Q/H-24/630 |
| Type: |
Screened |
| Material: |
Silicone Rubber |
| Current: |
630/1250A |
| Cross Section: |
25-400 Sqmm |
| Application: |
Power |
| Gender: |

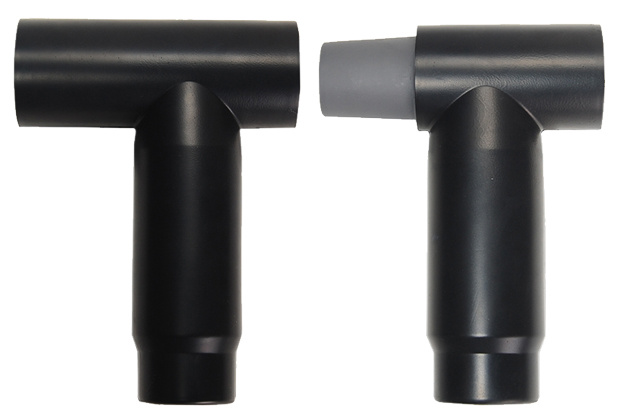

Front Connector and Rear Connector |
Shenzhen Hifuture Electric Co., Ltd. is committed to professional power distribution grid equipment and integrated solutions. Hifuture Electric comprises of three divisions: Electrical Insulating Material Division, MV & LV Equipment Division, and New Energy Division.
The Electrical Insulating Material Division, with its new macromolecule electrical insulation material technology, is specialized in silicone rubber material, APG products, and SMC material.
The division has developed a wide range of cold shrinkable Cable Termination, Cable Joint, Separable Connector, Busbars and Connectors, Surge Arrester, APG Epoxy Resin Bushing, Dry-type Tubing Busbars, and other accessories, up to 40.5kV.
Hifuture Electric is the earliest manufacturer in China of silicone rubber cable accessories. As early as in 2004, its Cable Connectors were already certified by KEMA. Today, Hifuture Electric is partner of the world's giants in the electric industry.
Its SMC products include Meter Box, Power Distribution Cabinet, modular combination type cabinets for Switchgear, Ring Main Unit, Compact Substation, Telecom cabinet, etc. Hifuture has its own mould processing center and is able to quickly design and develop new moulds for new products tailored to your requirements.
The MV & LV Equipment Division is mainly engaged in power Distribution Grid Equipment, including high-quality SF6 Gas-insulated Ring Main Unit, Low-voltage Switchgear, Power Distribution Switch/Control board, Cable Branching/Junction Cabinet, etc.
Hifuture Electric has been an approved supplier to the China State Grid and China Southern Power Grid.
Hifuture Solid Insulation Tubing Busbar is also manufactured in this division with TCE(Triple Co-Extrusion) technology. Hifuture is the pioneer in adopting TCE technology on Tubing Busbar. It has developed its own manufacturing equipment and is proud to have participated in setting the product standards.
The New Energy Division is a new business unit of Hifuture Electric. It started with Electric Vehicle Charging Equipment and is also ambitiously expanding into other new energy like PV Power. With its rich experience in Power Distribution Grid projects, Hifuture Electric provides customers with complete EPC service from MV/LV distribution up to the EV charging station. It has also developed its independent operating platform. Currently, it runs over 50 EV Charging stations on its platform system.
Hifuture Electric has devoted to overseas market since 2004. Its products and solutions have served over 500 cities and towns in China as well as some significant international events like the Beijing 2008 Olympics, Asian Games, World Expo, etc.
Since its establishment in 1999, Hifuture Electric has gained 95 national patents covering different product categories and was awarded "Shenzhen Hi-tech Enterprise" in 2001 and "National Hi-Tech Enterprise" in 2008.
