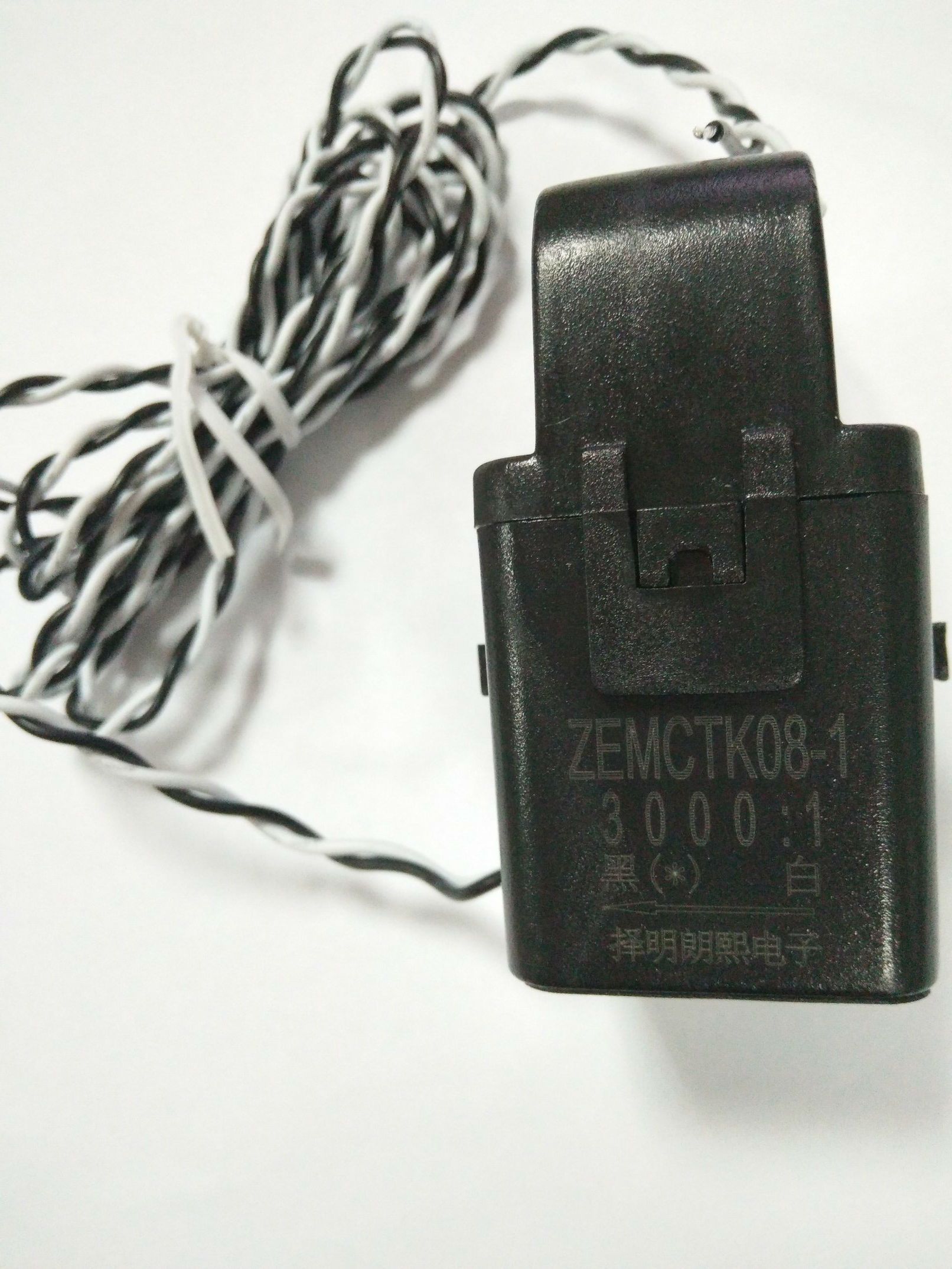

24mm Hole Split Core Current Transformer
| Price: |
Negotiable/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
ZEMCTK08-1 Split core current transformer
Split core current transformer
1.Specification | Characteristics | Values |
| Primary current | 200A |
| Maximum primary operating current | 240A |
| Secondary current | 66.67mA |
| Sampling resistor | 10Ω |
| Operating frequency | 50/60Hz |
| Operating temperature | -40ºC-85ºC |
| Relative humidity | ≤95% |
| Turn ratio | 1:3000 |
| Accurate operating current range | |
| Accurate class | 1.0 |
| Power-frequency Withstand voltage | 3kV/1min |
| Insulation resistance | ≥500MΩ/500VDC |
| Interturn Insulation | 200A/1min |
| Accuracy Class | With the percentage(%) of |
| 5 | 20 | 100 | 120 |
| Ratio Error(±%) | 1.5 | 0.75 | 0.5 | 0.5 |
| Phase Displacement(±') | 120 | 90 | 90 | 90 |

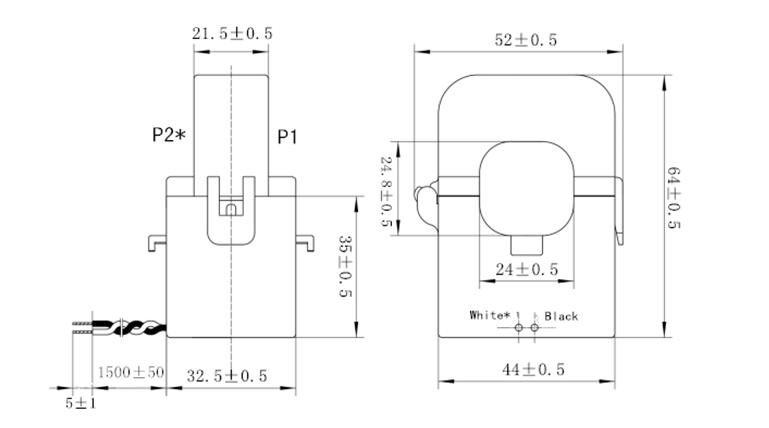

2.Dimension
3.Material List | NO. | Material | Spec, model | UL code | SGS |
| 1 | Silicon steel core | / | -- | yes |
| 2 | Core box | PBT | E332375 | yes |
| 3 | Tape | Flame retardant,
Environmental protection | E165111 | yes |
| 4 | Enameled wire | 3000turns | E258243 | yes |
| 5 | Outer covering | Environmental protection | E238981 | yes |
| 6 | Leading wires | Red, white, 22#AVR | E315651 | yes |
| Prod Model: |
ZEMCTK08-1 |
| Window Size: |
24mm |
| Accuracy: |
1.0class |
| Application: |
Lighting |
| Phase: |
Single |
| Type: |
Split Core Current Transformer |
