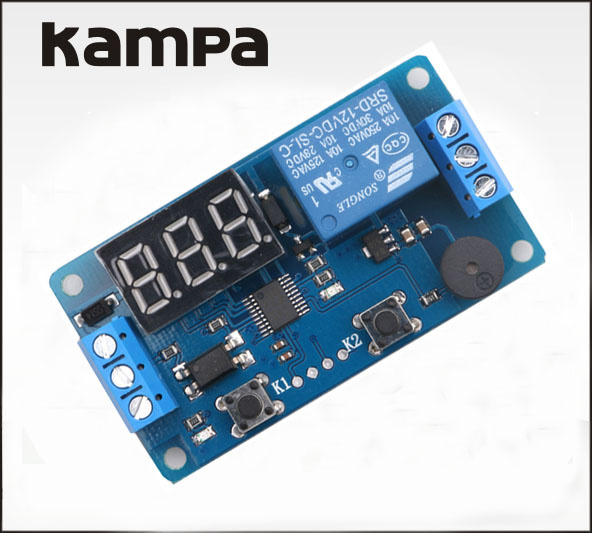

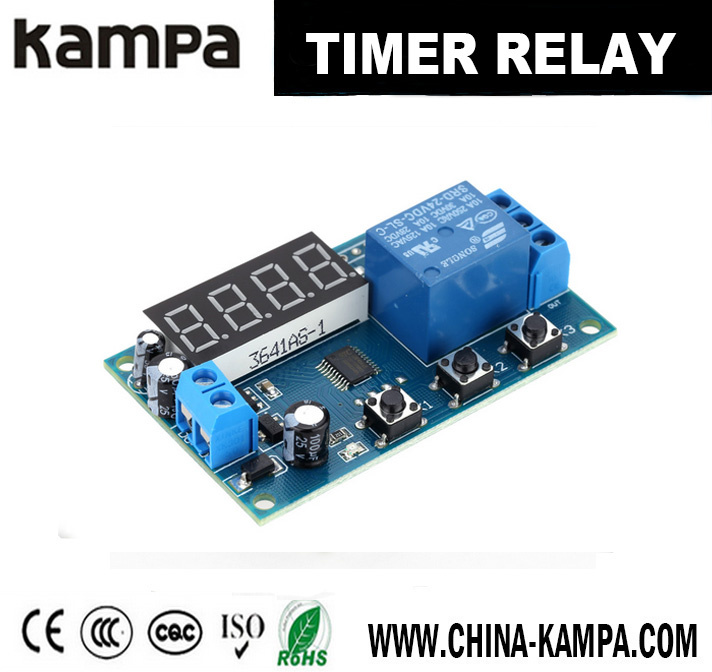

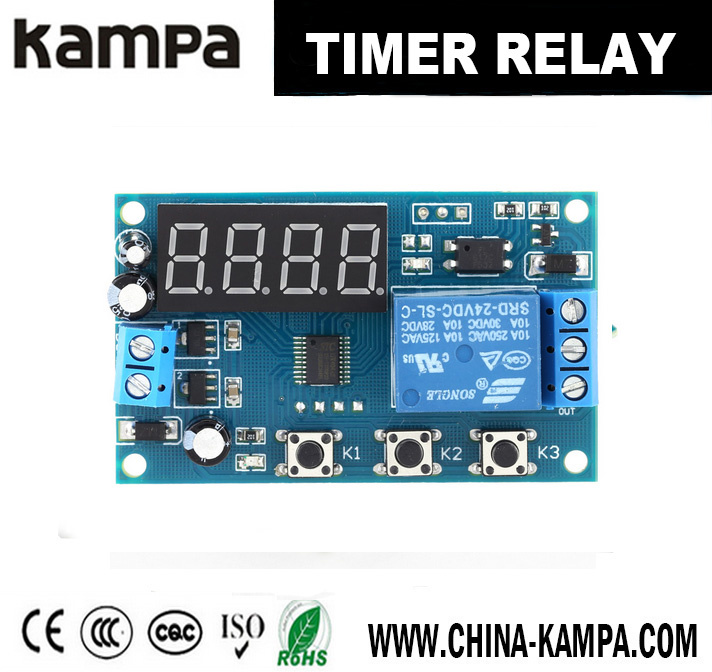

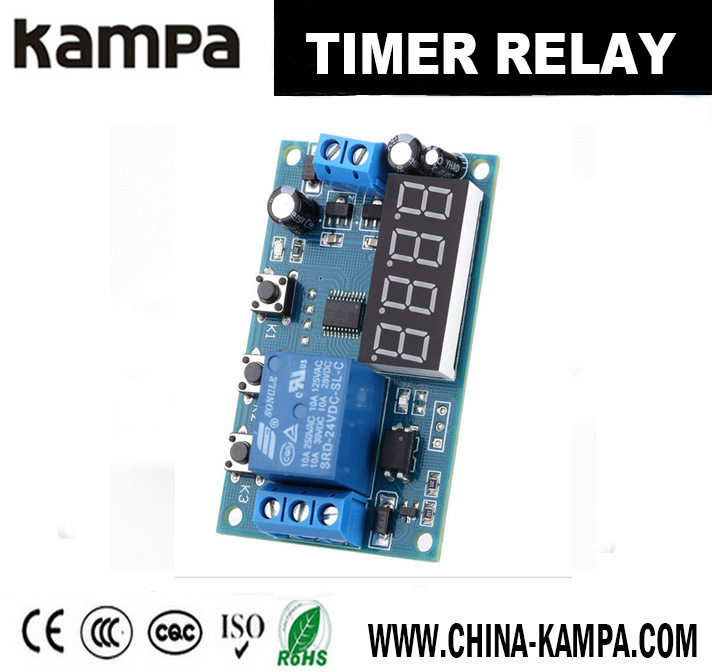

24V LED Digital Automation Delay Timer Control Switch Timer Relay LCD Module

Name: 24V LED Digital Automation Delay Timer Control Switch Timer Relay LCD Module
Brand: all-electronics-online.com
SKU: 817497435
Availability: InStock
Rating: 4.3 (148 reviews)

Price:	US $ 3.38/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KP-4
Dimension:	64 * 38 * 18mm / 2.52 * 1.5 * 0.7in (L * W * H)
Timing Range(Settable):	0.1s to 999 Minutes
Signal Source:	DC 3-12V
Output Capacity:	Can Control The Load Within DC 30V 3A or AC 220V 3
Static Current:	15mA
Working Current:	30mA
Working Temperature:	-40-85°c

Product Description

Feature:

New upgrated to simply,meeting the users needs/

Increase the power supply anto-reberse function,

LED digits display,intelligent control,time relay/delay functiion

The user of opto isolated input and output,enhanced anti-jamming capability and consumption

The last setting parameters can be memorized after power off

Power saving function,one-key switch,can trun off the capacity.

To ensure stability,industrial grade PCB relay.

Working modes selection:after power on,long press K1 for 2s,later into the selection of modes:P1~3

P-1:Monostable trigger delay ,a signal to trriger relay,time is up,the relay disconnect,

P-2:A signal trigger and countdown begins,T1 seconds after,the relay open 12 seconds,then close.

P-3:Open T1 seconds,dosconnect T2 seconds,infinite loop,Users can set the relay time T1 and TA

Display	LED digital display
Voltage	DC24V
Timing ranges(settable)	0`999,9seonds,0~9999 seconds,0~9999 minutes
Relay specification	DC5~30V 10A or AC 220V 10A
Static current	50mA
Working temperature	653818/2.561.50.7in (LWH)
PCB weight	26h/0.93oz
Package size	11.57.52cm/4.53/2.950.8m(LW*H)
