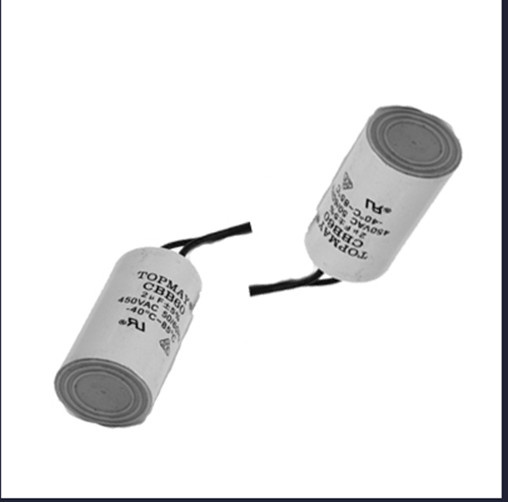

250V Metallized Polypropylene Film Capacitor for AC (CBB60H) with Wire
| Price: |
US $ 0.001/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T,Western Union |
Detailed Product Description:
1. Used widely in motors, fans.
2. High performance & Long life Capacitor.
3. Work well even in hot area.

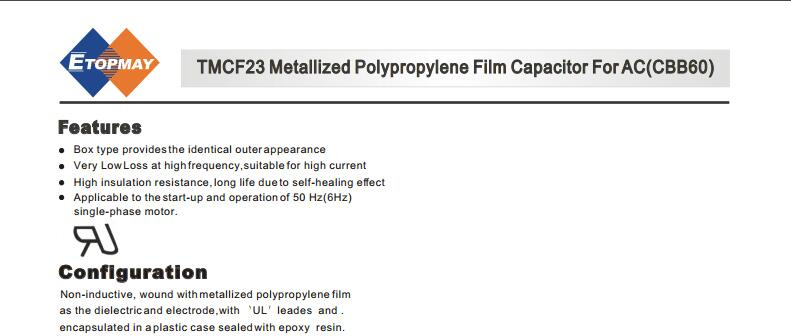

Main Feature:
Low dissipation factor,small inherent temperature rise.excellent
self-healing stability,safety and high voltage withstand,etc.
Applications:
To start and run single phase motors in alternating current usage.
| #CBB61 Motor run capacitor: |
| Capacitance Range | 1μF~30μF |
| Rated Voltage | 250VAC~500VAC(50/60Hz) |
| Capacitance Tolerance | ±5% or Fulfilled upon request |
| Loss Tangent | Tgδ≤0.002(50Hz-100Hz) |
| Standard Temperature | -25ºC~+70ºC,-40ºC~+85ºC |
| Climate Class | 25/70/21, 40/85/21 |
| Test Voltage | Between terminals | AC≥2.00Un 2S NO BREAKDOWN |
| Between terminals and case | AC≥2000V 2S NO BREAKDOWN |
| Insulation Resistance | Between terminals | Rj·C≥3000MΩ.μF |
| Between terminals and case | Rj≥1000 MΩ.μF |
| Security Level | P0, P1, P2 |
| Executing Standard | GB/T3667.1-2005, IEC60252-1:2001, IEC252 |
| Prod Model: |
TMCF23 |
| Tolerance: |
+-5% |
| Type: |
Polypropylene Capacitor |
| Application: |
Air Conditioner |
| Package Type: |
Through Hole |
| Capacitance: |
50-100uf |
| Electrolyte: |
Polypropylene Film |
| Filter: |
Polypropylene Film |
