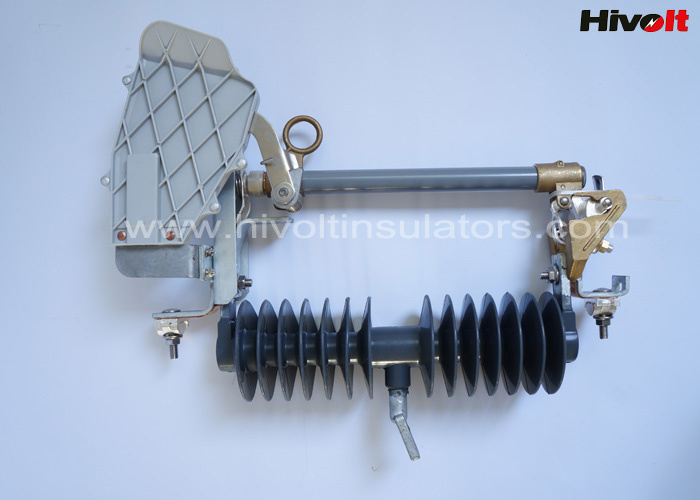

25kv Polymer Fuse Cutout Insulators

Name: 25kv Polymer Fuse Cutout Insulators
Brand: all-electronics-online.com
SKU: 835121845
Availability: InStock
Rating: 4.8 (90 reviews)

Price:	US $ 10-100/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Description:

product name :15KV silicone rubber dropout fuse cutout grey with solid copper fuse tube 300A

Rated Voltage: 15 kV

Rated Current : 300A

Breaking Capacity : 8kA

(Symmetrical current interruption)

Power Frequency withstand voltage (dry) : 45kV

Impulse Voltage : 110 kV

Leakage distance : 240mm

Connector type : paralell groove connector silver coated

To be sure all batches of 15kV dropout fuese cutout are qualified , we conduct below performance tests :

1) Power frequency dry withstand voltage test

2) Lightning impulse withtand voltage test

3) Power frequency wet withstand voltage test

4) Temperature rise limitations test

5) Radio influence levels test

Applications:

Used for distribution lines or substations up to 15kV , suitable for wooden or steel cross arm

Competitive Advantage:

we guarantee that all fuse cutout units are routine tested one by one according to IEEE C37.41 , IEEE37.42

before shipment . in this way , we can sure all product are qualified .

all related metal parts or insulation body are selected .

To offer high quality proudct is our goal .

we also advanced our design to save cost , that we can offer better price for end users.

1) the dropout fuse cutout insulation body are high aluminum porcelain C-130 ,

2) a layer of shinning glaze covered on the body , color can be grey or brown .

3) the porcelain have excellent mechanical & electrical performance.

4) Conductive parts use material copper, bronze or brass , it depends on customer's requirement.

4) The fuse cutout are suitable for 34.5KV lines .

Applications:

Used for distribution lines , suitable for wooden or steel cross arm

Competitive Advantage:

2 years quality insurance time are satisifed by most of customers.

to provide excellent product performance , we routine tested all porcelain body by 50% cantilever strength . for example 34.5kV dropout fuse cutout porcelain insulator Min. cantilever 15kN , we routine test 7.5kV withstand 10 seconds .

in this way , we can sure all product are qualified .

Prod Model:	25kV
Type 1:	ANSI Standard
Type 2:	IEC Standard
Type 3:	Porcelain Fuse
Type 4:	Polymer Fuse
Application:	Low-voltage
Material:	Porcelain
Type:	A Type Insulator
Structure:	Fuse Cutout
Color:	Grey & Brown
Brand:	Hivolt

Dalian Hivolt Power System Co., Ltd. ( the former Hivolt Insulators Co., Ltd. ) is a reputable insulator manufacturer. It was set up in year 1990 with product range of porcelain insulators, composite insulators, and relevant metal fittings for transmission & distribution lines.

We look the quality as our company Life, and keep improving products quality. We strictly control the whole manufacturing process according to ISO 9001: 2008 edition, and focus on each quality details from raw material to insulators performance test. The powerful test facilities can make sure that each product under control.

We can supply insulators according to IEC standards, ANSI standards, BS standards or customer specifications. Porcelain glaze can be brown, light gray, white or blue. Composite insulators' shed colour can be light grey or red. In the mean time, we also supply high quality tonghened glass insulators for domestic market and overseas market.

Dalian Hivolt Power System Co., Ltd. is a reputable supplier, we have successfully supplied many kind of insulators to more 30 countries and regions due to reliable quality & reasonable price. We promise if any insulator from our company has quality defect, we will replace them at free charge in 12 months after receipt. We hope to set up a long term cooperation with you and enjoy the course together.
