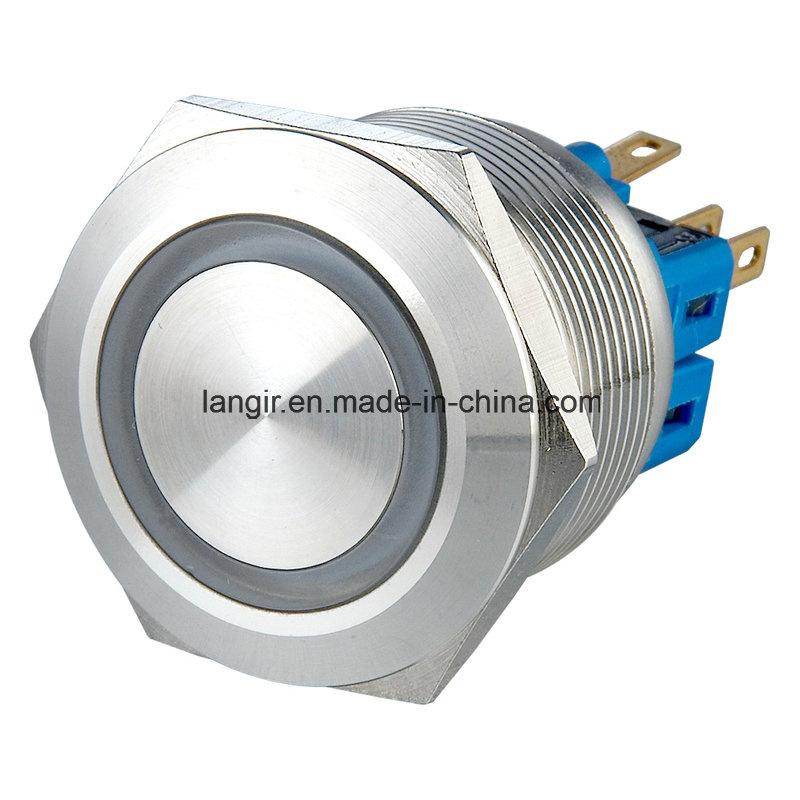

25mm Waterproof Momentary 1no1nc Illuminated Reset Stainless Steel Electric Switch
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
L25-F-M1-S-R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel 304 |
| Function: |
Momentary |
| Contact: |
1no1nc |
| Dia.: |
25mm |
| Illumination Voltage: |
6V/ 12V/ 24V/ 36V/ 110V/ 230V |
| Illum. Color: |
Red ,Blue,Orange,Green,White,Yellow |
| Switch Terminal: |
Pin(2.8*0.5) |
| Max. Switch Rating: |
5A/ 250VAC |
| Type: |
Normal Open |
| Usage: |
Reset Button |
| Certification: |
RoHS |
Product Description
25mm waterproof illuminated stainless steel switch ( 6V 12V 24V 36V 110V 230V )
The Anti vandal switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.
Features
Flat/ Concave
Variety of Color :Red ,blue,orange,green,white,yellow
Momentary/ Latching
Anti-Vandal IK09/ Sealed IP65
Illuminated and Non-Illuminated
Function
- Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.
- Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.
Technical Data| Type | L25-F | L25-F-R | L25-F-D |
| Illuminated Options | Non-Illuminated | Ring | Dot |
| Max. Panel Thickness: | 0.394″ (10.0mm) |
| Terminal | Pin(2.8×0.5) |
| Max. Switch Rating | 5A/ 250VAC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000mΩ |
| Dielectric Strengh | 2000VAC |
| Operation Temp. | -20°C ~ +55°C |
| Mechanical Life | 1,000,000cycles |
| Electrical Life | >50,000cycles |
| Contact Material | Silver Alloy |
| Torque | 5 ~ 14Nm |
| Operation Pressure | approx. 3 ~ 8N |
| Protection | IP65 |
| Material | Actuator | Stainless Steel/ Anodized Aluminum |
| Body | Stainless Steel/ Anodized Aluminum |
| Base | PA |
| Color | Type | LED (ratings @ 20mA) |
| Color | R-Red | Y- Yellow | O- Orange | G- Green | B- Blue | W- White |
| Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 |
| Forward Volatge | 1.8~2.6 | 2.8~3.6 |
| Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. |
| 6V/ 12V/ 24V/ 36V/ 110V/ 230V |
| Life | Approx. 40, 000hours |
