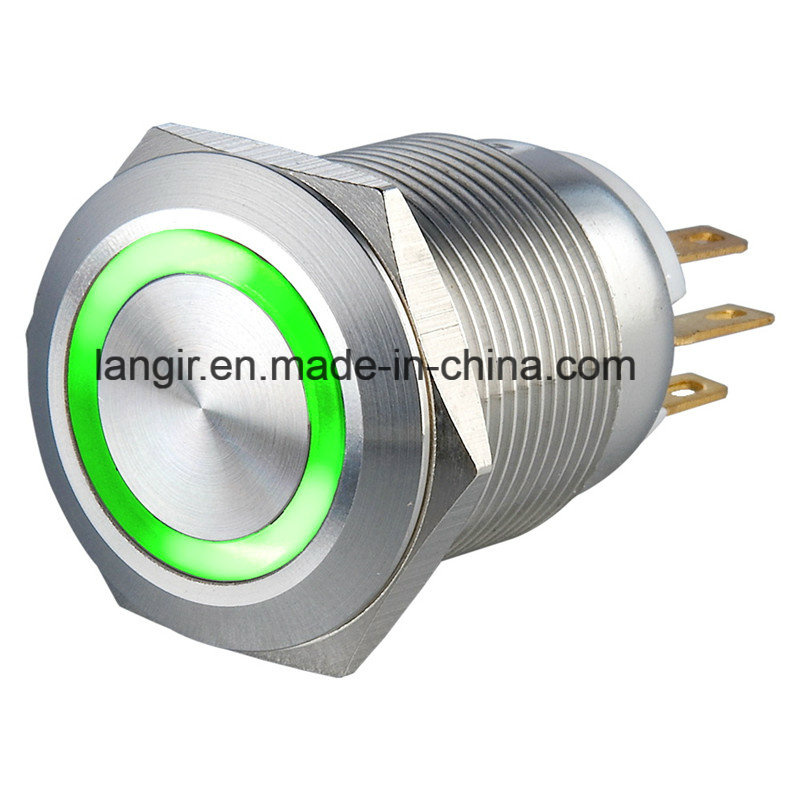

19mm Double Color Red/Green Ring LED Electric Metal Switch

19mm Double Color Red/Green Ring LED Electric Metal Switch
Price: US $ 6.39/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
19mm Ring Illuminated red/green Momentary 1NO1NC Stainless Steel Push Button Switch

is_customized                  Yes
Material                        Stainless steel
Function                        Momentary 1no1nc

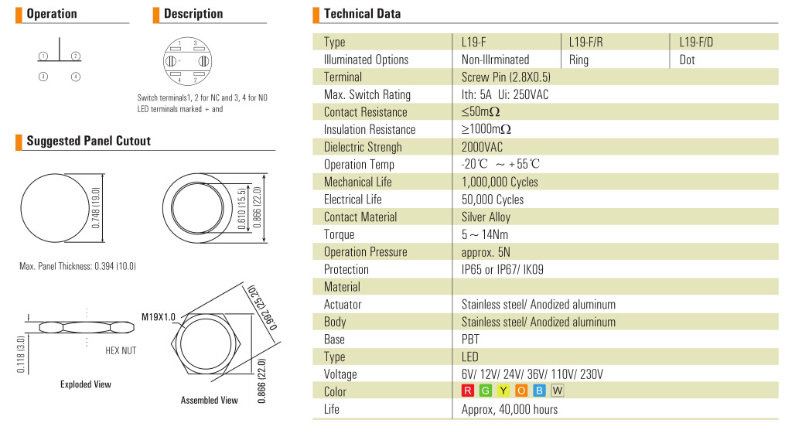

Technical Data:

TypeL19-FL19-F-RL19-F-D
Illuminated OptionsNon-IlluminatedRingDot
Max. Panel Thickness:0.394″ (10.0mm)
TerminalScrew/ Pin(2.8×0.5)
Max. Switch Rating5A/ 250VAC
Contact Resistance≤50mΩ
Insulation Resistance≥1000mΩ
Dielectric Strengh2000VAC
Operation Temp.-20°C ~ +55°C
Mechanical Life1,000,000cycles
Electrical Life>50,000cycles
Contact MaterialSilver Alloy
Torque5 ~ 14Nm
Operation Pressureapprox. 3 ~ 8N
ProtectionIP65/ IK09
MaterialActuatorStainless Steel/ Anodized Aluminum
BodyStainless Steel/ Anodized Aluminum
BasePA
ColorTypeLED (ratings @ 20mA)
ColorR-RedY- YellowO- OrangeG- GreenB- BlueW- White
Luminous Intensity (mcd)1602001505202202000
Forward Volatge1.8~2.62.8~3.6
Illumination Voltageno suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above.
6V/ 12V/ 24V/ 36V/ 110V/ 230V
LifeApprox. 40, 000hours









Prod Model: L19-F-M1-S-R-R/G
Is Customized: Yes
Size: 19mm
Material: Stainless Steel
Function: Momentary 1no1nc
LED Shape: Ring Illumination
Usage: Reset Button
Brand: Langire
Certification: RoHS
