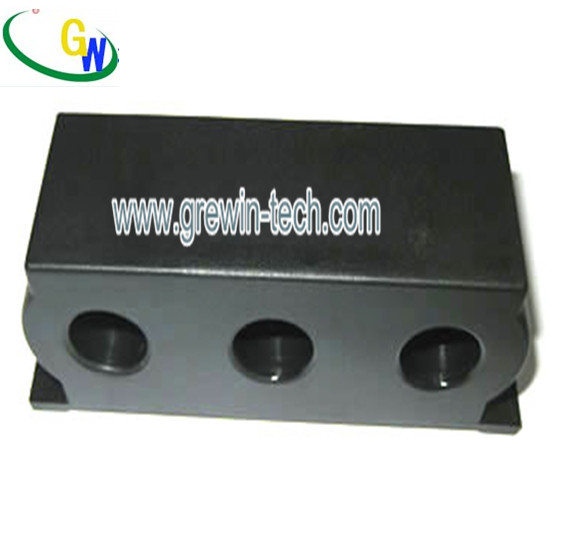

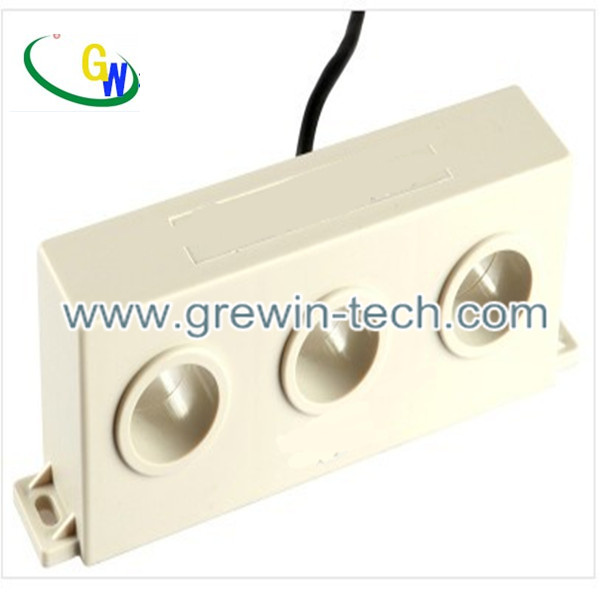

2A/0.1-0.353V Output Three Phase Current Transformer for Motor Protection
Price: |
US $ 12.5/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T,Western Union,Money Gram |
Prod Model: |
GWTA |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Exterior Material: |
PBT or ABS Resin UL Flame Retardant Rati |
Interior Insulation: |
Epoxy Encapsulated |
Isolation Voltage: |
2500 Vrms for 1 Minute |
Dielectric Resistance: |
1000m Ohms @ 500 VDC |
Surge Withstand: |
5000V |
Rated Load Resistance: |
100k Ohms |
Accuracy Class: |
as Defined in IEC 60044-1 |
Operating Temperature: |
-25 to +55c, -40 to +85c Optional |
Cetificate: |
CE-Approved |
Application: |
Audio |
Phase: |
Three |
Coil: |
Amorphous Alloy Transformer |
Cooling Method: |
Dry-type Transformer |
Winding Type: |
Multi-winding Transformer |
Usage: |
Electrical Energy Manage, Building Control System |
Frequency Characteristics: |
50 to 400 Hz |
Shape Of Coil: |
Epoxy Encapsulated |
Brand: |
Grewin |
Product Description
2A/0.1-0.353V output three phase current transformer for motor protection Our main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on ccurrent transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer Three Phase Instrument Current Transformer(specifications) |
Exterior Material | PBT Resin UL flame retardant rating 94-V0 |
Interior Insulation | Epoxy Encapsulated |
Isolation Voltage | 2500 Vrms for 1 minute |
Dielectric Resistance | 1000 M Ohms @ 500 Vdc |
Surge Withstand | 5000V(1.2/50μs standard shock wave)optional |
Rated Load Resistance | 100K Ohms |
Operating Temperature | -25 to +55ºC,-40 to +85ºCoptional |
Operating Voltage | 600Vac ,BIL 10KV Full Wave |
Frequency | 50 to 400 Hz |
Accuracy Class | defined in IEC 60044-1 Part 1 Voltage Transformers Class 0.1 0.2 |
Certification | RoHS Compliant CE Approved |
Three Phase Instrument Current Transformer(features) |
Low cost |
More than 10 standard size |
Chassis mounting pattern |
Three Phase Instrument Current Transformer(applications) |
Applications for current monitor of AC motor, illumination device, air compressor and HVAC etc. |
Electrical energy manage, building control system. Current measurement, monitoring and protection for circuitry and equipment. |
Typical Products Part Number | Specification (Rated Input/ Output) | Rated Ratio | Accuracy Class | Max. overload current | Outline Dimensions ID-L-W-H (mm) | Mounting means |
Over - load Multiple | Allow Persist Time(S) |
GWTA7161 | 2A/0.1-0.353V (optional) | 1:2000 1:3000 | 0.2 | 10 | 2 | 10 100-28-39 | bolting |
5A/0.1-0.353V (optional) |
6.3A/0.1-0.353V (optional) |
10A/0.1-0.353V (optional) |
25A/0.1-0.353V (optional) |
50A/0.1-0.353V (optional) | 0.5 |
GWTA7261 | 25A/0.1-0.353V (optional) | 1:2000 1:3000 | 0.2 | 10 | 2 | 20 115-42-45 | bolting |
50A/0.1-0.353V ( optional) | 0.5 |
100A/0.1-0.353V (optional) | 8 | 2 |
GWTA7361 | 25A/0.1-0.353V ( optional) | 1:2000 1:3000 | 0.5 | 10 | 2 | 20 120-50-57 | bolting |
50A/0.1-0.353V ( optional) |
100A/0.1-0.353V ( optional) |
150A/0.1-0.353V ( optional) | 8 | 2 |

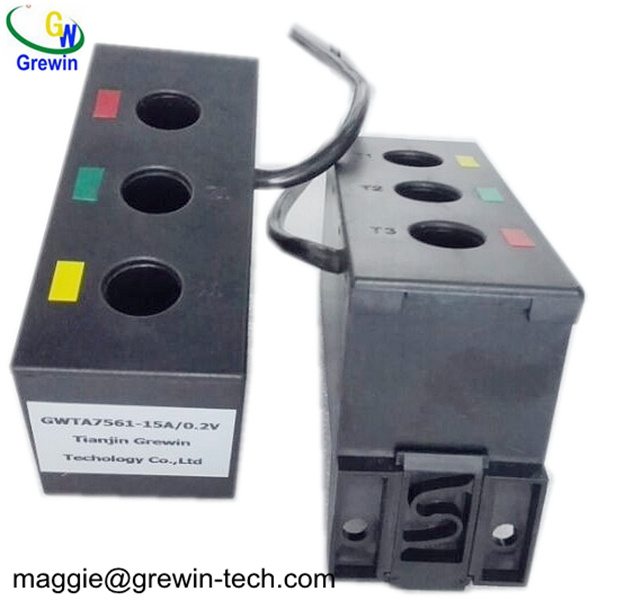

GWTA7561 | 2A/0.1-0.353V ( optional) | 1:2000 1:3000 1:4000 | 0.2 | 10 | 2 | 15 228-45-64.5 | 35mm standard guideway or bolting |
5A/0.1-0.353V ( optional) |
6.3A/0.1-0.353V (optional) |
10A/0.1-0.353V (optional) |
25A/0.1-0.353V (optional) | 0.5 |
50A/0.1-0.353V (optional) | 0.2 |
100A/0.1-0.353V (optional) |
150A/0.1-0.353V (optional) |
GWTA75B61 | 25A/0.1-0.353V (optional) | 1:2000 1:3000 1:4000 | 0.5 | 10 | 2 | 20 59.0-52-126 | 35mm standard guideway or bolting |
50A/0.1-0.353V (optional) | 0.2 |
100A/0.1-0.353V (optional) |
150A/0.10.353V (optional) |
200A/0.1-0.353V (optional) |
GWTA7661 | 2A/0.1-0.353V (optional) | 1:2000 1:3000 1:4000 | 0.2 | 10 | 2 | 20 94-53-92 | 35mm standard guideway or bolting |
6.3A/0.1-0.353V (optional) |
10A/0.1-0.353V (optional) |
25A/0.1-0.353V (optional) | 0.5 |
50A/0.1-0.353V (optional) | 0.2 |
100A/0.1-0.353V (optional) |
150A/0.1-0.353V (optional) |
200A/0.1-0.353V (optional) |
GWTA7861 | 100A/0.1-0.353V (optional) | 1:2000 1:3000 1:4000 | 0.2 | 10 | 2 | 40 212-47-89.3 | bolting |
200A/0.1-0.353V (optional) |
250A/0.1-0.353V (optional) |
300A/0.1-0.353V (optional) |
400A/0.1-0.353V (optional) |
GWTA7961 | 100A/0.1-0.353V (optional) | 1:2000 1:3000 1:4000 | 0.2 | 10 | 2 | 40 184-63-78 | bolting |
200A/0.1-0.353V (optional) |
250A/0.1-0.353V (optional) |
300A/0.1-0.353V (optional) |
400A/0.1-0.353V (optional) |
GWTA79A61 | 25A/0.1-0.353V (optional) | 1:2000 1:3000 1:4000 | 0.5 | 10 | 2 | 25.0 143-58-65 | bolting |
50A/0.1-0.353V (optional) | 0.2 |
100A/0.1-0.353V (optional) |
200A/0.10.353V (optional) |
250A/0.1-0.353V (optional) |
GWTA79B61 | 100A/0.1-0.353V (optional) | 1:2000 1:3000 1:4000 | 0.2 | 10 | 2 | 30 196-74-38 | bolting |
200A/0.1-0.353V (optional) |
250A/0.1-0.353V (optional) |
300A/0.1-0.353V (optional) |
400A/0.1-0.353V (optional) | 8 |
Shipping:1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3. 20 days around delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon
import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:1. We accept Western Union and T/T
2. 30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after
geting full payment.
Warranty:1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goodsOur factory Tianjin grewin technology co., ltd . is a high-tech company which integrates production, design, R&D, and sale.We-CHIPSEN-specialize in developing
many kinds of electronic components. Include electronic transformers,
We are ISO 9001 and ISO 14001 certified and our products come with UL, SGS
marks.
Grewin current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.WHY CHOOSE US? Quality and honest first!
