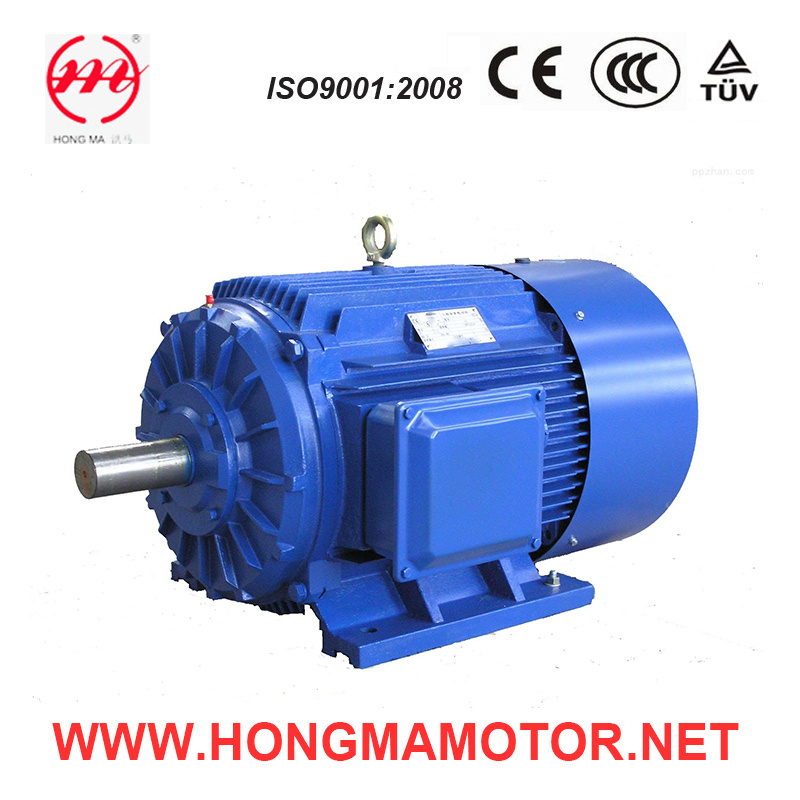

| Prod Model: |
405TS-2-100HP |
| Frame Size Range: |
405ts |
| Rated Power Range: |
100HP |
| Rated Frequency: |
60Hz |
| Rated Voltage: |
208-230/460 V |
| Power Factor: |
0.86 |
| Working Form: |
Continuous Duty |
| Insulation Class: |
F |
| Frame Material: |
Cast-Iron |
| Protection Class: |
IP55 |
| Structure: |
Tefc (Totally Enclosed Fan Cooled) |
| Application: |
Universal |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Certification: |
Ce&C390-93, UL & Saso |
| Brand: |
Hongma |
Product Description
Production DescriptionNEMA Standard high efficiency motors are totally enclosed fan cooled machine(IP55).
This seriess are designed and manufactured in accordance with NEMA standard of USA and
C390-93 standard of Canada.These motors are of a novel style and of excellent
workmanship. They are characterized as reliability and safety, minimal temperature rise,
high efficiency, low vibration, high starting torque etc. Both high efficiency and premuimu
efficency are available.
These motors adopt design B and class F insulation. Their serivce factor is 1.15. They have
rated voltage at 208, 230/460V, 460V or 575V and rated frequency at 60HZ. The ambient
termperature they can expose to is -15ºC to 40ºC. The altitude bthey require doesn't
exceed 3300 feet. They are ideal for application with no special requirment. They can be
used to drive various kind of mechanical equipment. This series motor can be specially
manfactured on request, such as T, TC, TD or H insulation class, different voltage, different
frequency, ect.
Technical Data: | HP | Speed | Type | Current | Connection | Power | Efficiency | Locked rotor | TS | | Noise | Weight |
| under | method | factor | FL | current | TN | TN | level LW |
| r/min | 460V | 230/460V | cosφ | 100% | 460V | (%) | (%) | dB(A) | (Kg) |
| 1 | 3470 | 143T | 1.5 | 2Y/Y | 0.83 | 75.5 | 15 | 175 | 250 | 70 | 21 |
| 1.5 | 3490 | 143T | 2.02 | 2Y/Y | 0.83 | 82.5 | 20 | 175 | 250 | 72 | 23 |
| 2 | 3490 | 145T | 2.63 | 2Y/Y | 0.85 | 84.1 | 25 | 170 | 240 | 72 | 29 |
| 3 | 3500 | 182T | 3.75 | 2Y/Y | 0.86 | 85.6 | 32 | 160 | 230 | 76 | 47 |
| 5 | 3510 | 184T | 6.16 | 2Y/Y | 0.86 | 87.6 | 46 | 150 | 215 | 76 | 52 |
| 7.5 | 3540 | 213T | 8.86 | 2/ | 0.88 | 88.5 | 63.5 | 140 | 200 | 82 | 72 |
| 10 | 3500 | 215T | 12 | 2/ | 0.88 | 89.5 | 81 | 135 | 200 | 82 | 84 |
| 15 | 3545 | 254T | 17.4 | 2/ | 0.88 | 90.2 | 116 | 130 | 200 | 88 | 120 |
| 20 | 3540 | 256T | 23.5 | 2/ | 0.89 | 90.2 | 145 | 130 | 200 | 88 | 152 |
| 25 | 3540 | 284TS | 28 | 2/ | 0.91 | 91 | 182.5 | 130 | 200 | 88 | 175 |
| 30 | 3550 | 286TS | 33.3 | 2/ | 0.91 | 91 | 217.5 | 130 | 200 | 88 | 220 |
| 40 | 3550 | 324TS | 46.6 | 2/ | 0.88 | 91.8 | 290 | 125 | 200 | 92 | 270 |
| 50 | 3560 | 326TS | 55.2 | 2/ | 0.91 | 92.4 | 362.5 | 120 | 200 | 92 | 283 |
| 60 | 3570 | 364TS | 69.8 | 2/ | 0.87 | 93 | 435 | 120 | 200 | 96 | 391 |
| 75 | 3570 | 365TS | 85.3 | 2/ | 0.87 | 93 | 542.5 | 105 | 200 | 96 | 511 |
| 100 | 3575 | 405TS | 117 | 2/ | 0.86 | 93.6 | 725 | 105 | 200 | 96 | 570 |
| 125 | 3575 | 444TS | 133 | 2/ | 0.9 | 94.5 | 907.5 | 100 | 200 | 98 | 683 |
| 150 | 3575 | 445TS | 162 | 2/ | 0.9 | 94.5 | 1085 | 100 | 200 | 98 | 820 |
| 200 | 3570 | 447TS | 218 | 2/ | 0.91 | 95 | 1450 | 100 | 200 | 100 | 972 |
| 250 | 3575 | 449TS | 270 | 2/ | 0.9 | 95.4 | 1825 | 70 | 175 | 100 | 1048 |
| 300 | 3575 | 449TS | 325 | 2/ | 0.89 | 95.5 | 2200 | 70 | 175 | 102 | 1153 |
| 1 | 1740 | 143T | 1.76 | 2Y/Y | 0.65 | 82.5 | 15 | 270 | 300 | 70 | 28 |
| 1.5 | 1740 | 143T | 2.35 | 2Y/Y | 0.7 | 84.1 | 20 | 250 | 280 | 70 | 29 |
| 2 | 1740 | 145T | 2.84 | 2Y/Y | 0.79 | 84 | 25 | 235 | 270 | 70 | 33 |
| 3 | 1745 | 182T | 3.99 | 2Y/Y | 0.79 | 87.5 | 32 | 215 | 250 | 74 | 42 |
| 5 | 1745 | 184T | 6.72 | 2Y/Y | 0.79 | 87.5 | 46 | 185 | 225 | 74 | 52 |
| 7.5 | 1765 | 213T | 9.29 | 2/ | 0.83 | 89.5 | 63.5 | 175 | 215 | 79 | 74 |
| 10 | 1765 | 215T | 12.7 | 2/ | 0.83 | 89.5 | 81 | 165 | 200 | 79 | 83 |
| 15 | 1770 | 254T | 17.8 | 2/ | 0.85 | 91 | 116 | 160 | 200 | 80 | 149 |
| 20 | 1770 | 256T | 24.6 | 2/ | 0.84 | 91 | 145 | 150 | 200 | 83 | 183 |
| 25 | 1770 | 284TS | 28.9 | 2/ | 0.87 | 92.4 | 182.5 | 150 | 200 | 88 | 186 |
| 30 | 1770 | 286TS | 35.2 | 2/ | 0.85 | 92.4 | 217.5 | 150 | 200 | 88 | 195 |
| 40 | 1780 | 324TS | 46.5 | 2/ | 0.87 | 93 | 290 | 140 | 200 | 89 | 261 |
| 50 | 1775 | 326TS | 57.4 | 2/ | 0.87 | 93 | 362.5 | 140 | 200 | 89 | 272 |
| 60 | 1785 | 364TS | 71 | 2/ | 0.85 | 93.6 | 435 | 140 | 200 | 95 | 322 |
| 75 | 1785 | 365TS | 87.3 | 2/ | 0.84 | 94.1 | 542.5 | 140 | 200 | 95 | 420 |
| 100 | 1785 | 405TS | 117 | 2/ | 0.85 | 94.5 | 725 | 125 | 200 | 98 | 500 |
| 125 | 1780 | 444TS | 136 | 2/ | 0.88 | 94.5 | 907.5 | 110 | 200 | 99 | 631 |
| 150 | 1780 | 445TS | 163 | 2/ | 0.89 | 95 | 1085 | 110 | 200 | 99 | 690 |
| 200 | 1780 | 447TS | 297 | 2/ | 0.89 | 95 | 1450 | 100 | 200 | 102 | 926 |
| 250 | 1785 | 449TS | 270 | 2/ | 0.9 | 95.5 | 1825 | 80 | 175 | 102 | 1030 |
| 300 | 1785 | 449TS | 329 | 2/ | 0.88 | 95.4 | 2200 | 80 | 175 | 102 | 1130 |
| 1 | 1145 | 145T | 1.84 | 2Y/Y | 0.64 | 80 | 15 | 170 | 265 | 64 | 31 |
| 1.5 | 1175 | 182T | 2.52 | 2Y/Y | 0.64 | 85.5 | 20 | 165 | 250 | 67 | 47 |
| 2 | 1170 | 184T | 3.15 | 2Y/Y | 0.69 | 86.5 | 25 | 160 | 240 | 67 | 49 |
| 3 | 1175 | 213T | 4.44 | 2Y/Y | 0.71 | 87.5 | 32 | 155 | 230 | 71 | 81 |
| 5 | 1170 | 215T | 7.08 | 2Y/Y | 0.75 | 87.5 | 46 | 150 | 215 | 71 | 138 |
| 7.5 | 1180 | 254T | 10.9 | 2Y/Y | 0.71 | 89.5 | 63.5 | 150 | 205 | 75 | 156 |
| 10 | 1180 | 256T | 13.9 | 2Y/Y | 0.75 | 90.2 | 81 | 150 | 200 | 75 | 188 |
| 15 | 1180 | 284T | 19.9 | 2/ | 0.77 | 90.2 | 116 | 140 | 200 | 80 | 202 |
| 20 | 1180 | 286T | 26.2 | 2/ | 0.79 | 91 | 145 | 135 | 200 | 80 | 265 |
| 25 | 1180 | 324T | 33.3 | 2/ | 0.76 | 91.7 | 182.5 | 135 | 200 | 83 | 279 |
| 30 | 1185 | 326T | 38.3 | 2/ | 0.78 | 92.4 | 217.5 | 135 | 200 | 83 | 297 |
| 40 | 1185 | 364T | 49.4 | 2/ | 0.82 | 93 | 290 | 135 | 200 | 86 | 311 |
| 50 | 1180 | 365T | 58.1 | 2/ | 0.86 | 93 | 362.5 | 135 | 200 | 86 | 472 |
| 60 | 1190 | 404T | 72.7 | 2/ | 0.83 | 93.6 | 435 | 135 | 200 | 90 | 502 |
| 75 | 1190 | 405T | 91.1 | 2/ | 0.81 | 93.6 | 542.5 | 135 | 200 | 90 | 897 |
| 100 | 1185 | 444T | 112 | 2/ | 0.89 | 94.1 | 725 | 125 | 200 | 94 | 956 |
| 125 | 1185 | 445T | 136 | 2/ | 0.88 | 94.1 | 907.5 | 125 | 200 | 94 | 1002 |
| 150 | 1185 | 447T | 165 | 2/ | 0.88 | 95 | 1085 | 120 | 200 | 94 | 1252 |
| 200 | 1185 | 449T | 225 | 2/ | 0.88 | 95 | 1450 | 120 | 200 | 95 | 1142 |
| 250 | 1185 | 449T | 291 | 2/ | 0.84 | 95 | 1825 | 100 | 175 | 96 | 1270 |
