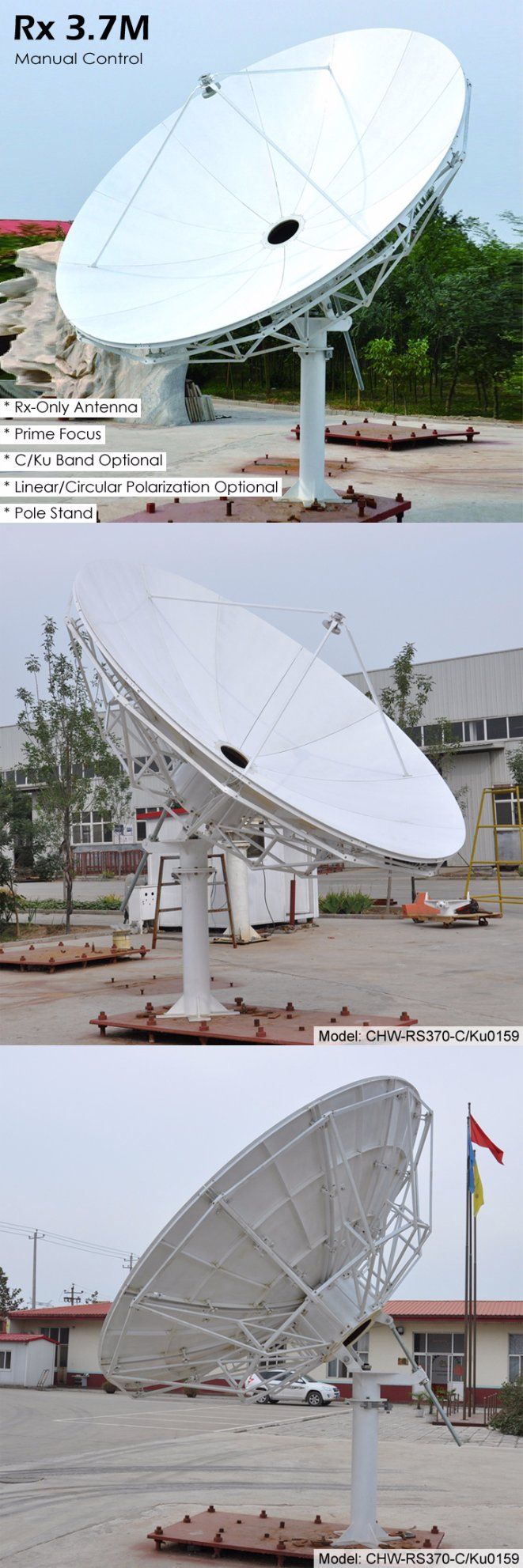

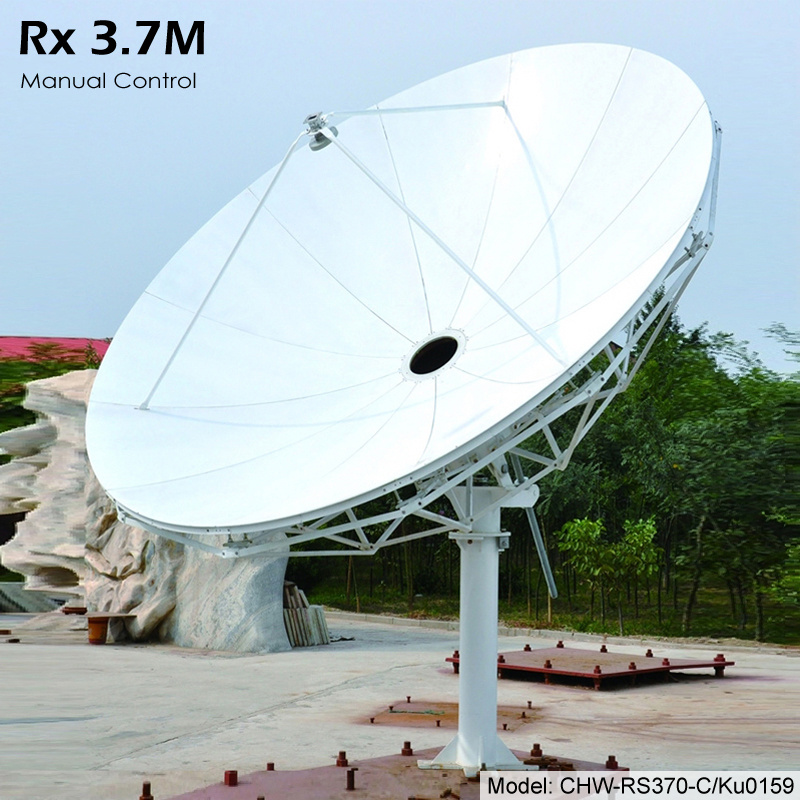

Satellite Antenna 3.7M Rx-Only
3.7M / 12feet
Prime Focus, Front Feed
C/Ku Band Optional
Linear/Circular Polarization Optional
Pole Stand, Manual Control
Model: CHW-RS370-C/Ku0159
FEATURES - Front feed, receive-only antenna;
- Prime Focus;
- C/Ku band optional, linear/circular polarization optional;
- Solid structure, easy installation, good stability;
- High gain, low sidelobe, high cross-polarization isolation;
- Pole stand, manual control;
MANUFACTURING TECHNIQUES - The reflector panels are made of high quality aluminum sheets and shaped by stretch-forming method to get smooth and high accuracy surfaces;
- Every detail work is concerned to make products perfect, such as fine welding, smooth edge, no cutting burrs, etc.;
- All steel parts will be processed by sand blasting first to remove the rust, then zinc galvanized;
- When all parts ready, antennas will be assembled and tested the electrical performance well in factory, then disassembled again for painting and packing;
- Before painting, every part will be degreased for better adhesion, and then painted twice. Firstly, the epoxy zinc yellow primer is used to protect the zinc coating, then white paint is used as finish coat for better anti-rust quality.
All these work we have done in factory will ensure the final installation easier and less stress.
Packing:
By wooden boxes.
Main Parts Including:
Antenna reflectors, ribs, antenna central hub, stand pole, feed.
Options:LNB, De-icing system, activity / fixed foundation, etc.SPECIFICATION ELECTRICAL
SPECIFICATIONS | Items | C Band Receive | Ku Band Receive |
| Frequency (GHz) | 3.7-4.2 | 10.95-12.75 |
| Gain (dB) | ≥41.1+20lg(f/3.95) | ≥51.69+20lg(f/12.5) |
| VSWR | ≤1.30:1 | ≤1.30:1 |
| Beam Width (-3dB) | ≤1.45° | ≤0.44° |
| Noise Temperature (K, EL 20°) | ≤44 | ≤55 |
| Feed Interface | CPR-229G | WR-75 |
| Cross Polarization Isolation | ≥23 | ≥27 |
| Axial Ratio (dB) | ≤3.0 | ≤3.0 |
| First Side (dB) | ≤-14 | ≤-14 |
| Sidelobe | 52-10lg(D/λ)-25lg(θ)dBi
(100λ/D)°≤θ≤20° | 32-25lg(θ)dBi
1°≤θ≤20° |
MECHANICAL
SPECIFICATIONS | Antenna Type | Front Feed Receive Only Antenna |
| Stand Type | Pole Stand |
| Drive Mode | Manual |
| Azimuth Range | 0°-360° |
| Elevation Range | 5°-90° |
| Polarization Range | ±90° |
ENVIRONMENTAL
SPECIFICATIONS | Operational Wind Speed | 20.8m/s | 20.8m/s |
Survival Wind Speed
(Locked Upwards) | 55m/s | 55m/s |
| Ambient Temperature | -20ºC to 55ºC | -20ºC to 55ºC |
| Relative Humidity | 5% to 95% | 5% to 95% |

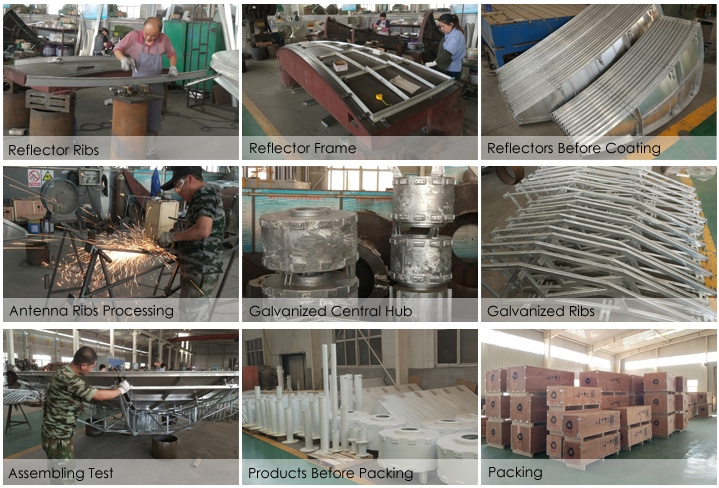

MANUFACTURING PROCESSES

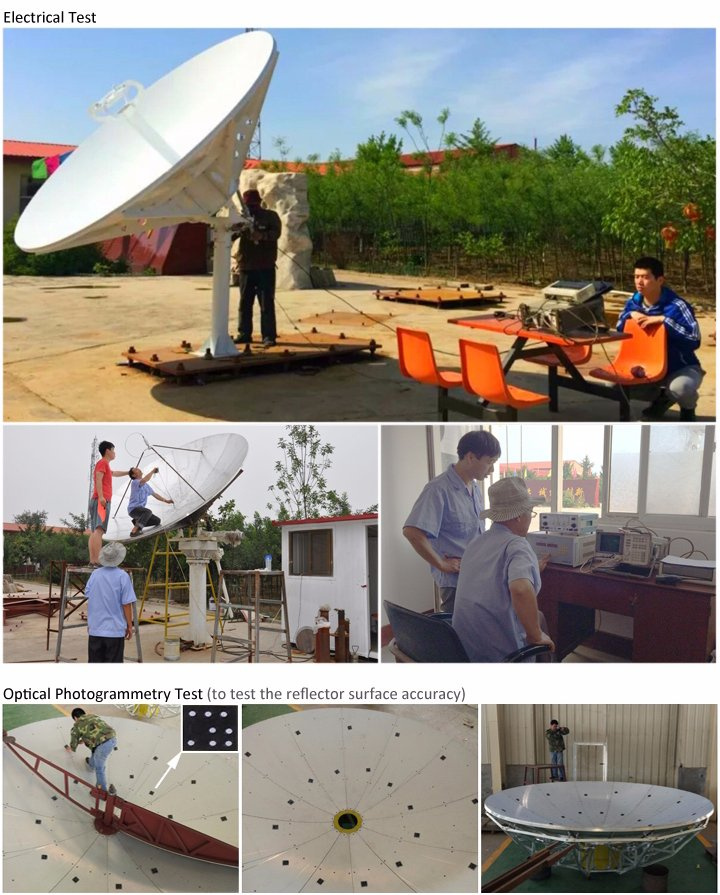

FACTORY TEST
CERTIFICATES
FAQ 1. Are you manufacturer or trading company?
We are manufacturer with ISO9001:2008 certification and TUV audited report. Our factory has devoted in producing satellite antennas since 1995.
2. Can you make the products according our sample or drawing?
Yes, we can.
3. Can you print our logo on the dish?
Yes, as long as you have legal right to the mark.
4. What's your MOQ?
We can receive small orders or big orders as customers' need for our regular models.
5. What payment do you receive?
T/T, or L/C at sight.
6. What's your delivery time?
Normally 20-30 days according to order conditions. If you have urgent order or special requirements, please let us know in advance in case of any delay.
7. How can you ensure your products in good quality?
Here is our QC system working in the whole production:
1) Checking all raw materials before they entering warehouse;
2) Checking the moulds before production;
3) Checking the first sample's appearance, and test the electrical performance;
4) Sampling inspection during lot production;
5) Checking all the parts before & after coating;
6) Checking all the products before shipping.
Also, third-party inspection is accepted.CONTACT US
..................................................................................................................................................................................
