3.7m Rx-Tx VSAT Antenna (Manual)
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Satellite Antenna VSAT 3.7M
3.7M / 12feet
Ring Focus, Rx-Tx
C/Ku Band Optional
Linear/Circular Polarization Optional
Pole Stand, Manual Control

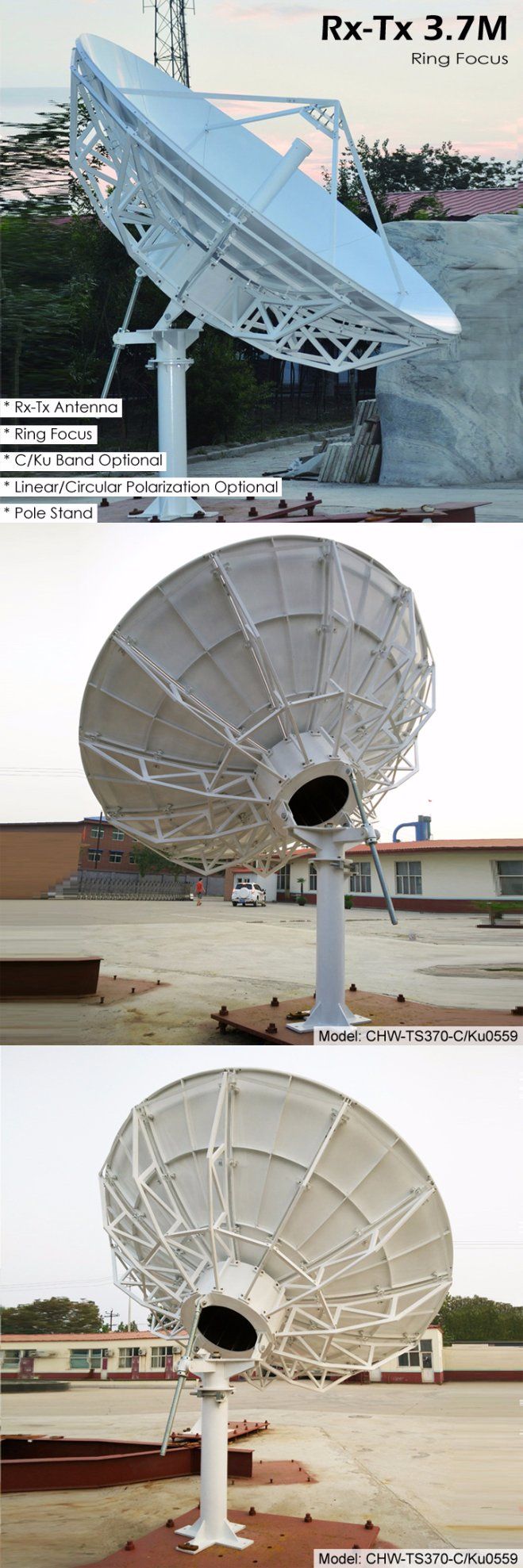

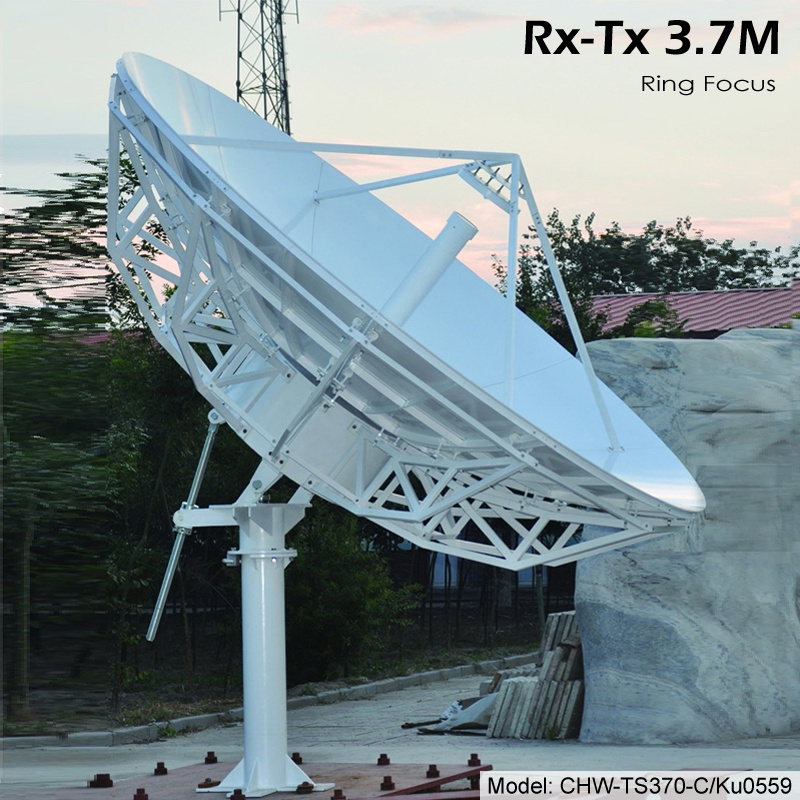

Model: CHW-TS370-C/Ku0559 (Manual)
FEATURES - Receiving & transmitting VSAT antenna;
- Ring Focus, dual reflector;
- C/Ku band optional, linear/circular polarization optional;
- Solid structure, easy installation, good stability;
- High gain, low sidelobe, high cross-polarization isolation;
- Pole stand, manual control;
MANUFACTURING TECHNIQUES - Reflectors are made of high quality aluminum sheets by stretch method which can get smooth and high accuracy surfaces;
- After degreasing, reflectors will be double painted with base paint and top paint to get better quality against rust;
- All steel parts will be processed by sand blasting to remove the rust first, spray zinc or hot-dipping zinc, and then they also will be double painted.
- All of the products are approved by factory tests regarding electrical performance.
Packing:
By wooden boxes.
Main Parts Including:
Antenna reflectors, ribs, reflector central hub, pole stand, sub-reflector, duplexer, feed horn, etc.
Options:De-icing system, activity / fixed foundation, etc.SPECIFICATION ELECTRICAL
SPECIFICATIONS | Items | C-Receive | C-Transmitting | Ku-Receive | Ku-Transmitting |
| Frequency (GHz) | 3.40-4.20 | 5.85-6.65 | 10.95-12.75 | 13.75-14.50 |
| Gain (dB) | ≥41.9+20lg(f/4) | ≥45.4+20lg(f/6) | ≥51.1+20lg(f/12) | ≥52.4+20lg(f/14) |
| VSWR | ≤1.25:1 | ≤1.25:1 | ≤1.25:1 | ≤1.25:1 |
| Beam Width (-3dB) | ≤1.32° | ≤0.88° | ≤0.47° | ≤0.41° |
| Beam Width (-10dB) | ≤2.41° | ≤1.60° | ≤0.76° | ≤0.64° |
| Noise Temperature (K) | 2 Ports | / | 2/4 Ports | / |
| 10° EL | ≤48 | / | ≤58/69 | / |
| 20° EL | ≤40 | / | ≤51/60 | / |
| 30° EL | ≤38 | / | ≤49/58 | / |
| Power Handling Capability | / | 3 | / | 1 |
| Feed Interface | CPR-229G | CPR-159G/137G | WR-75 | WR-75 |
| Feed Insertion Loss | ≤0.3 | ≤0.3 | ≤0.35/0.5 | ≤0.35/0.5 |
| Port to Port Isolation | ≥85 | ≥85 | ≥85 | ≥85 |
| Cross Polarization Isolation | ≥35 | ≥35 | ≥35 | ≥35 |
| First Side (dB) | ≤-14 | ≤-14 | ≤-14 | ≤-14 |
| Sidelobe | 29-25lg(θ)dBi 1°≤θ≤20° | 29-25lg(θ)dBi 1°≤θ≤20° |
ENVIRONMENTAL
SPECIFICATIONS | Operational Wind Speed | 20.8m/s |
Survival Wind Speed
(Locked Upwards) | 55m/s |
| Ambient Temperature | -40ºC to 60ºC (Outdoor) |
| Relative Humidity | 5% to 95% |
| Seismic (Survival) | 0.3G's (Horizontal), 0.15G's (Vertical) |
| Solar Radiation | 360BTU/h/ft² |
| Radial Ice | 3cm |
MECHANICAL
SPECIFICATIONS | Antenna Type | Ring Focus Antenna |
| Stand Type | Pole Stand |
| Drive Mode | Manual |
| Azimuth Range | 0°-360° |
| Elevation Range | 5°-90° |
| Polarization Range | ±90° |

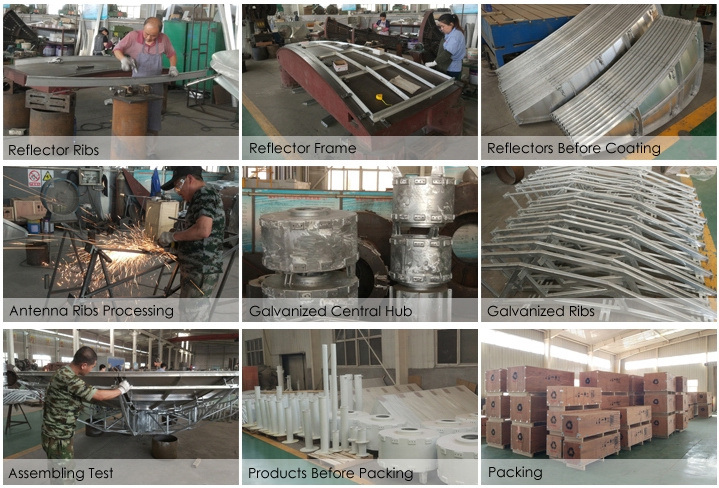

MANUFACTURING PROCESSES

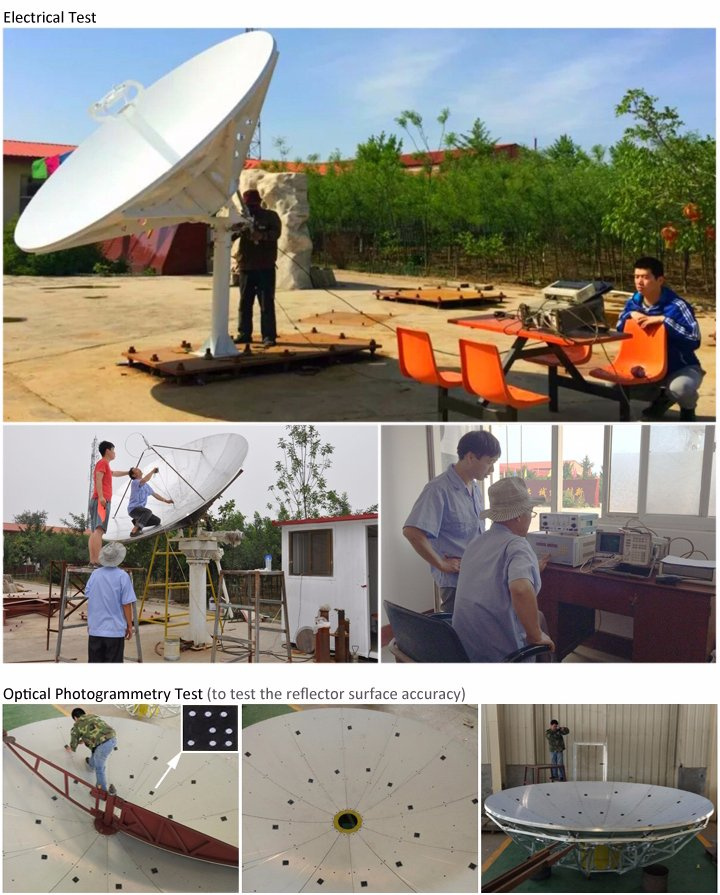

FACTORY TEST
CERTIFICATES
