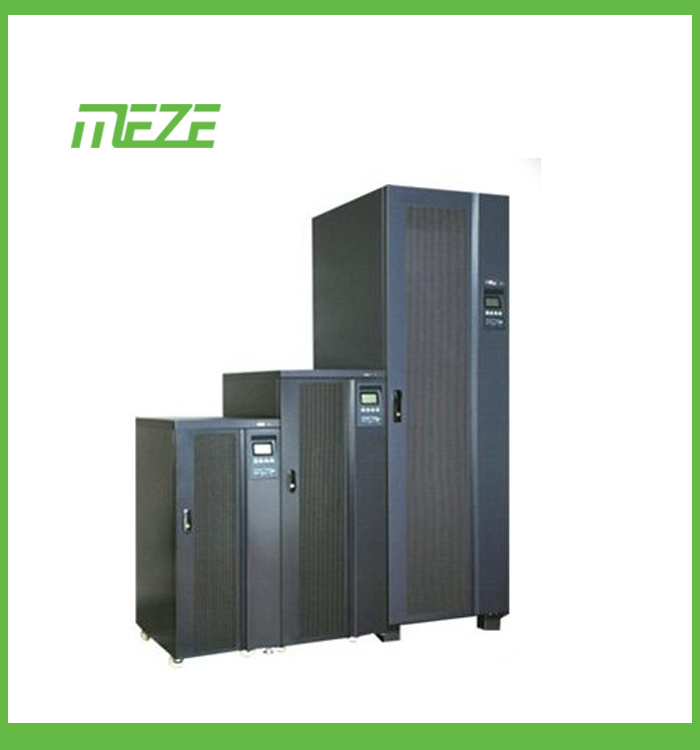

3 Phase Power Inverter UPS 10k - 80kVA with Meze Online UPS
| Price: |
US $ 13000-15548/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
3 Phase UPS Uninterruptible Power Supply 10k - 80kVA with Meze UPS
MZT9830L in high-power three-phase input three-phase output series UPS, stand alone capacity from the 10 kva to the 400 kva, this series of products is the use of advanced
DSP digital technology, cooperate with high-speed 16-bit digital chip, ASIC DDC control
technology with the perfect combination of advanced high power devices IGBT and SCR,
designed the large capacity, high reliability and excellent performance of intelligent UPS.
This series of products is the most advanced internation al latest hardware and software
combination of crystallization, Can provide multiple machines running parallel operation.
This series of products are widely used in communications center, precision instruments,
CAD, CAM, hospitals, military facilities, CNC equipment, SMT equipment, IT industry,
computer and peripheral equipment, multi-line slicing machine and large motor, etc.
MZT9830L series product characteristics and application fields
By 12 SCR (silicon controlled rectifier) near the inverter side and roadside dual non
contact static switch, to ensure that the inverter power supply and the bypass uninterrupted
switch between power supply, and make sure the output voltage waveform is continuous
and smooth.Control circuit adopted a "zero" switching technology, ensures the UPS in
synchronous phase lock switch time 0 ms, out of sync with power grid, switching time is less
than 4 ms, no matter how to change, namely the gri d frequency all can ensure the UPS
output voltage, frequency stability and uninterrupted.
MZT9830L series UPS has extremely strong self-diagnosis function, the whole machine
set up 32 sensors, point to point with DSP detection and response of the ultra-high speed,
makes MZT9830L series UPS self protection function is perfect, as many as 200 of the fault
information prompt, and equipment parameters setting, real-time information data record
diagnostic function to protect the UPS into the state in time, in addition, the machine is
special equipment for emergency shutdown system is designed.
Can automatically adjust the 1 a - 50 - a large current charger, battery since the diagnosis
and maintenance system, since the choice of the battery maintenance mode, the batter y
automatic alarm system, batter y regularly circulation system, selection of no-load protection
Settings, etc.
MZT9830L panel (g) series UPS is equipped with a large screen
super bright backlit LCD touch sc reen, 320 * 240 dot matrix of the
display mode in Chinese, is completely suitable for domestic users
to use and operation.
LCD displays more than 200 information to real-time cycle
shows the utility and UPS running state.MZT9830L set series UPS
panel has many functions and parameter Settings button, fully
realized the man-machine interactive two-way dialogue, so to speak,
Dual static switch
Self diagnose and self protection
Rechargeable battery intelligent management
The man-machine dialogue with the remote monitoring and
network management
Main characteristics:
LCD panel
| MZT9830L the main technical parameters |
| modelMZT9830L | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | 150KVA | 200KVA | 300KVA | 400KVA |
| Nominalcapacity(KVA) | 10 | 15 | 20 | 30 | 40 | 60 | 80 | 100 | 120 | 150 | 200 | 300 | 400 |
| | | | | | | | | | | | | | | |
| | | | | | | | | | | | | | | |
| | | | | | | | | | | | | | | |
| Singe-phase maximum current input(A) | 19 | 29 | 38 | 57 | 76 | 114 | 152 | 189 | 227 | 303 | 379 | 568 | 609 |
| Works as well as the principle | On-line power supply,static bypass switch(uninterrupted switch)double conversion technology |
| Ac input parameters | Number of phase | Three-phase+N+G |
| Nominal voltage | 380VAC±25% |
| Nominal frequency | 50Hz±10%,60Hz±10% |
| The voltage harmonic distortion | <10% |
| Soft sart | 0-100%5sec |
| The bypass | Number of phase | Three-phase+N+G |
| Nominal voltage | 380VAC±15% |
| Nominal frequency | 50Hz/60Hz±10% |
| Inverter/bypass(conversin) | 0ms |
| The battery | Number of battery unit | 30knots/12v series |
| Nominal battery voltage | 360V |
| maximum discharge current(A) | 25 | 38 | 51 | 76 | 101 | 152 | 203 | 253 | 305 | 405 | 550 | 760 | 1015 |
| Float chargin voltage | 405V(3 months automatic battery to charge,charge voltarge voltage 435V) |
| Charging curret | 1A-5A(according to battery capacity setting) |
| inverter | The load power factor | 0.8(0.9optinal) |
| Number of phase | Three-phase+N+G |
| Nominal voltage | 380VAC±1%(The steady-state load),380VAC±3%(The load fluctuation |
| Nominal frequency | 50Hz±0.05%,60Hz±0.05%(Battery power) |
| Frequency stability:when not in sync | <±0.05% |
| When the frequency stability:synchronization | <±5% |
| Output waveform | Sine wave |
| Total harmonic distortion | Lindar load<2%:The nonlinear load<4% |
| Dynamic load voltage transients | <5%(from 0 to 100% more |
| Transient recovery time | <10ms(±5%) |
| Unbalanced voltage | <±1%(Balance the load voltage),<±3%(Unbalanced load) |
| Overload capacity | Overload for ten min later turn the bypass,125% 150%overload lasts1 min after bypass |
| The inverter efficiency and load by 100% | 95% |
| The system structure | Total efficiency of 100% load | 91%,95%.ECO |
| Computer ommunication interface | Rs232,(Rs485.Network remote monitoring software) |
| Operating temperature | 0-40ºC |
| Relating humidity | 0-90% Without any condensation |
| Running high | <1500m(each additional,100meters power fell by 1%, the highest4000meters |
| Cooling way | Forced vention(temperature control) |
| Noise(db) | <65 |
| The body color | black |
| The input cable | The bottom/bcak |
| Easy to maintain | On/about/in front of the plane can be opened |
| Lnput device | Terminal row |
| The output device | Terminal row |
| Size (D×W×H) | 725×450×1135 | 855×450×1235 | 715×855×1500 | 1100×900×1700 | 1200×1500×1800 | 1300×1800×1800 |
| The host weight(kg) | 200 | 250 | 340 | 400 | 480 | 650 | 900 | 1200 | 1300 | 1480 | 2000 | 2100 | 2500 |
| Option to | Rs485,weaver board,network management system,battery testing sydstem,lightning protection devices for option |
| is required to order |
