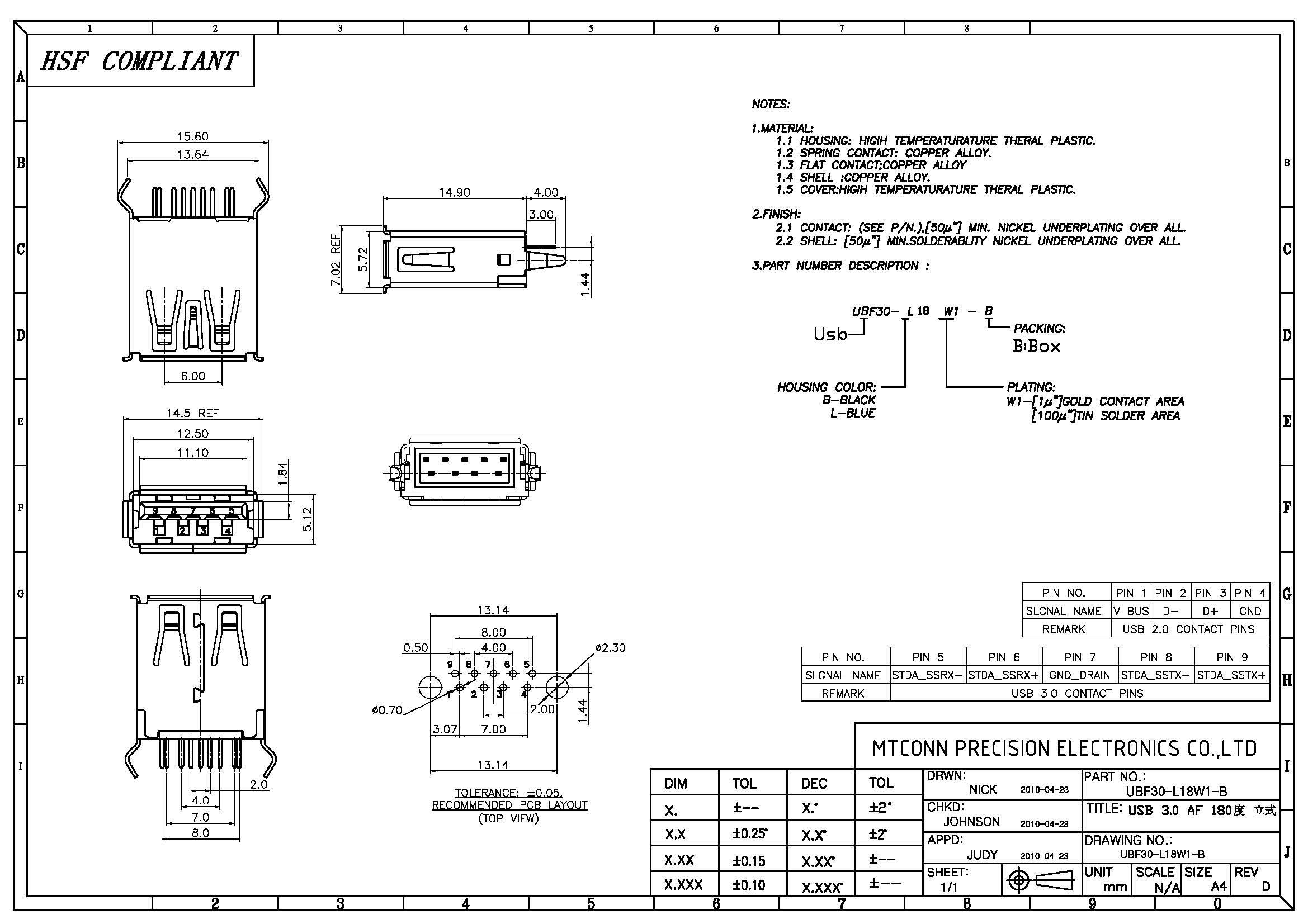

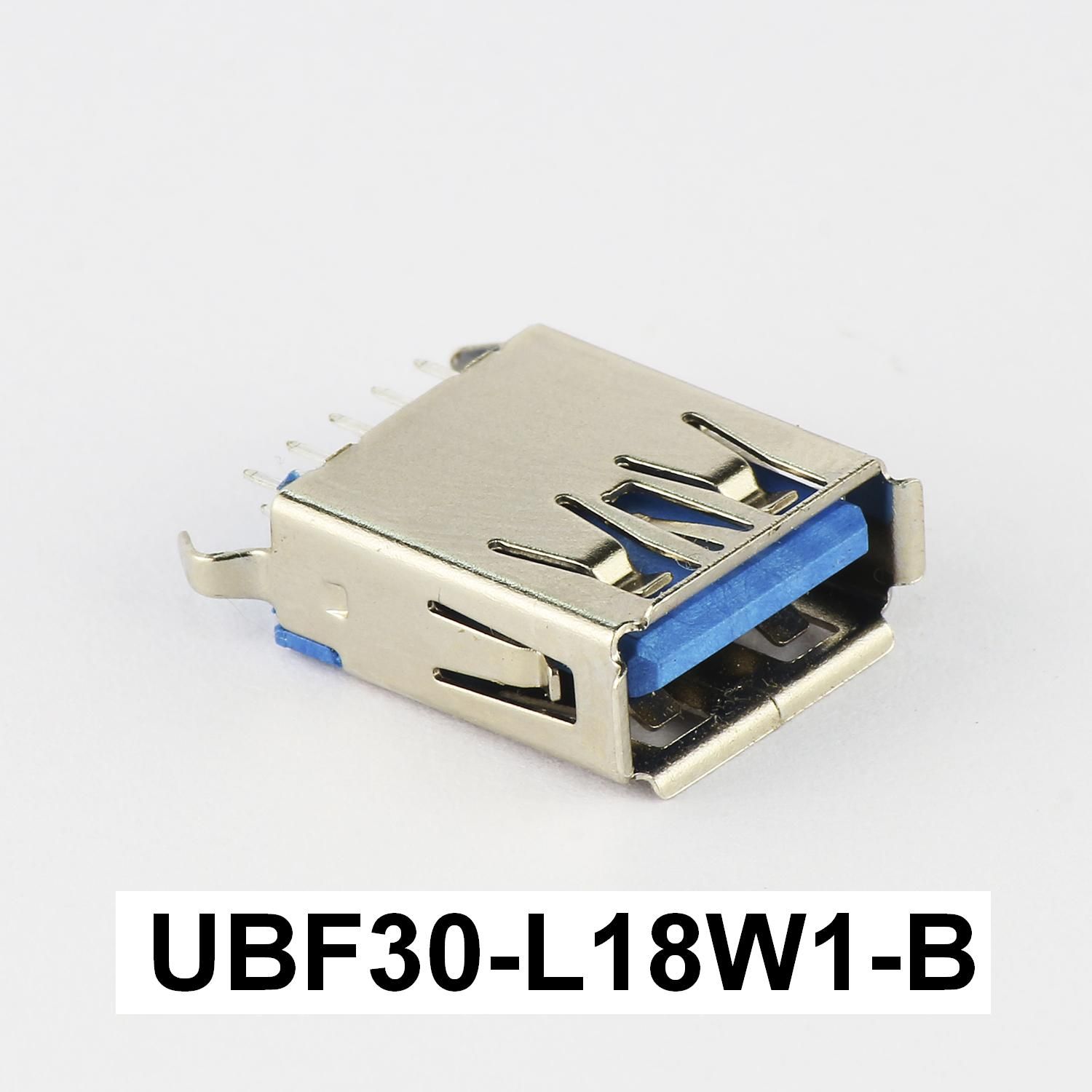

3.0 Vertical USB Female Connector

Product Datasheets
Features:
1. With A Type/B Type/Mini USB variety of types of public Socket Interface Design;
2. Installed in the form of DIP/SMT/clip wire/wire type available;
3. Flexible design of terminal contact area to ensure good contact performance and long life requirements;
4. Meet a variety of welding equipment parameters temperature requirements

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature

Material
1. Housing: PBT White/Black
2. Terminal: Phosphor Bronze Plating Gold/Tin
3. Shell: BRASS Plating Ni

Applications:
The can be used in mobile phones, CD players, cordless telephones, MP3, MP4 PDA notebooks, DVD and digital camera.

Specification

Eelectrical Characteristics
Contact Curren Rating	0.5A Min.
Voltage Rating	40V AC (rms)
Withstanding Voltage	500V AC for 1 Min.
Insulation Resistance	100 Megaohms Min.
Contact Resistance	30 mΩ Max.
Mechanical Characteristics
Insertion Force	44.1 N (4.5kgf) Max
Withdrawal Force	9.8 N (1.0kgf) Min.,3 9.2N( 4.0kgf) Max.
Durability	10000 cycles at 100±50 cycles per hour
Environmental Characteristics
Operating Temperature	-25ºC to +85ºC
