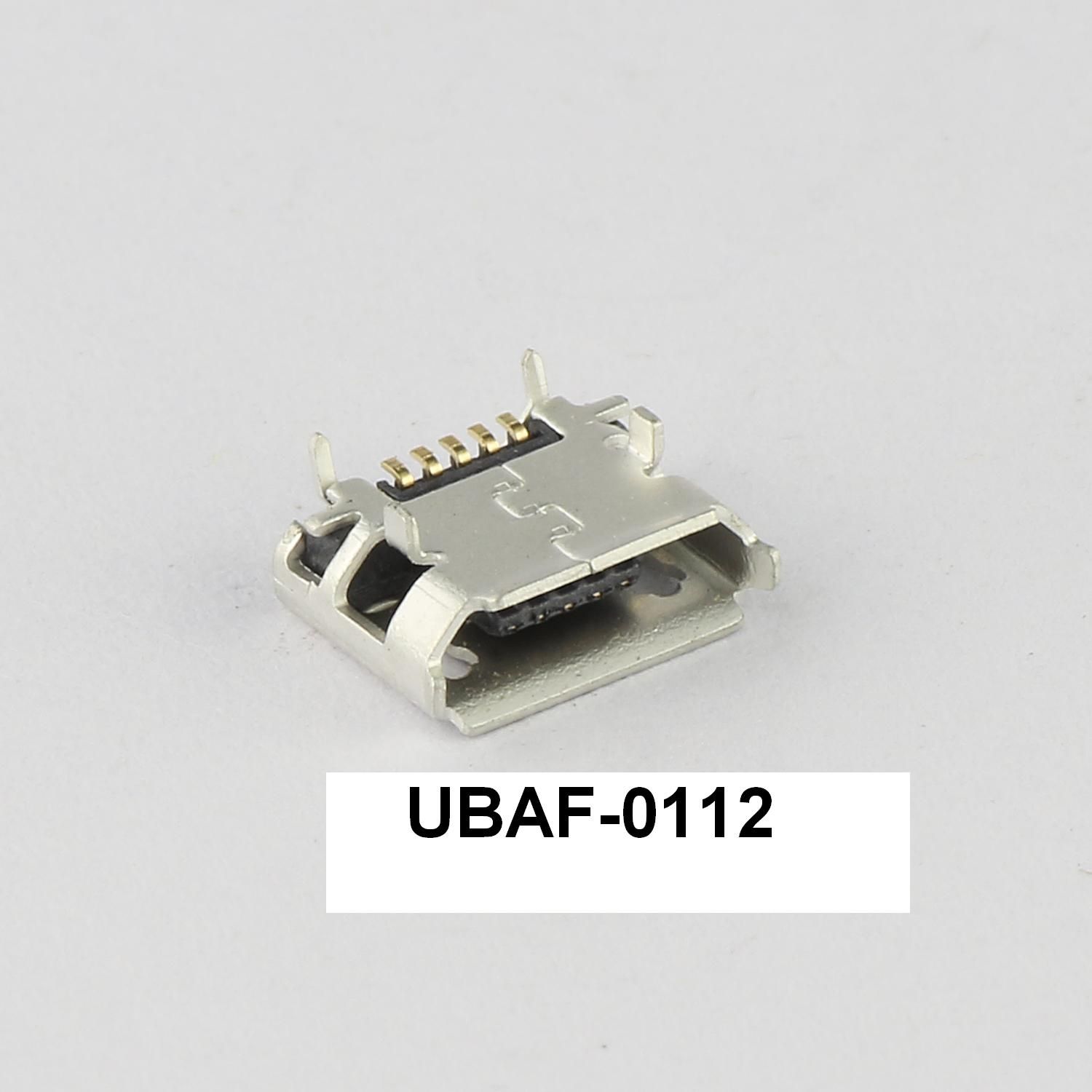

Micro USB Receptacle of 5pin DIP Type

Product Datasheets




Product Specifications:

Product Name	Micro USB 5pin Receptacle DIP Type
Current Rating	1.8AMP
Insulation Resistance	100MΩ MIN.
Contact Resistance	30mΩ MAX.
Withstanding voltage	100V AC
OperatingTemperature	-30ºC to +80ºC
Place of origin	Shenzhen,Guangdong, China (Mainland)
Trade terms	EXW,FOB,CIF,and so on.
Transport way	By sea,by air,by express.
Standard	ROHS,REACH
