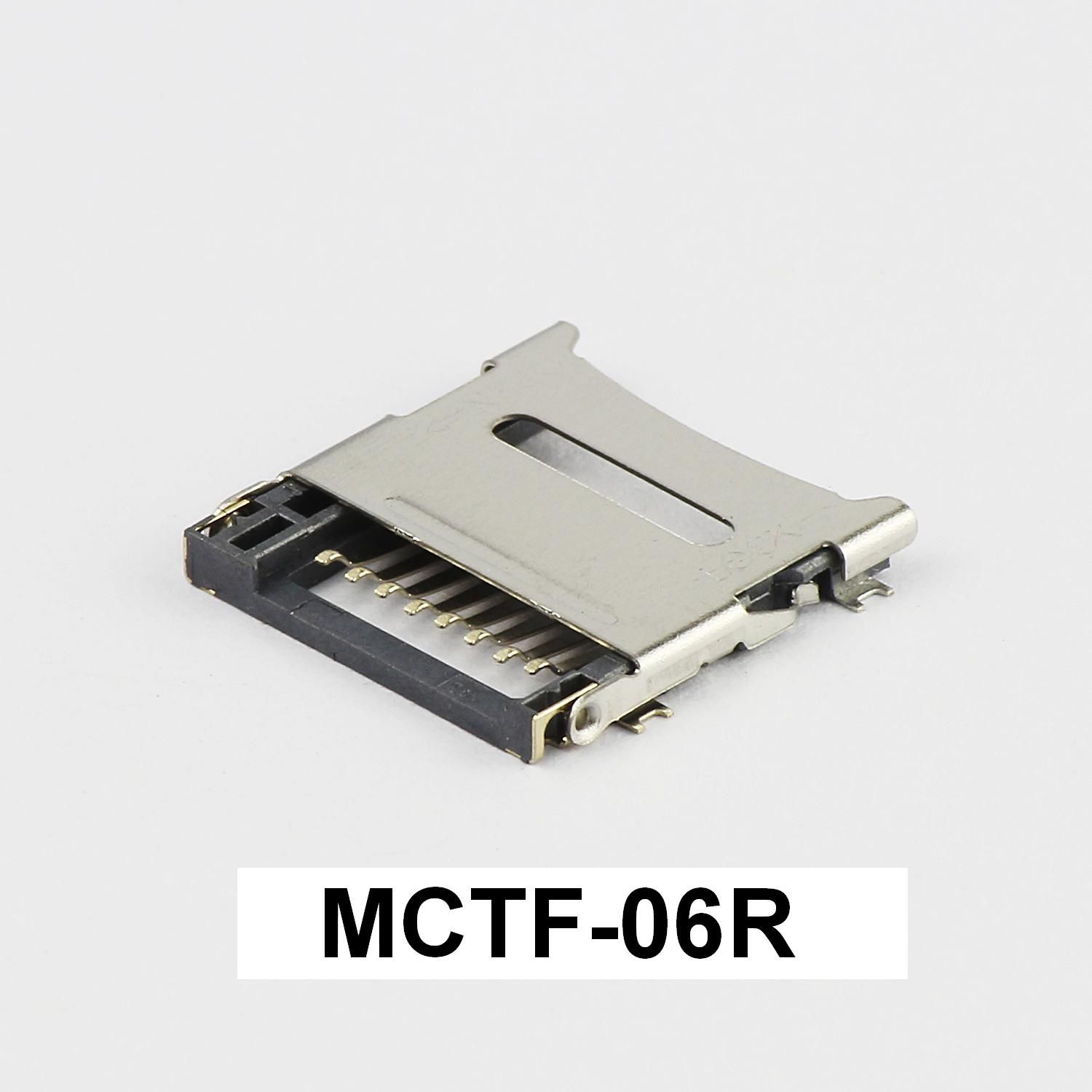

Micro SD Memory T-Flash Card Connector TF Card Connector

Prod Model:	Micro SD Memory T-Flash Card Connector TF Card Con
Application:	Communication
Type:	TF Jack
Interface Type:	SD
Shape:	Rectangular
Feature:	Moistureproof
Cards Support:	Single Card
Installation Mode:	SMD

Product Description

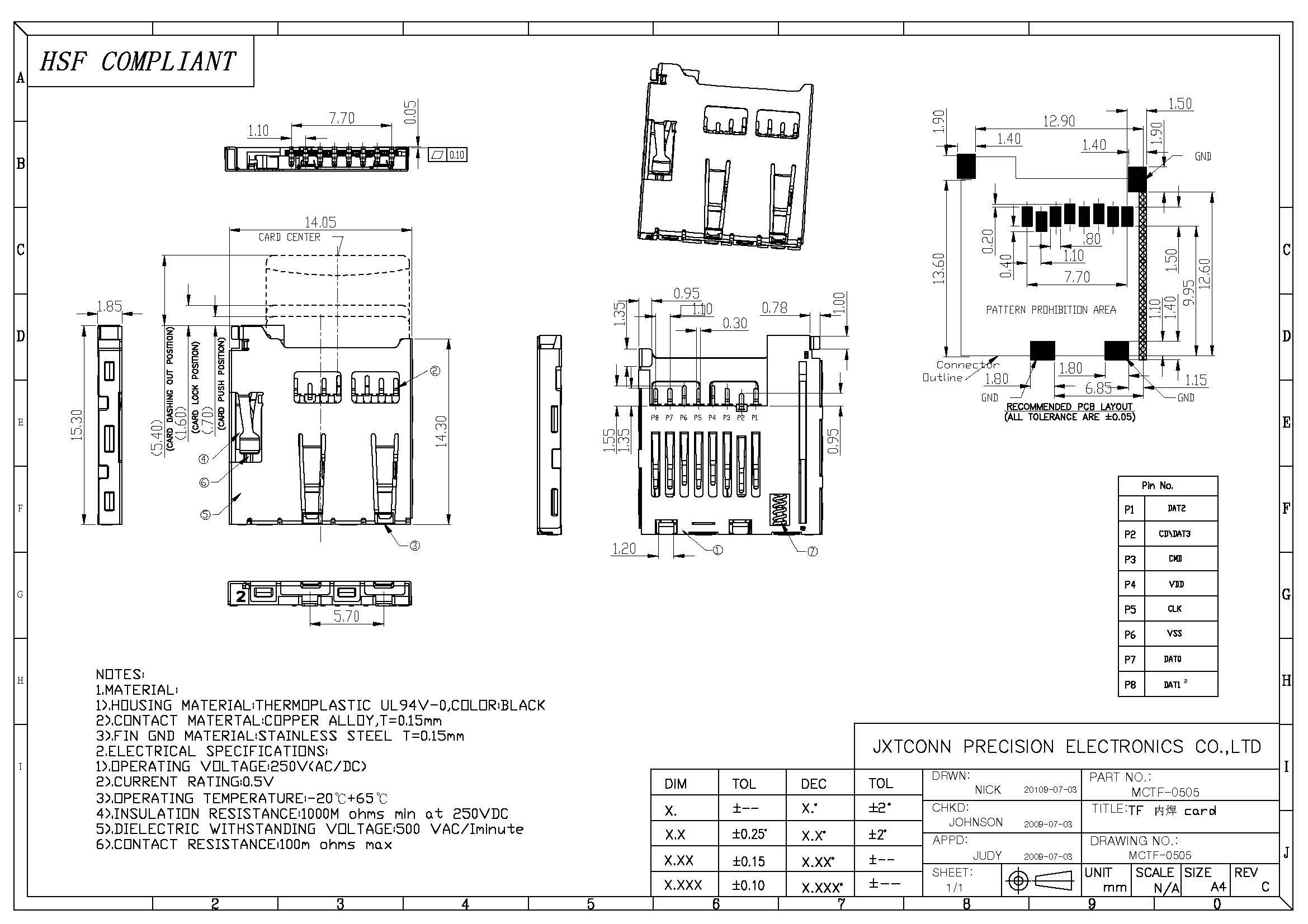

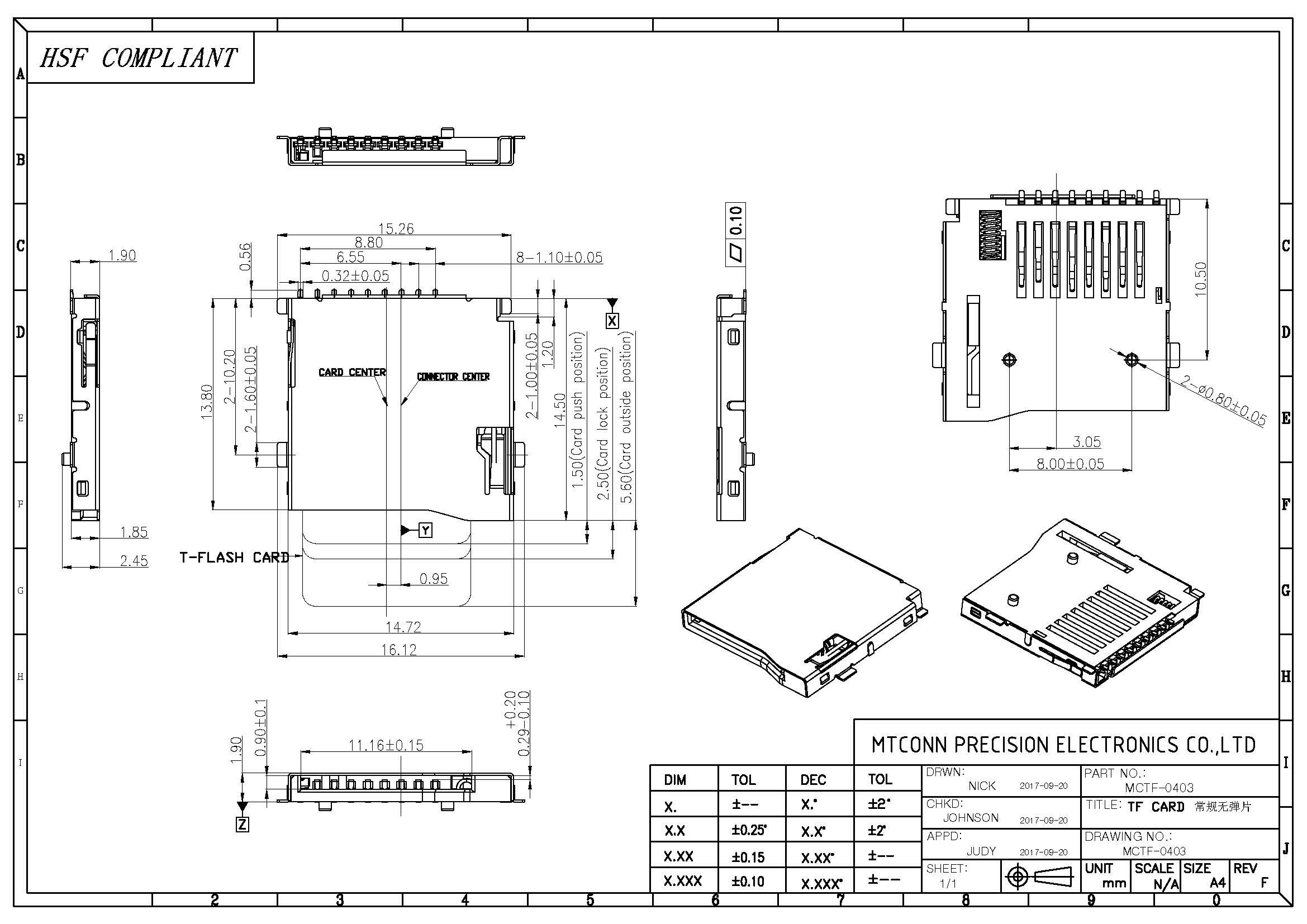

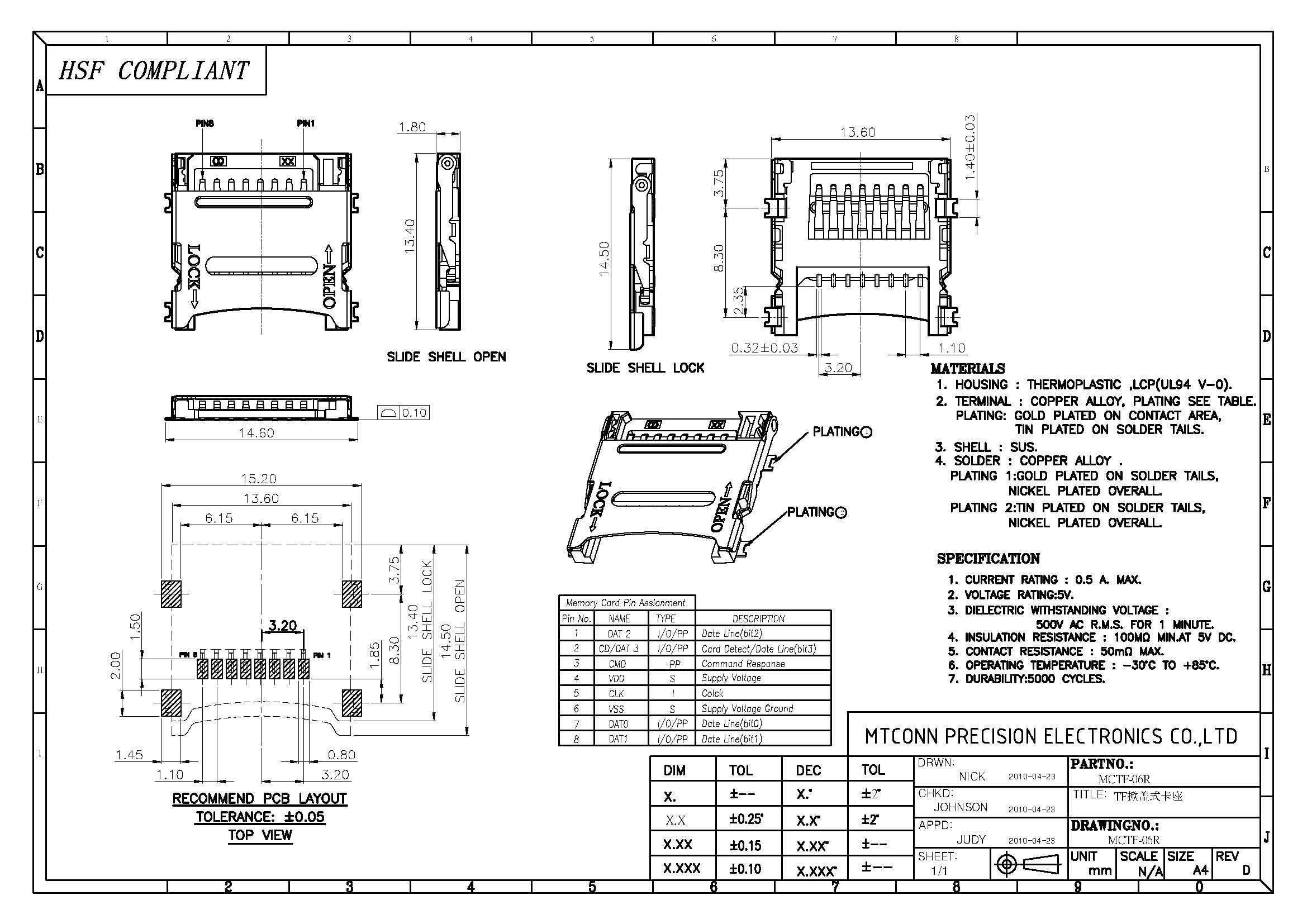

Product Datasheets

Micro SD Memory T-Flash Card Connector TF card Connector  for Mobile(HY-TF1007F)


Specification:

Applications:
Can splice graphics CARDS, sound CARDS, network CARDS, built-in Modem, built-in ADSL Modem, USB card, IEEE1394 card, IDE interface card, RAID card, TV card, video acquisition card, and other varieties of expansion card

material:
1,Housing: high temperature thermoplastic
2,Contact: copper alloy.
3,Shell: copper alloy
4,Contact area: gold plated over ni
5,Solder tail: 100u" min sn/pb plated over ni
6,Shell solder area: gold plated over ni

Electrical Parameter:

Rated voltage	100V AC
Rated current	0.5A Max
Contact resistance	40mΩ Max
Insulation resistance	1000MΩ Min
Withstand voltage	AC 500V (50Hz for 1min)
Practical life	50, 000 Cycles
Insertion force	13.8N Max
Extraction force	1N Min
Practical temperature range	-20ºC ~+60ºC
Flammability	UL94V-0

Why choose us ?

1. Quality Control
To ensure the quality of our vehicles and other products, Our QC staffs do strict supplier evaluations, in-coming inspections, in-process inspections, final inspections and pre-delivery inspections. The most important is that we listen to what our customers say and are always looking for ways to improve the quality of our products through continuous improvement.

2. OEM Ability
We have built stable and long-term cooperate relationshilp with supermarkets,we can also provide ODM, OEM and Agent services to our customers over the world.

3. Parts Available
We have spare parts for immediate delivery to anywhere in the world. While our vehicles become standard with more features than anyone else, we also offer more optional parts for our vehicles than anyone else.

4. Good Warranty
We take customer satisfaction and product quality as the first priority for us. We supply reliable warranties and good after-sales services.

F A Q

*Q:Can I get samples from you?
 A:We are honored to offer you samples for quality check.

*Q:What parts are manufactured by you?
A:All of frame parts are manufactured by us.

*Q:What's the leading time? (How long do you need to prepare my goods?)
A:10 days for sample orders. 30 days for mass production orders (based on different quantities)

*Q:How long do I need to wait before my goods arrive?
A:3-5 days for international express. 5-7 days for air transportation, 35-40 days for sea transportation.

*Q:Can you put my brand name (logo) on these products?
A: Yes, or container order. Sticker order qty over 100pcs.

*Q:What payment methods do you accept?
A:T/T, L/C, Western Union, Money Gram, etc.

*Q:What certificates do you have?
A:Since Europe and America are our main markets, all of our products are with EEC /EPA certificate. For some models, the certificates are already available
