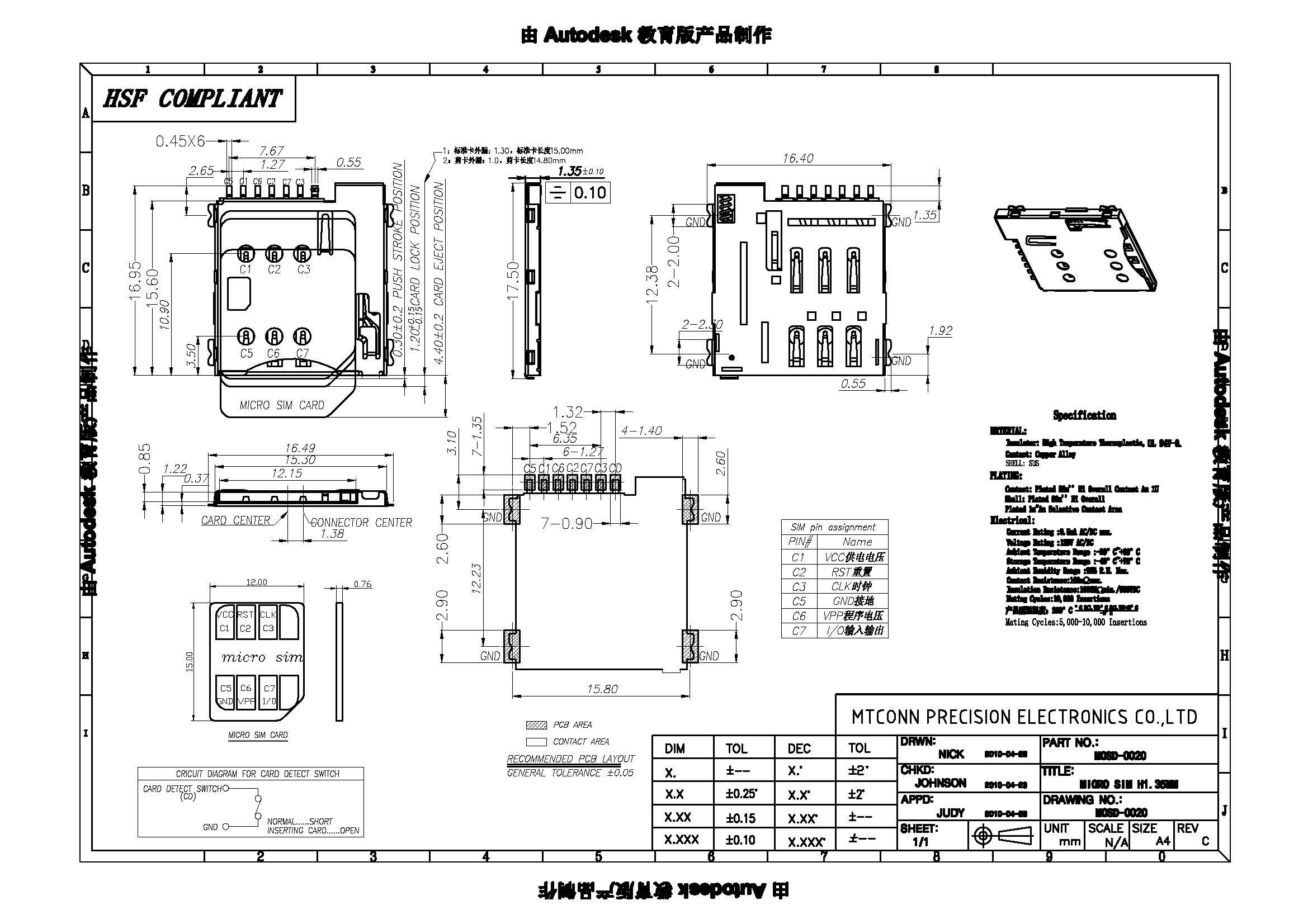

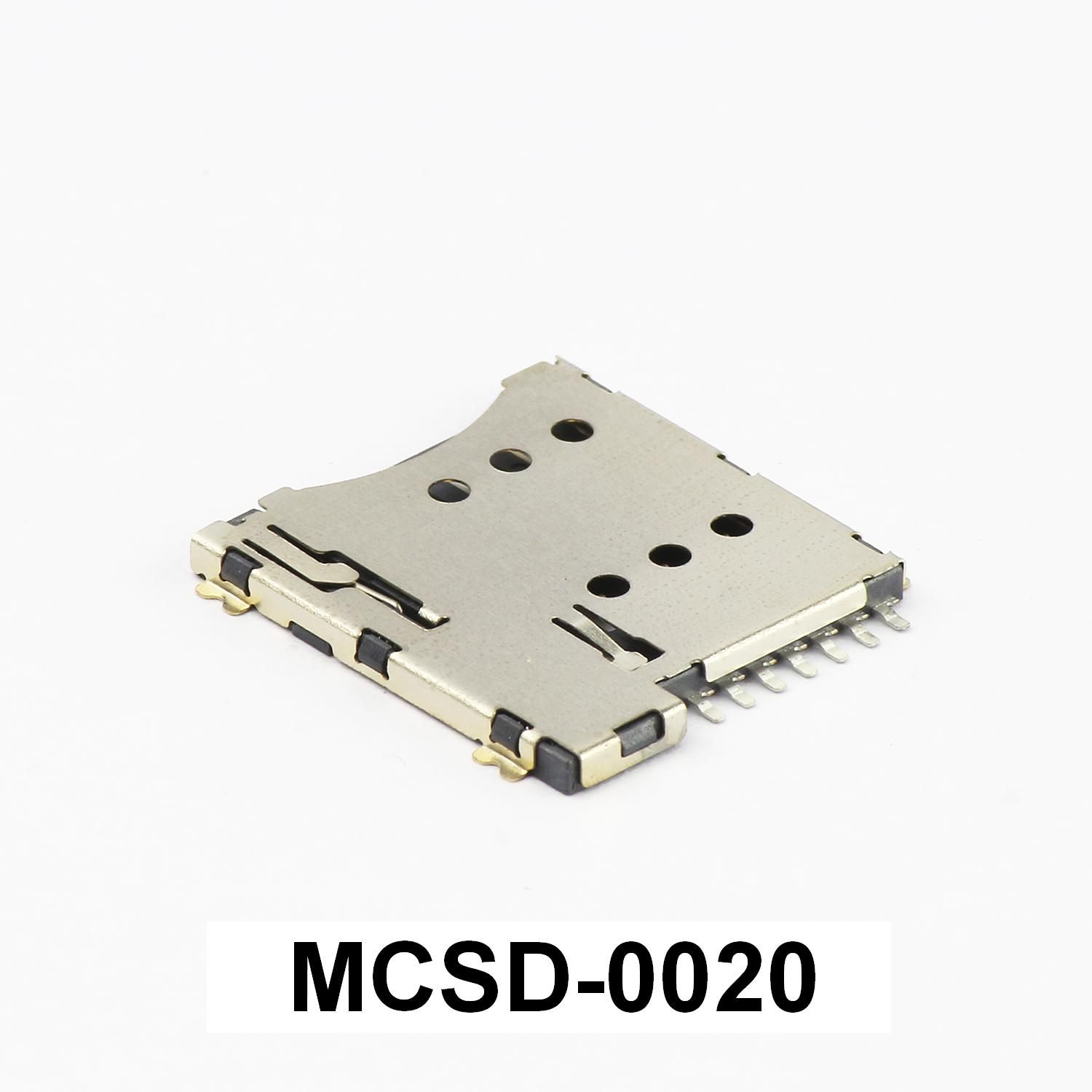

Micro SIM Card Socket SIM Card Connector with SMD Type

Product Datasheets

Applications:
Can splice graphics CARDS, sound CARDS, network CARDS, built-in Modem, built-in ADSL Modem, USB card, IEEE1394 card, IDE interface card, RAID card, TV card, video acquisition card, and other varieties of expansion card

material
housing:high temperature thermoplastic
contact:copper alloy. shell:copper alloy
plating
contact area:gold plated over ni
solder tail:100u" min sn/pb plated over ni
shell solder area:gold plated over ni

Specification
Rated voltage: 100V AC
Rated current: 0.5A Max
Contact resistance: 40MΩ Max
Insulation resistance: 1000MΩ Min
Withstand voltage: AC 500V (50Hz for 1min)
Practical life: 5, 000 Cycles
Insertion force: 13.8N Max
Extraction force: 1N Min
Practical temperature range: -20ºC -- +60ºC
Flammability: UL94V-0




Why choose us ?

1. Quality Control
To ensure the quality of our vehicles and other products, Our QC staffs do strict supplier evaluations, in-coming inspections, in-process inspections, final inspections and pre-delivery inspections. The most important is that we listen to what our customers say and are always looking for ways to improve the quality of our products through continuous improvement.

2. OEM Ability
We have built stable and long-term cooperate relationshilp with supermarkets,we can also provide ODM, OEM and Agent services to our customers over the world.

3. Parts Available
We have spare parts for immediate delivery to anywhere in the world. While our vehicles become standard with more features than anyone else, we also offer more optional parts for our vehicles than anyone else.

4. Good Warranty
We take customer satisfaction and product quality as the first priority for us. We supply reliable warranties and good after-sales services.

F A Q

*Q:Can I get samples from you?
 A:We are honored to offer you samples for quality check.

*Q:What parts are manufactured by you?
A:All of frame parts are manufactured by us.

*Q:What's the leading time? (How long do you need to prepare my goods?)
A:10 days for sample orders. 30 days for mass production orders (based on different quantities)

*Q:How long do I need to wait before my goods arrive?
A:3-5 days for international express. 5-7 days for air transportation, 35-40 days for sea transportation.

*Q:Can you put my brand name (logo) on these products?
A: Yes, or container order. Sticker order qty over 100pcs.

*Q:What payment methods do you accept?
A:T/T, L/C, Western Union, Money Gram, etc.

*Q:What certificates do you have?
A:Since Europe and America are our main markets, all of our products are with EEC /EPA certificate. For some models, the certificates are already available
