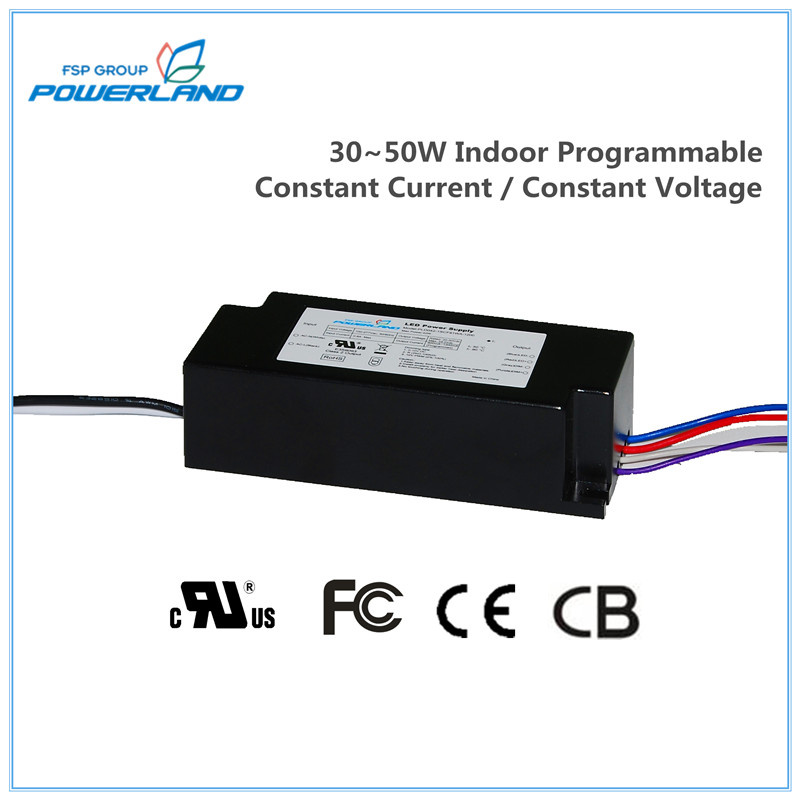

30~50W Indoor Programmable Constant Current / Constant Voltage LED Driver
Powerland's PLD030/042/050-1SCF691WA series offers digital programmable drivers with wide-range adjustable output current and 108~305Vac universal input.
The output current of this series are programmable up to 0.7/1.2/1.4A, and designed for 0-10V/PWM/Rset/Clock dimming applications.
Applications
Outdoor & indoor LED lights
LED lights with flexible current settings
Downlights, high bay and low bay lights, spot lights, LED panels
Features
100,000 hours lifetime at 70oC Tcase
5 years warranty at 70oC Tcase
Constant current
Output current & output voltage programmable
Compatible with 0-10V, PWM, external resistor, clock dimming
Universal input voltage: 108~305Vac
Safety according to UL1310 & EN61347-2-13
UL Class 2 Output
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, & Open Circuit ProtectionSpecificationsInput
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input
Current | Max. Input
Power | THD | Power
Factor |
| 108~305Vac | 30~50W | 20V
…
50V | 0.07A
…
1.4A | 89% | 90oC | 0.65A | 59W | <20% | >0.95 |
* Based on 25oC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.
Electrical Specifications| Model | PLD030-1SCF691WA-700 | PLD042-1SCF691WA-1200 | PLD050-1SCF692WA-1400 |
Output Voltage | 20~50V | 20~50V | 20~50V |
Output Current | 70~700mA | 120~1200mA | 140~1400mA |
Dimming
| 0~10V, PWM, External Resistor, Clock |
Current Programmable
| Yes |
Output Power | 30W | 42W | 50W |
Max. Current Ripple | ±30% | ±30% | ±30% |
Voltage Range | 108~305Vac | 108~305Vac | 108~305Vac |
Frequency Range | 47~63Hz | 47~63Hz | 47~63Hz |
Max. Input Current @ 230Vac | 0.4A | 0.4A | 0.65A |
Max. Input Power | 37W | 37W | 59W |
Power Factor | >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency | 86% | 89% | 89% |
Max. Open Circuit Voltage | 59.5V | 59.5V | 59.5V |
THD | <20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load |
Protections | OVP, OTP, OCP, SCP |
Environmental Protection | UL Dry & Damp & Wet, and Type TL |
Working Temperature | -20~+50oC |
Max. Case Temperature | 90oC |
Surge Protection | 1kV |
Agency Approbations | UL1310 Class 2 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension | 108x45x29.5 mm (4.25x1.77x1.16 inch) |
Mounting Length | 98 mm (3.86 inch) |
Overall Length | 108 mm (4.25 inch) |
Weight | 0.13 kg (0.27 lb)
| 0.15 kg (0.34 lb)
| 0.28 kg (0.63 lb)
|
Life Time | 100,000 hours @ full load, 70oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.
Performance Characteristics

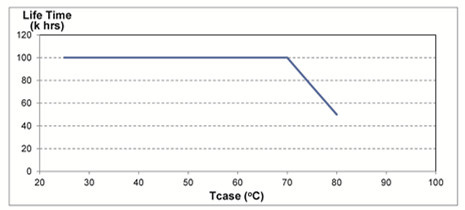

Life Time vs. Case Temperature
