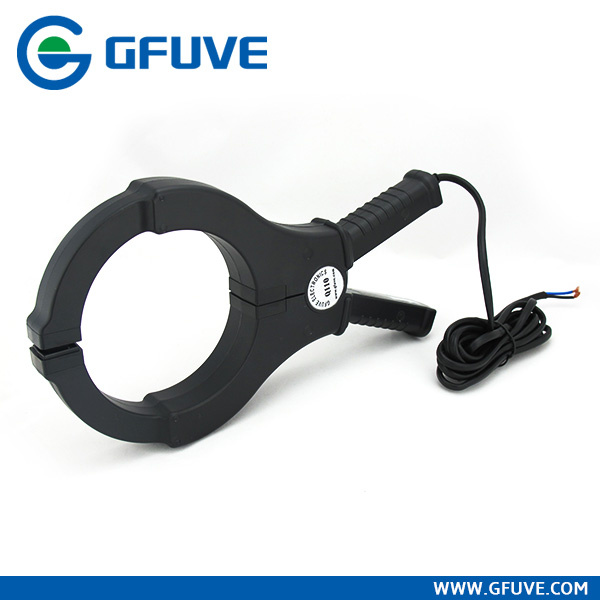

Q125B COMPACT 3000A/5A high accuracy Clamp CT Current Sensor
The model Q125B 3000A/5A high accuracy Clamp CT Current Sensor is a high accuracy ct, the advanced design ensures enhanced linearity and the jaw opening system provides enhanced safety.
FEATURES
This product can be used in large current situation; also can cooperate to cable fault tester and cable identification device, used for cable test work.
Holding wire diameter: φ110mm
Dimension: 163mm×310mm×34mm
Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output
PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.2%, 0.5%
Primary current	0 - 3000A AC
Secondary current	0 - 5A AC (customized)
Output signal	500mA,1A,5A AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032
Installation	clamp type
Output mode	lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	163 x 310 x 34
Weight (g)	900
Holding wire diameter (mm)	φ125
Max. jaw opening (mm)	125

Prod Model:	Q125B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Clamp CT Current Sensor
Operating Temperature:	-20~55
Measuring Current Range:	0~3000A
Dimensions:	116mm327mm35mm
Weight:	1200g
Accuracy:	0.5%
Ratio:	3000/5A
Color:	Black
Jaw:	125mm
Output Signal:	0-5A AC
Brand:	Gfuve
Display:	Digital
Stucture:	Electromagnetic
Voltage:	Low Voltage
Certification:	CE, RoHS, ISO
