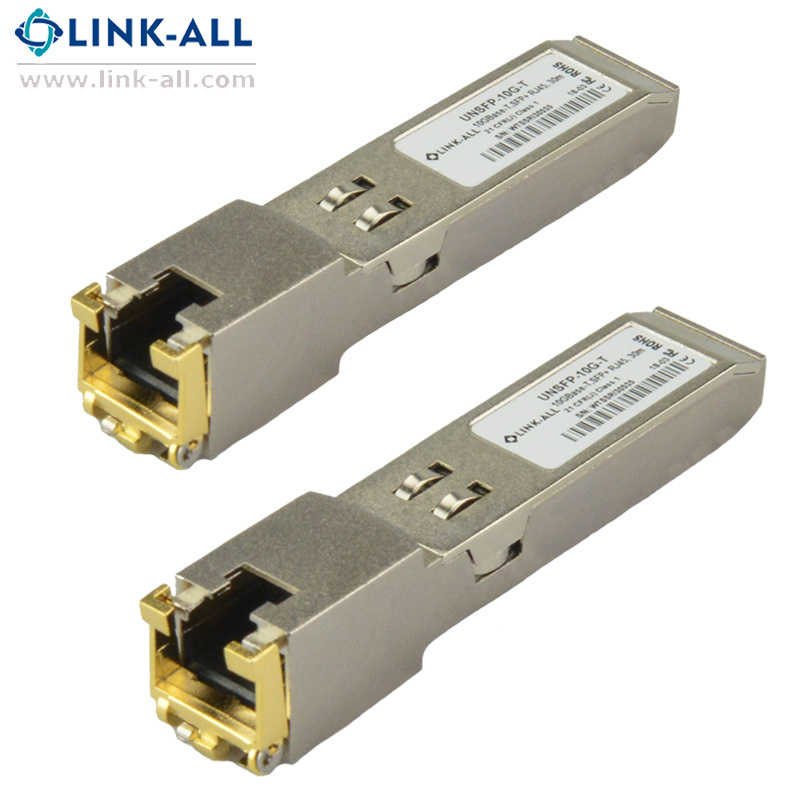

30m Low Cost 10-100 Base-T Copper SFP

Name: 30m Low Cost 10-100 Base-T Copper SFP
Brand: all-electronics-online.com
SKU: 837121865
Availability: InStock
Rating: 4.6 (140 reviews)

Price:	US $ 12/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

  Overview

    Hot Pluggable, With Small Form Pluggable Low Voltage 3.3 V ,Used twisted pair category 5 cable, Link lengths at 10/100Base-Tx up to 100m ,Temperature applications as 0ºC to +70ºC

    Descriptions

    UNISKY UNTSFP-03-1113F 10/100 Base-Tx SFP Copper Transceiver is high performance, cost effective module, compliant with the Fast Ethernet and 100BASE-T standards as specified in IEEE 802. 3-2002, which supports 100Mb/s data-rate up to 100 meters reach over twisted-pair category 5 cable.
    UNTSFP-03-1113F is the 10/100Base-Tx SFP Copper Transceiver.
    The UNTSFP-03-1113F supports 10/100 Mb/s full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals.
    The UNTSFP-03-1113F provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol.

    Features

Hot-pluggable SFP Footprint

Fully Metallic Enclosure for Low EMI

Low Power Dissipation

Compact RJ-45 Connector Assembly

Detailed Product Information in EEPROM

+3.3V Single Power Supply

10/100 BASE-Tx Operation in Host Systems with 100 BASE-Fx SFP Interface

Compliant with SFP MSA

Compliant with IEEE Std 802.3TM-2002

Compliant with FCC 47 CFR Part 15, Class B
Compliant with RoHs.
Temperature range (0°C to +70°C )

Applications

Fast Ethernet over Category 5 Cable
Switch/Route to Switch/Route Link

High Speed I/O for File Servers

Fast Ethernet over Category 5 Cable
Switch/Route to Switch/Route Link

High Speed I/O for File Servers

Ordering Information

Part Number	Link Indicator on RX_LOS PIN	10/100BASE-Tx auto-negotiation enabled by default
UNTSFP-03-1113F	Yes	Yes

Prod Model:	UNTSFP-03-1113TF
Product Name:	Copper Transceiver
Speed Rate:	10gbase
Transmitting Distance:	30m
Connector Type:	RJ45
Communication Module:	SFP+
Interface Type:	Plug-in Module
Usage:	Server
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New
