Prod Model: |
HBGQ30-11ET/S, 11EZT/S, 22ET/S, 22EZ/TS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Switch Rating: |
5A/250V AC |
Contact Configuration: |
1no1nc, 2no2nc |
Operatiion Type: |
Momentary/Latching |
Crust Material: |
Stainless Steel |
IP Protection Degreee: |
IP65, Ik10 |
Terminal Type: |
Pin Terminal |
Illuminated Type: |
Ring-Illuminated |
Usage: |
Check Button |
Kind: |
Double-pole on-off Switch |
Type: |
1no1nc |
Brand: |
Hban |
Certification: |
CE, RoHS, ISO9001 |
Product Description

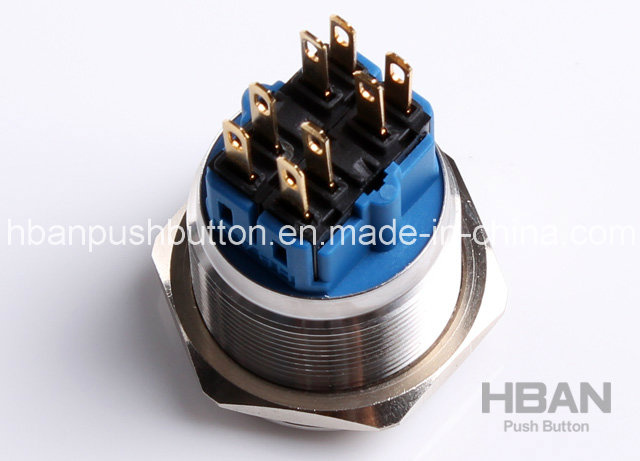

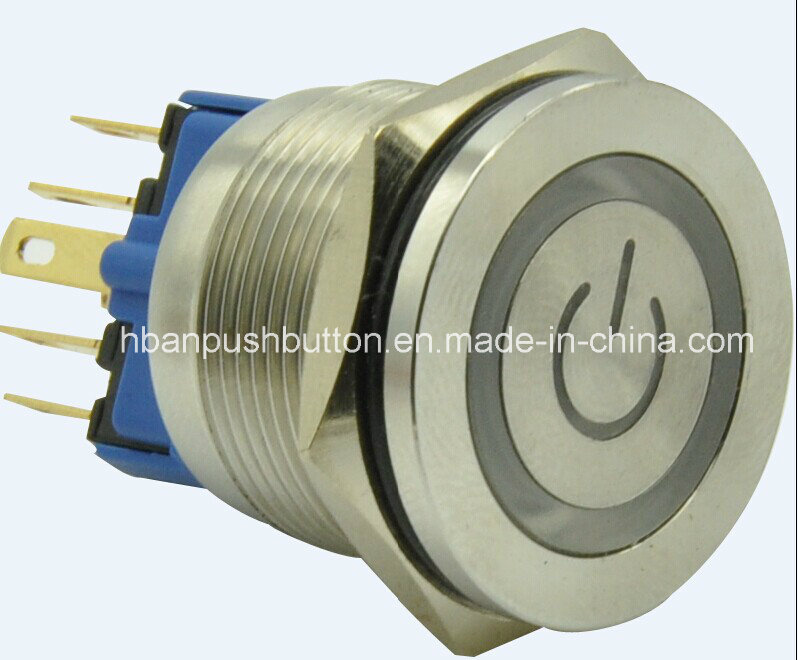

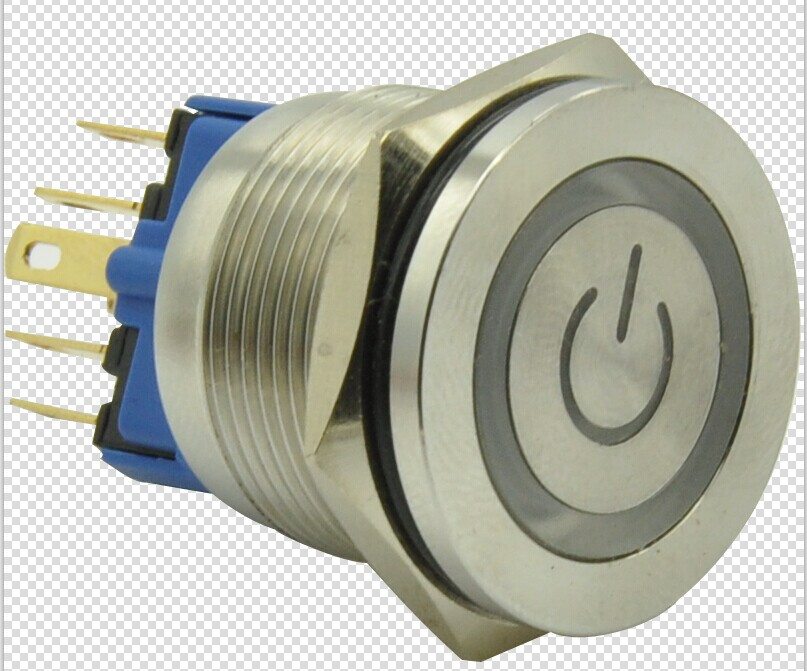

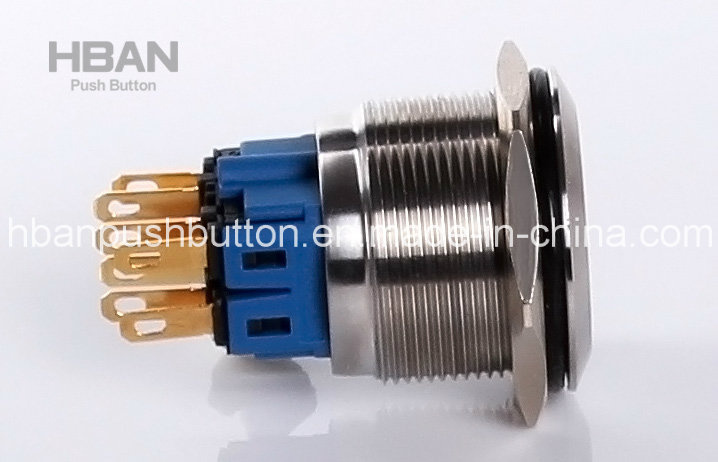

Waterproof metal maintained pushbutton switches
Mounting Hole Size: Φ 30mm
Switch Rating: 5A / 250VAC
Front Shape: Flat
Connector: Pin terminal
Operation type: 1NO1NC, 2NON2C
Switch Type: Za Double-break fast-motion changeover contact
Protection Degree: IP65, IK10
Packing details:
We pack 10 pieces diameter 30mm metal push button switches into 1 foam box to protect them. We supply 10 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a kraft paper box, 25boxes will be packed into a carton.
About Us:
Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button switch, signal lamp, buzzers,
Waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power, electronics, production control,
Medical, banks, ships, automation and other industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
Tel: 0086-577-62708000 Fax: 0086-577-62708007
Item NO. | HBGQ30-11ET/S | HBGQ30-11EZT/S |
Specification | 1NO1NC,Momentary | 1NO1NC,Latching |
Item NO. | HBGQ30-22ET/S | HBGQ230-22EZT/S |
Specification | 2NO2NC,Momentary | 2NO2NC,Latching |
Front Head Shape | Flat Round |
Terminal Type | Pin terminal(2.8*0.5mm) |
Switch Type | C Single breakpoint snap-action changeover contacts |
Switch Specification | Ith:5 A Ui:250V AC |
Contact Resistance | ≤ 50mΩ |
Insulation Resistance | ≥1000mΩ |
Dielectric Strength | 2000V |
Operating Temperature | -22 degree~+55 degree |
Machanical Life | >1,000,000times |
Electrical Life | >50,000times |
Panel Thickness | 1-10mm |
Torque | 5-14Nm |
Operating Pressure | 3~5N |
Protection Degree | about 3.1mm |
Materisl | Contact | IP65,IK10 |
Button | Silver Alloy |
Case | Stainless Steel |
Base | Stainless Steel |
Lamp Parameters | Type | Ring-illuminated(LED) |
Rated Voltage | 6V/12V/24V/110V/220V |
Color | Red/Green/Orange/Yellow/White/Blue |
Life | 50,000hours |
Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.
After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.
At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
Tel: 0086-577-62708000 Fax: 0086-577-62708007
