| Prod Model: |
HBGQ19B-10 |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
19mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Terminal: |
Screw Terminal |
| IP: |
IP65, Ik09 |
| Crust Material: |
Stainless Steel/Nickle-Plated Brass |
| The Front Shape: |
Hyperplane Domed |
| Switch Rating: |
2A/36VDC |
| Dielectric Srtength: |
2000VAC |
| Operatipo Pressure: |
About 4 N |
| Type: |
Normal Open |
| Usage: |
Reset Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Hban |
| Contact Type: |
Type X Contact |
| Certification: |
RoHS, TUV |
Product Description

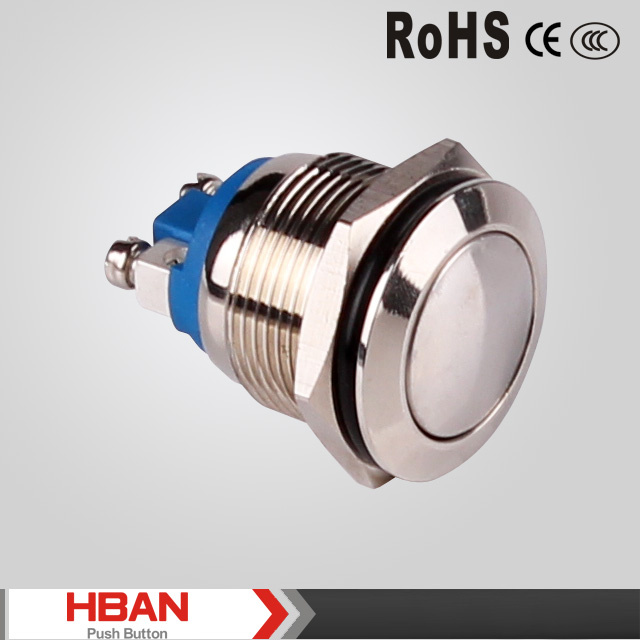

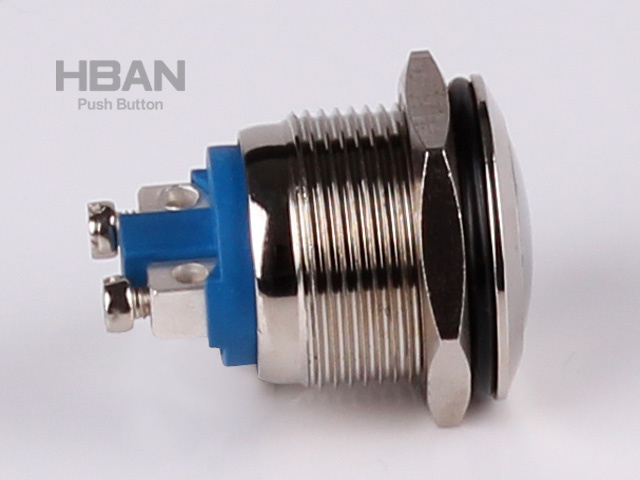

HBAN CE ROHS (19mm)Domed momentary metal push button switch
Part Number:HBGQ19B-10/N, HBGQ19B-01/N,HBGQ19B-10/S, HBGQ19B-01/S

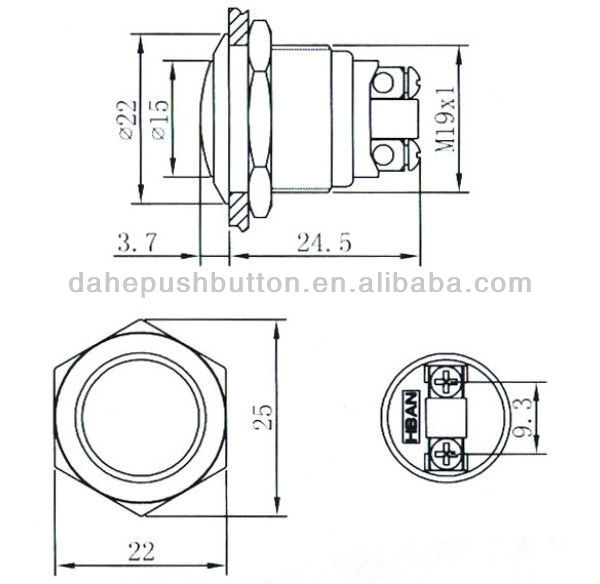

1.Mounting Hole Size:Φ19mm
2. Switch Rating :2A / 36VDC
3. Contact Configuration:1NO(1NC can be custom made)
4.Operation Type:Momentary
5.TheFront Shape:Domed
6.The Crust Meterial:Stainelss steel,Nickel-plated brass
7.Protection Degree:IP65,IK09

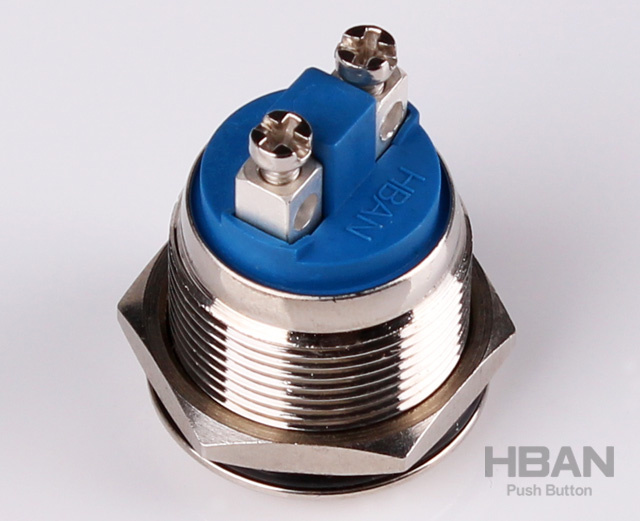

8.Terminal Type: Screw Terminal
Packaging Details:
We pack 40 pieces diameter 19mm metal push button switches into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 16 boxes / 20 boxes into a 5 layers corrugated export carton.
About Us:
Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates. Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.
We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.
Mobile:+8613868768789
Item No. | HBGQ19B-10/N | HBGQ19B-10/S |
| Specification | 1NO Momentary | 1NO Momentary |
| Item No. | HBGQ19B-01/N | HBGQ19B-01/S |
| Specification | 1NC Momentary | 1NC Momentary |
| Front Head Shape | | Domed |
| Terminal Type | | Screw Terminal |
| Switch Type | | X(Two terminal breakpoints slow moving contact) |
| Switch Specification | 2A/36VDC |
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000V AC |
| Operating Temperature | -20degree~+55degree |
| Machanical Life | >1,000,000 times |
| Electrical Life | >200,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5~14Nm |
| Operating Pressure | About 4N |
| Operating Stroke | About 1.8mm |
| Protection Degree | IP65,IK09 |
| Material | Contact | Sliver Alloy |
| Button | Mirror Surface |
| Case | Nickel-plated Brass | Stainless Steel |
| Base | PBT |
| RoHS | Can be made to order |
